Product Overview
The Rexroth DR 6 DP2-54/210YM (Material Number R900455316) is a direct-operated pressure reducing valve designed for precise secondary circuit pressure regulation in industrial hydraulic systems. Manufactured by Bosch Rexroth, this valve belongs to the proven DR 6 series and maintains a constant reduced outlet pressure regardless of fluctuations in the primary (inlet) pressure or changes in flow demand. The valve operates on a spool-and-spring principle: the adjustment element sets the spring preload, and the control spool modulates to throttle the inlet flow, holding the outlet pressure at the set value. When the outlet pressure exceeds the setpoint, the spool shifts to relieve excess pressure to the tank port, providing integrated pressure limitation. This makes the DR 6 DP2-54/210YM a reliable, compact solution for protecting downstream components and ensuring stable actuator performance in demanding industrial circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Control Valve (Pressure Reducing Valve) |
| Model Designation | DR 6 DP2-54/210YM |
| Material Number | R900455316 |
| Series | DR 6 (Size 6, direct-operated) |
| Operating Pressure | Up to 210 bar (secondary pressure setting range per model code) |
| Adjustment Type | Mechanical adjustment element (set screw / hex socket) |
| Mounting & Connection | Subplate mounting, ISO 4401 / DIN 24340 Size 6 interface |
| Hydraulic Fluid | Mineral oil based hydraulic fluids (HL, HLP per DIN 51524) |
Engineering Features & Advantages
- Precision Performance: Direct-operated control spool delivers accurate, repeatable secondary pressure regulation with minimal hysteresis and fast response to load changes.
- Integrated Pressure Limitation: Internal relief function protects the secondary circuit from overpressure, eliminating the need for additional safety valves in many configurations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened spool and sleeve for long service life and contamination tolerance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth DR 6 series standards, ensuring drop-in installation without modification.
- Compact Subplate Design: Size 6 footprint minimizes manifold space requirements while supporting full rated flow capacity.
Typical Industrial Applications
The Rexroth DR 6 DP2-54/210YM is widely deployed in plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial power units where stable reduced pressure is required for clamping, pilot, or actuator circuits. It is equally suited to construction and marine hydraulic systems demanding dependable pressure control in continuous-duty environments.
PRODUCT IMAGES

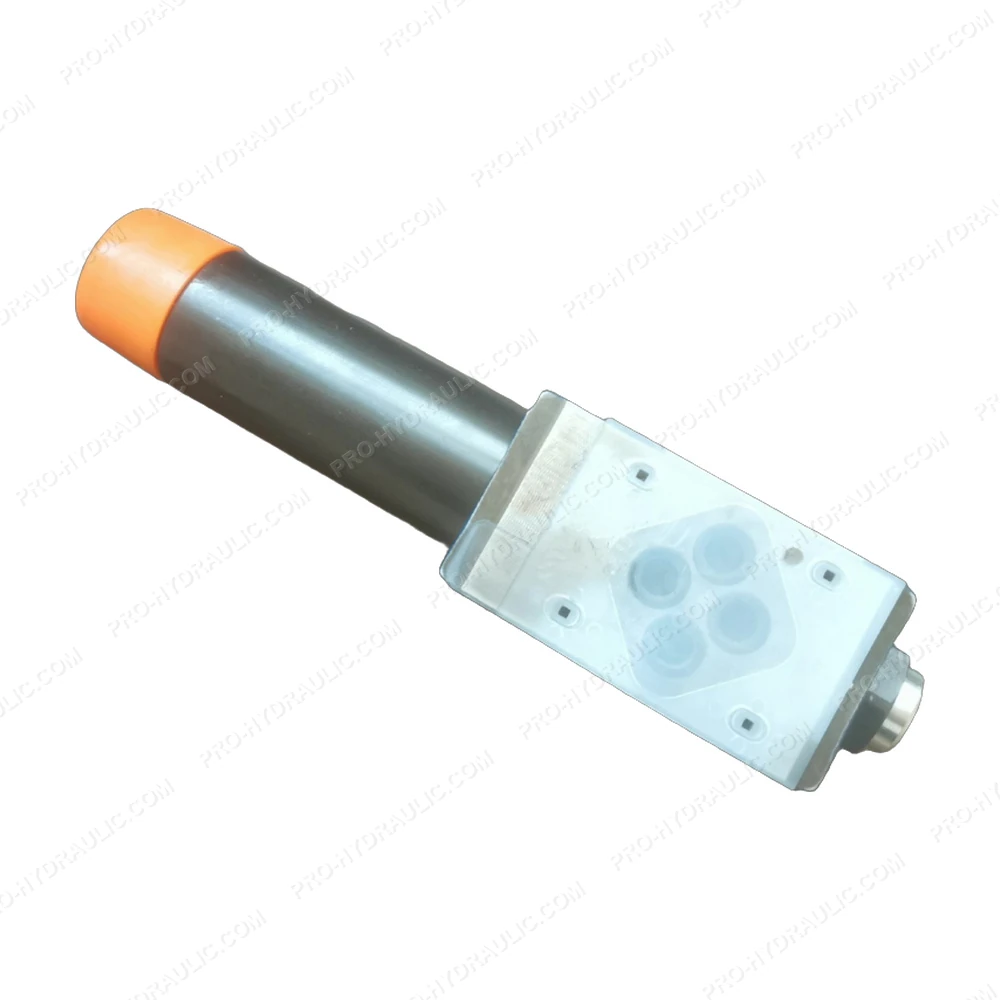

REXROTH DR 6 DP2-54/210YM / R900455316 Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DR 6 DP2-54/210YM / R900455316 Pressure Relief Valve. This Germany-made hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
