Product Overview
The Rexroth DRE20-61/200YG24K4M (Material Number R901240660) is a pilot-operated proportional pressure reducing valve designed for precise, infinitely variable pressure control in industrial hydraulic systems. Part of the Rexroth DRE series, this valve reduces a higher inlet pressure to a regulated, electrically proportional outlet pressure by means of a proportional solenoid acting on a pilot stage, which in turn controls the main spool. The integrated proportional solenoid converts an electrical current signal into a proportional mechanical force, enabling stepless pressure adjustment in direct relation to the command signal. This valve is engineered for demanding closed-loop and open-loop pressure regulation tasks where accurate, repeatable pressure reduction is essential, and it serves as a critical control element in manifold and inline hydraulic circuits across heavy industry.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Reducing Valve (Pilot-Operated) |
| Model Designation | DRE20-61/200YG24K4M |
| Material Number | R901240660 |
| Size / Nominal Diameter | NG20 (Size 20) |
| Pressure Adjustment Range | Up to 200 bar (secondary pressure setting) |
| Actuation | Proportional Solenoid, 24 V DC |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per size 20) |
| Mounting & Connection | Subplate Mounting, ISO 5781 / Rexroth Standard Interface |
| Control Characteristic | Proportional pressure vs. command current (stepless) |
Engineering Features & Advantages
- Precision Proportional Control: The proportional solenoid and pilot stage deliver infinitely variable pressure reduction with high resolution and excellent repeatability, allowing accurate regulation of secondary pressure in response to analog command signals.
- Pilot-Operated Stability: The two-stage pilot-operated design maintains stable outlet pressure independent of flow fluctuations, ensuring consistent performance across varying load conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust spool and sleeve construction resistant to contamination and wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, including the R901240660 material number, ensuring drop-in interchangeability.
- Electrical Flexibility: 24 V DC proportional solenoid compatible with standard industrial amplifier cards and closed-loop control electronics.
Typical Industrial Applications
This Rexroth proportional pressure reducing valve is widely deployed in plastic injection molding machines for precise injection and clamping pressure control,
PRODUCT IMAGES

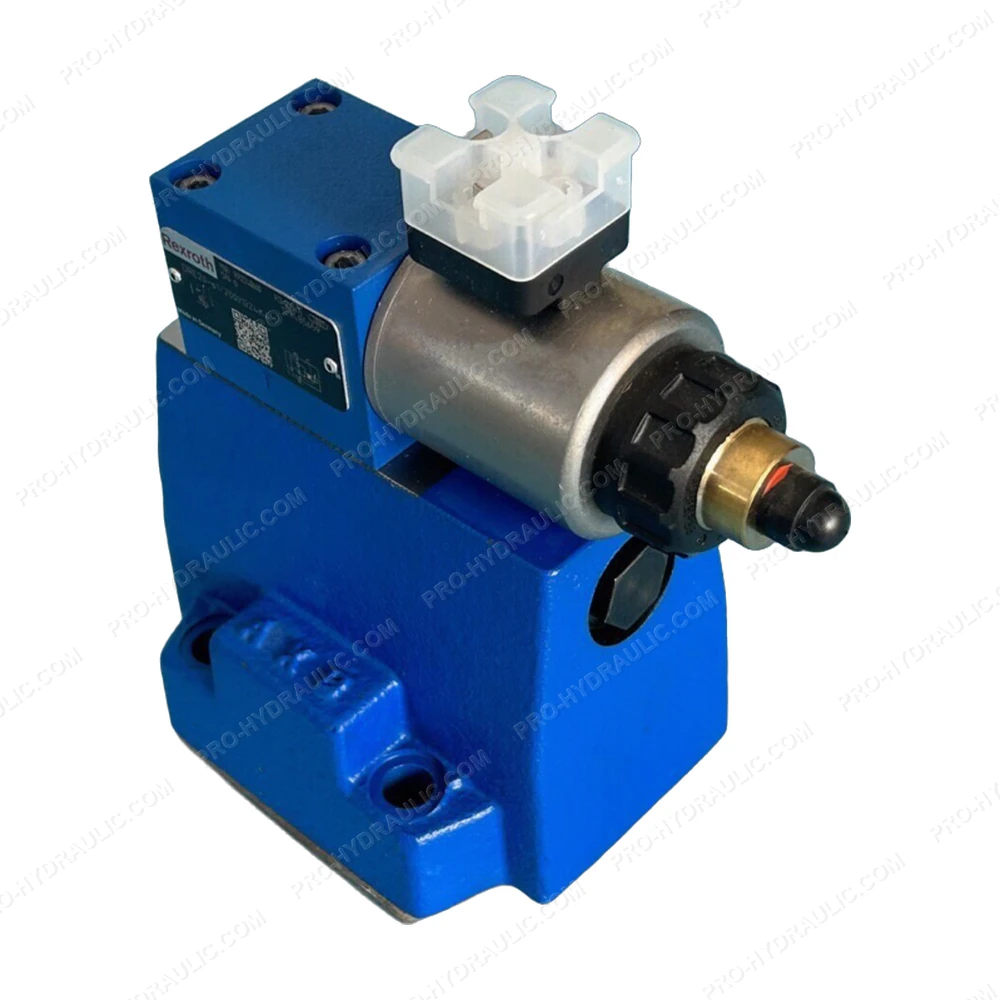

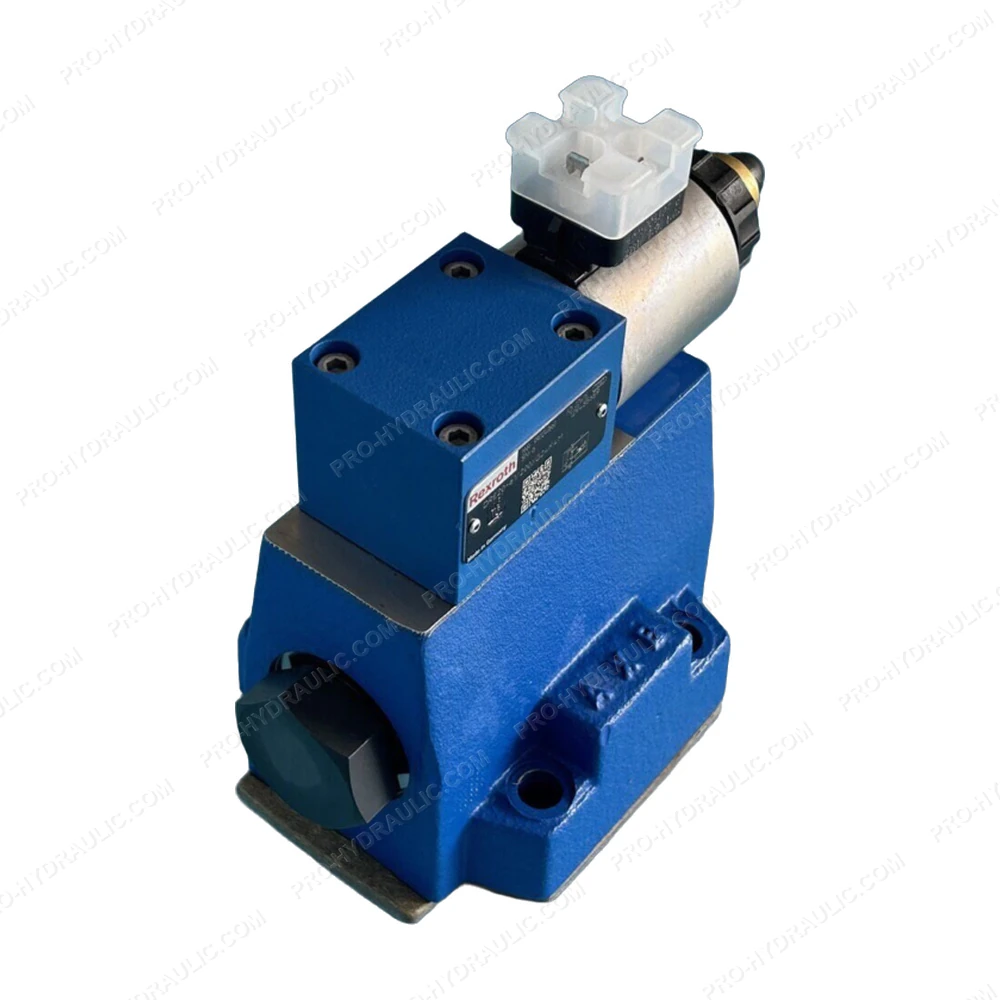

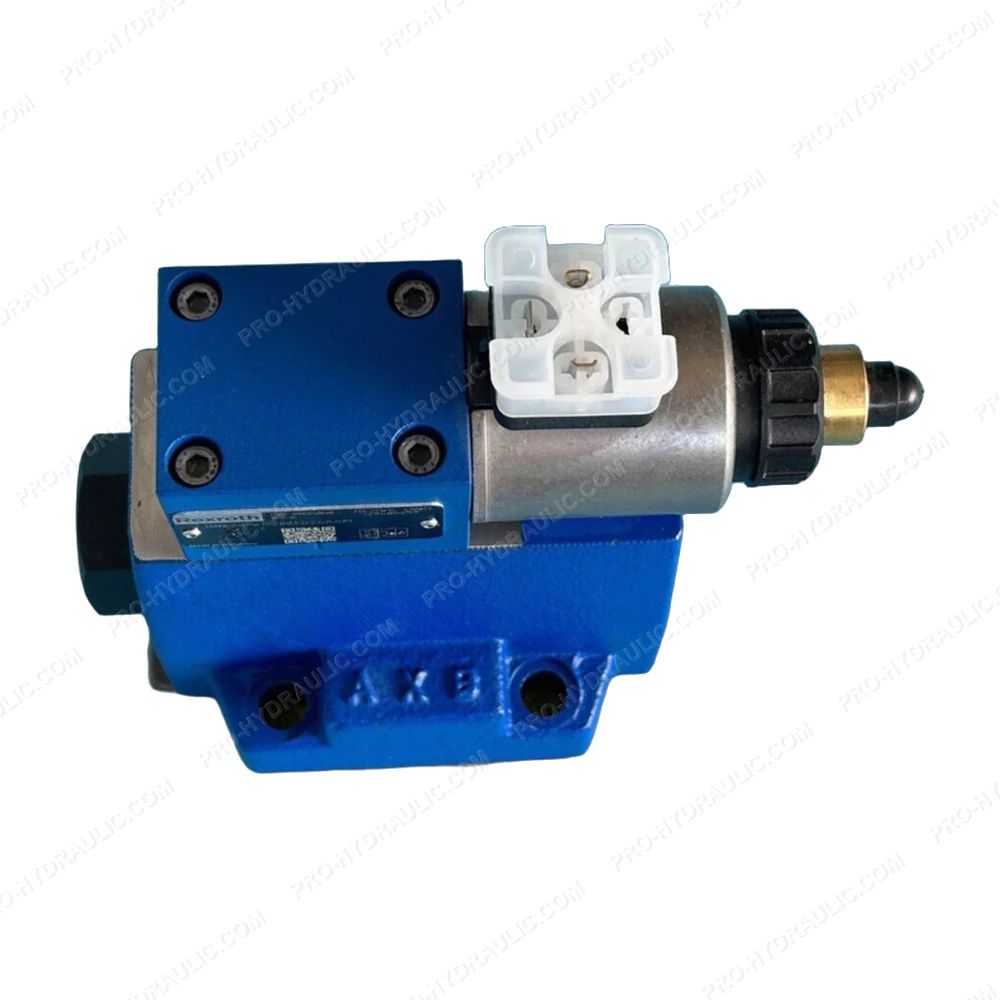

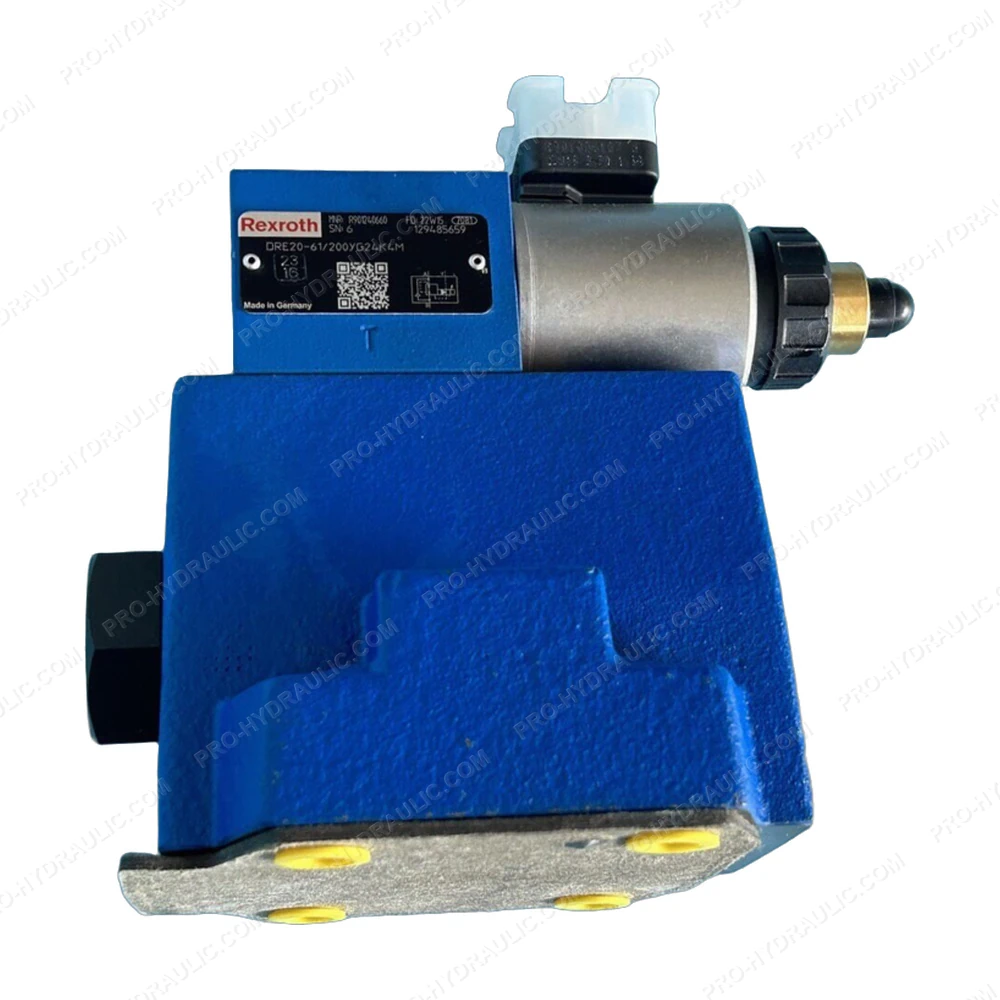

REXROTH DRE20-61/200YG24K4M / R901240660 Proportional Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DRE20-61/200YG24K4M / R901240660 Pilot Operated Pressure Relief Valve. This German-made hydraulic component features a pilot-operated design, delivering precise pressure control and reliable system protection for heavy-duty industrial applications.
