Product Overview
The Rexroth DREB6X-11/310MG24-25Z4M proportional pressure reducing valve, paired with the VT-VPCD-1-18/V0/1-0-1 amplifier module, is a high-precision electro-hydraulic control component engineered for stepless pressure regulation in industrial hydraulic systems. This pilot-operated, normally open pressure reducing valve operates on a proportional solenoid principle, where the solenoid force acts directly against a compression spring to establish a pressure balance at the control spool. The integrated VT-VPCD-1-18/V0/1-0-1 amplifier card provides closed-loop control of the solenoid current, ensuring precise, repeatable pressure modulation proportional to the electrical command signal. The valve is designed for subplate mounting in accordance with ISO 4401 and CETOP standards, making it a direct replacement for original Rexroth components in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Reducing Valve (Pilot-Operated) |
| Model Designation | DREB6X-11/310MG24-25Z4M / VT-VPCD-1-18/V0/1-0-1 |
| Operating Pressure | Up to 310 bar (rated pressure reduction range) |
| Nominal Flow Rate | Up to 25 L/min (size 6 nominal flow) |
| Solenoid Voltage | 24 V DC (MG24 designation) |

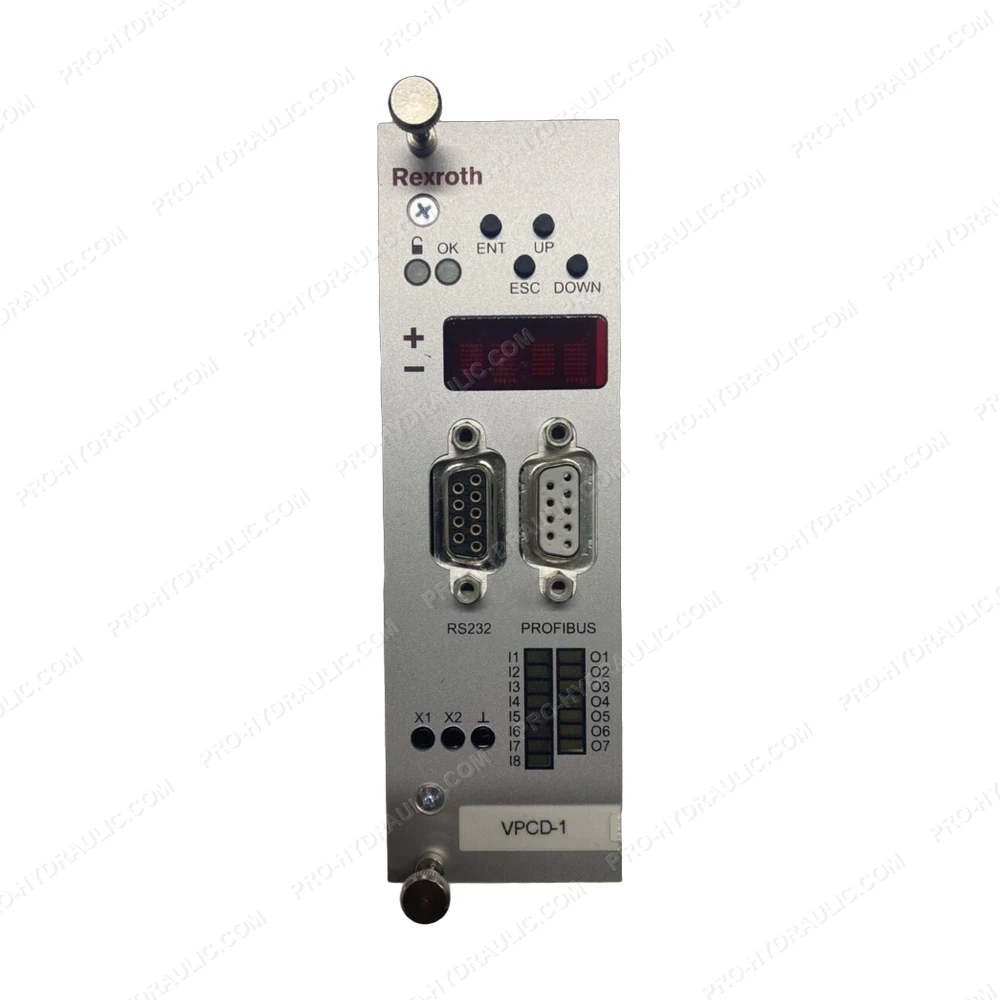

| Control Electronics | VT-VPCD-1-18/V0/1-0-1 proportional amplifier card |
| Mounting & Connection | Subplate mounting per ISO 4401 / CETOP 3, size 6 |
| Adjustment Type | Proportional solenoid with integrated position feedback |
| Seal Material | NBR (standard industrial hydraulic fluid compatibility) |
Engineering Features & Advantages
- Precision Proportional Control: The valve spool position is continuously modulated by the proportional solenoid, enabling stepless pressure adjustment with high resolution and minimal hysteresis, directly controlled by the VT-VPCD amplifier card for closed-loop accuracy.
- Integrated Amplifier Electronics: The VT-VPCD-1-18/V0/1-0-1 module provides stable current regulation, ramp generation, and optional feedback interfacing, ensuring consistent valve performance regardless of temperature fluctuations or supply voltage variations.
- Pilot-Operated Stability: The pilot stage amplifies the solenoid force to control the main spool, delivering smooth pressure reduction even under high flow and pressure conditions, with excellent dynamic response for demanding closed-loop applications.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The valve is designed for subplate mounting in accordance with ISO 4401 and CETOP standards, making it a direct replacement for original Rexroth components in demanding industrial environments.
PRODUCT IMAGES

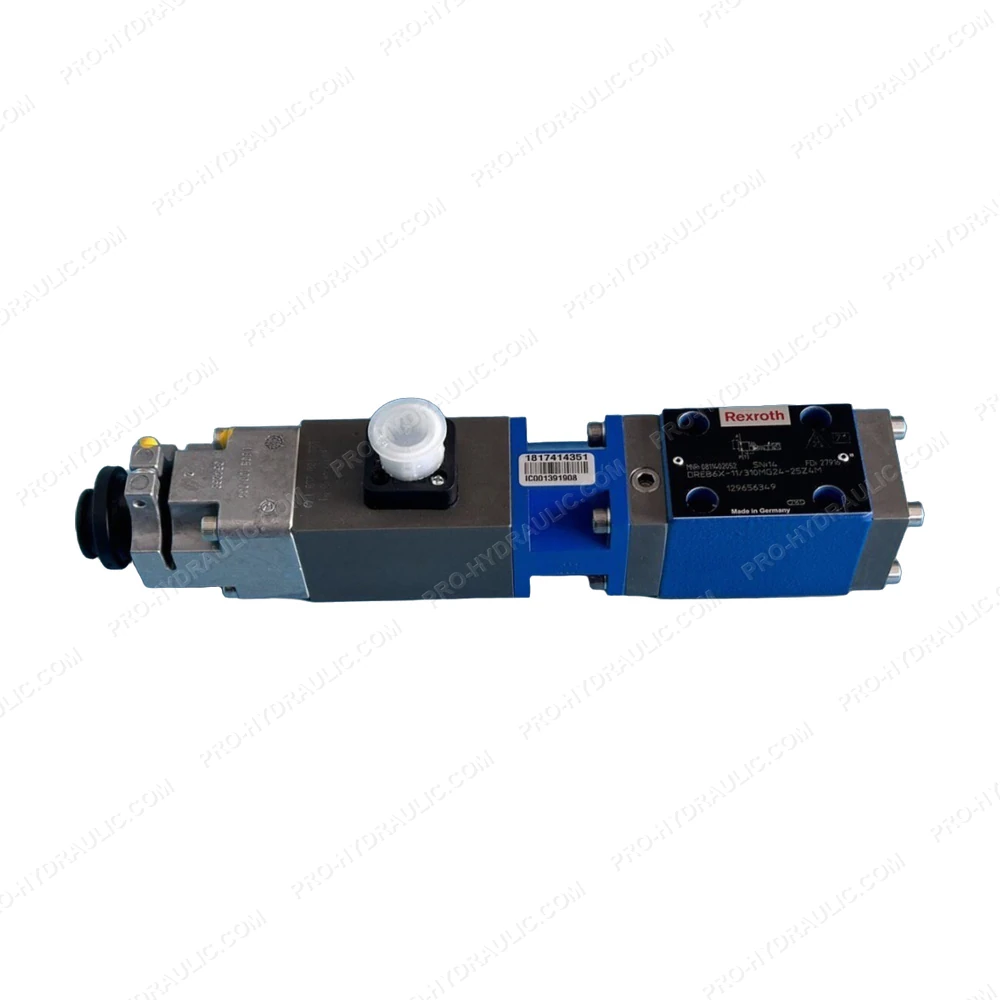

REXROTH DREB6X-11/310MG24-25Z4M / VT-VPCD-1-18/V0/1-0-1 Proportional Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DREB6X-11/310MG24-25Z4M / VT-VPCD-1-18/V0/1-0-1 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
