Product Overview
The Rexroth H-4WEH 25 J68/6EG24N9ETK4/B10D3 (Material No. R900932940) is a high-performance electro-hydraulic directional spool valve from the renowned 4WEH series, engineered for demanding industrial hydraulic systems requiring precise flow direction control under high pressure. This valve operates on a two-stage principle: a pilot-operated solenoid valve (size 6) controls the main stage spool (size 25), enabling reliable switching of large flow volumes with minimal electrical power. The “J68” spool configuration provides a specific flow path characteristic, while the “EG24” designation indicates a 24 V DC solenoid with emergency manual override. The “N9” signifies the standard manual override function, and the “ETK4” denotes the electrical connection type (terminal box with indicator light). The “B10D3” suffix specifies the pilot supply and drain configuration. This valve is a direct-fit replacement for OEM Rexroth components, ensuring seamless integration into existing hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Hydraulic Directional Spool Valve (Pilot-Operated) |
| Model Designation | H-4WEH 25 J68/6EG24N9ETK4/B10D3 |
| Material Number | R900932940 |
| Size / Nominal Diameter | NG25 (Main Stage), NG6 (Pilot Stage) |
| Spool Type | Type J68 (Specific flow path, e.g., closed center or tandem center) |
| Operating Pressure | Up to 350 bar (Main Stage), 315 bar (Pilot Stage) |
| Nominal Flow Rate | Up to 450 L/min (depending on spool position and pressure differential) |
| Solenoid Voltage | 24 V DC (EG24) |
| Electrical Connection | Terminal Box with Indicator Light (ETK4) |
| Manual Override | Standard Manual Override (N9) |
| Pilot Supply / Drain | Internal Pilot Supply, External Drain (B10D3 configuration) |
Engineering Features & Advantages
- Precision Performance: The electro-hydraulic directional spool valve (pilot-operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 450 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
R900932940) is a high-performance electro-hydraulic directional spool valve from the renowned 4WEH series, engineered for demanding industrial hydraulic systems requiring precise flow direction control under high pressure.
PRODUCT IMAGES

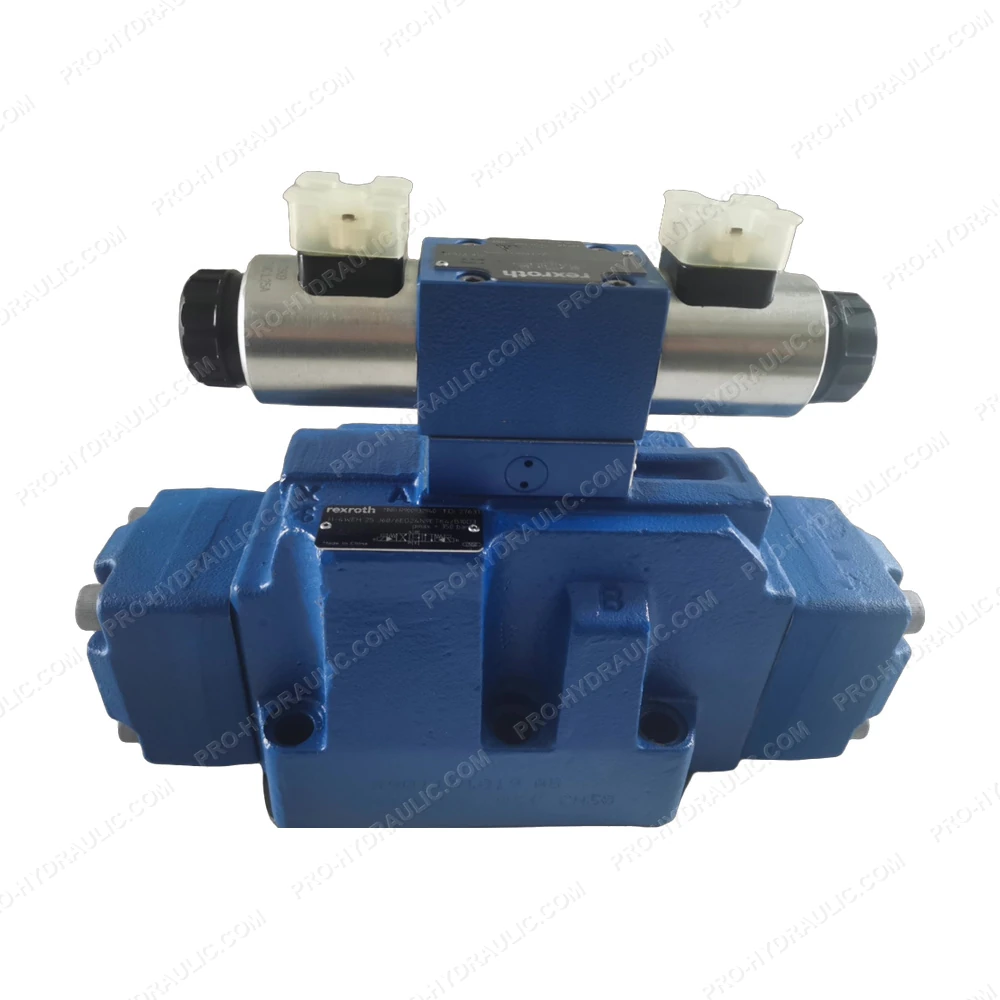

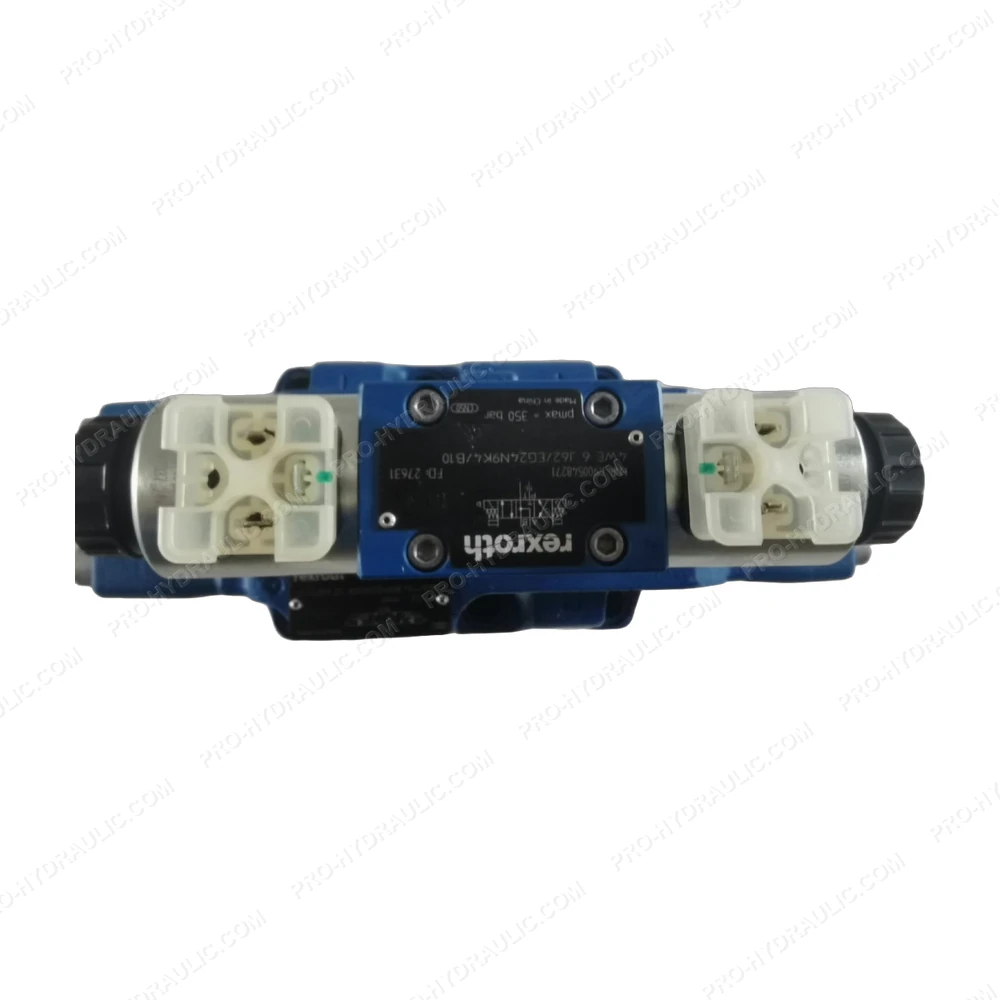

REXROTH H-4WEH 25 J68/6EG24N9ETK4/B10D3 / R900932940 Electro-Hydraulic Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH H-4WEH 25 J68/6EG24N9ETK4/B10D3 / R900932940 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
