Product Overview
The Rexroth H-4WEH25J68/6EG24ETS2K4/B10D3 (material number R901205282) is a size 25 electro-hydraulic directional spool valve from the proven 4WEH series, engineered for pilot-operated control of start, stop, and direction of fluid flow in high-capacity industrial hydraulic systems. The main stage is actuated by a pilot directional valve that is shifted by a wet-pin DC solenoid, allowing the valve to switch large flows at high operating pressures with minimal electrical input. The “J” spool configuration provides a defined mid-position function, while the integrated spring return and detent arrangement ensure predictable spool positioning upon de-energization. With a nominal flow capacity of approximately 450 L/min and a maximum working pressure of 350 bar, this valve is a direct-fit, OEM-equivalent component for demanding manifold and subplate installations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Hydraulic Directional Spool Valve (Pilot-Operated) |
| Model Designation | H-4WEH25J68/6EG24ETS2K4/B10D3 |
| Material Number | R901205282 |
| Nominal Size | NG25 (Size 25) |
| Spool Type | Type J (defined mid-position, closed-center characteristic) |
| Actuation | Electro-hydraulic, wet-pin DC solenoid, 24 V DC |
| Maximum Operating Pressure | Up to 350 bar (main stage) |
| Nominal Flow Rate | Approx. 450 L/min at rated pressure differential |
| Mounting & Connection | Subplate mounting per ISO 4401 / DIN 24340, NG25 interface |
| Seal Material | NBR (B10 designation), suitable for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve pair delivers accurate flow direction control with minimal internal leakage and consistent response across the full pressure range.
- Pilot-Operated High-Flow Capability: The two-stage design combines a low-power solenoid pilot with a hydraulically actuated main spool, enabling reliable switching of large flows without oversized electrical components.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The Rexroth H-4WEH25J68/6EG24ETS2K4/B10D3 (material number R901205282) is a size 25 electro-hydraulic directional spool valve from the proven 4WEH series, engineered for pilot-operated control of start, stop, and direction of fluid flow in high-capacity industrial hydraulic systems.
PRODUCT IMAGES

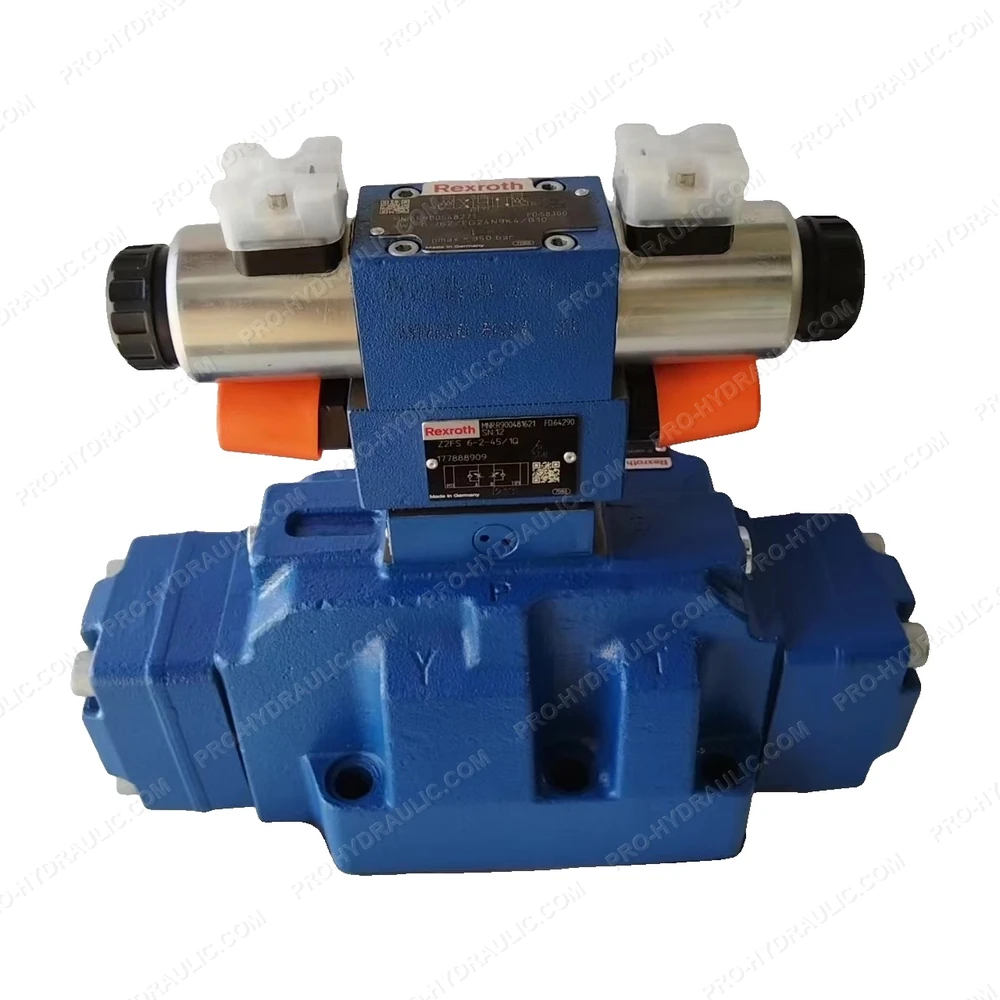

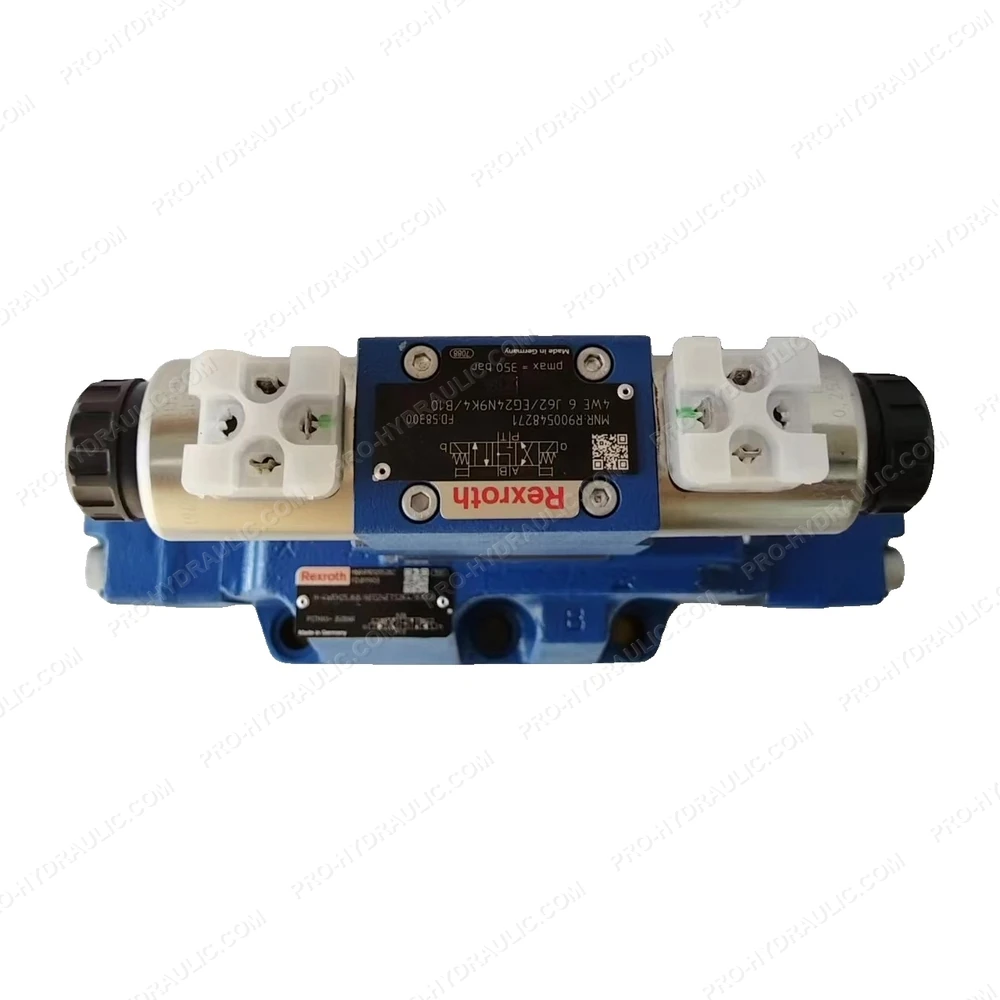

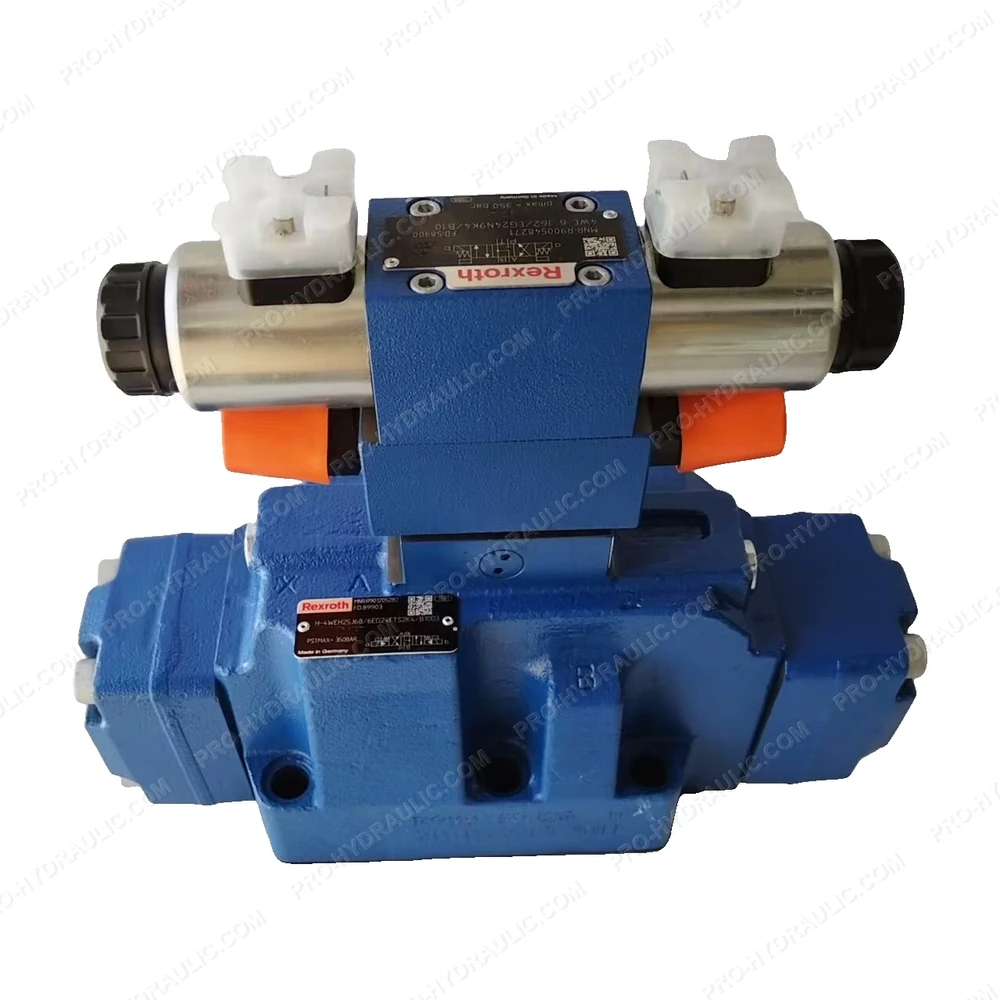

REXROTH H-4WEH25J68/6EG24ETS2K4/B10D3 / R901205282 Electro-Hydraulic Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH H-4WEH25J68/6EG24ETS2K4/B10D3 / R901205282 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
