The REXROTH HSZ 06 A217-3X/05-AS100-BS100M00 / R900555867 is a heavy-duty industrial modular valve engineered for precise flow control and pressure regulation in hydraulic systems. Designed for sandwich plate mounting, this valve integrates seamlessly into modular hydraulic circuits, providing reliable performance under demanding operating conditions.
REXROTH HSZ 06 A217-3X/05-AS100-BS100M00 / R900555867 Technical Specifications
| Parameter | Specification |
|---|---|
| Component Type | Modular Flow Control Valve |
| Nominal Size | NG6 (CETOP 3) |
| Series | 3X |
| Adjustment Type | Manual, with scale |
| Flow Range | Up to 100 L/min |
| Maximum Pressure | 315 bar |
| Mounting | Sandwich plate, ISO 4401 |
| Port Connections | Subplate mounting |
| Seal Material | NBR (Buna-N) |
| Operating Temperature | -20 °C to +80 °C |
Key Engineering Features
- Precision flow control via manual adjustment with integrated scale for repeatable settings.
- Modular design allows direct sandwich mounting between directional valve and subplate.
- Robust construction with high-grade materials for long service life in harsh environments.
- Compatible with mineral oil and synthetic hydraulic fluids.
- Compact footprint reduces installation space in manifold assemblies.
Industrial Applications
- Machine tools and metalworking equipment.
- Injection molding and die-casting machines.
- Presses and forming machinery.
- Material handling and lifting systems.
- General industrial hydraulic power units.
For technical inquiries, dimensional drawings, or replacement support for REXROTH HSZ 06 A217-3X/05-AS100-BS100M00 / R900555867, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

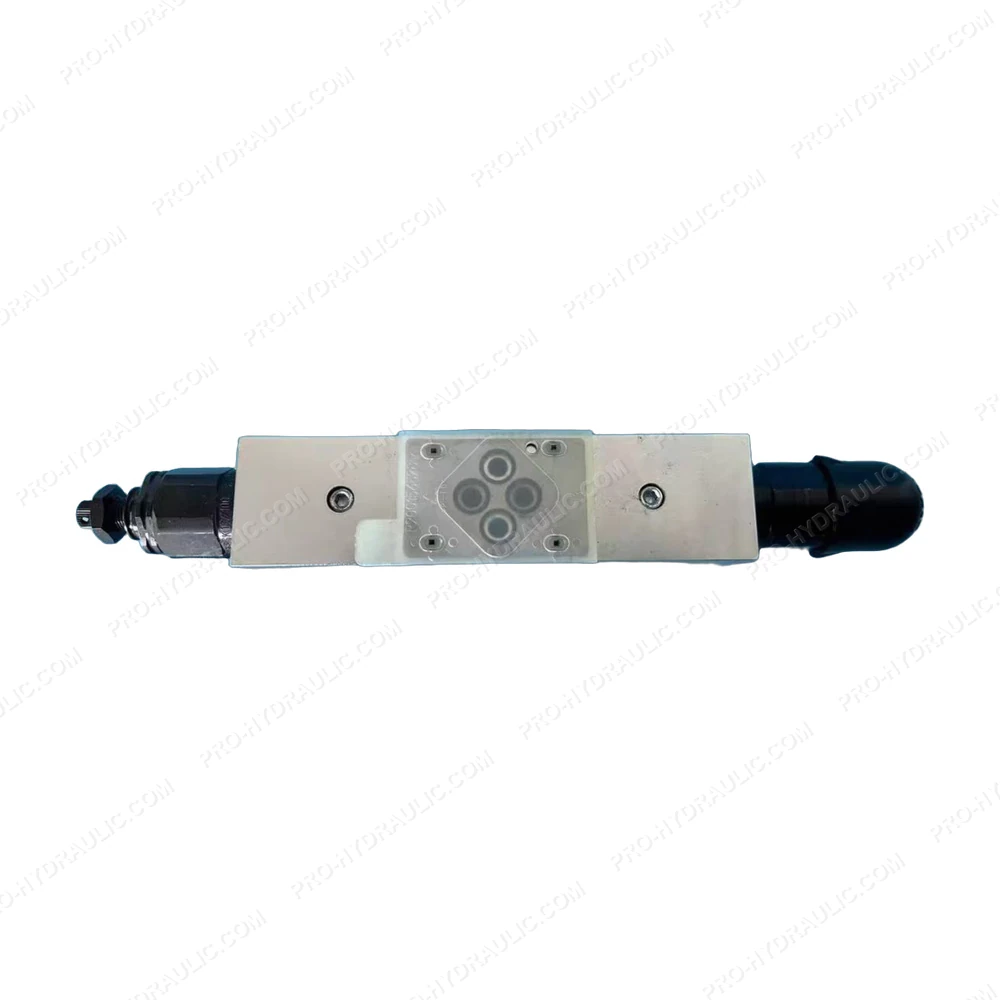

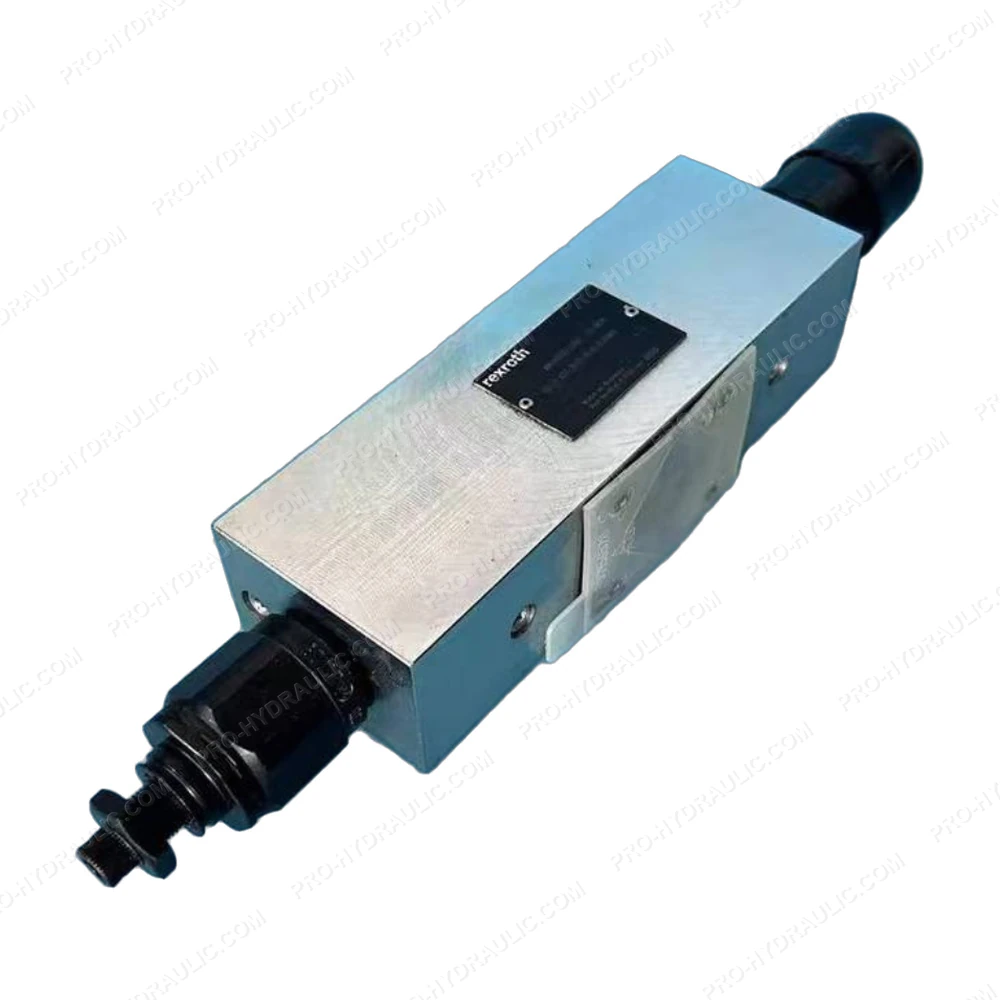

REXROTH HSZ 06 A217-3X/05-AS100-BS100M00 / R900555867 Modular Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH HSZ 06 A217-3X/05-AS100-BS100M00 / R900555867 Modular Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
