Product Overview
The Rexroth IV3/2S (Part No. 5352600000) is a pneumatically actuated 3/2-way directional control valve engineered for precise switching and routing of compressed air in industrial process circuits. As part of the Rexroth IV series, this valve utilizes a balanced spool design that ensures consistent actuation force and minimal pressure drop across the working ports. Its 3/2 configuration provides one pressure inlet, one working outlet, and one exhaust port, making it ideal for single-acting cylinder control, pilot signal switching, and safety-related venting functions. The valve is designed for panel or manifold mounting and delivers reliable, repeatable performance in demanding automation environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (3/2-Way) |
| Model Designation | IV3/2S / 5352600000 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Sub-base or Manifold Mount) |
| Actuation Type | Pneumatic Pilot Actuated |
| Flow Rate | Optimized for nominal flow up to 800 l/min |
| Seal Material | NBR / Polyurethane (Standard Industrial Air Service) |
| Port Size | G 1/4 (Standard ISO 228) |
Engineering Features & Advantages
- Precision Spool Metering: The balanced 3/2 spool design ensures accurate flow control and rapid response times, minimizing air consumption during switching cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust housing and wear-resistant seals that extend service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in installation without modification.
- Low Leakage Design: Precision-lapped spool and bore clearances reduce internal leakage, maintaining system pressure integrity and energy efficiency.
- Versatile Actuation: Pneumatic pilot operation allows for safe, remote control in hazardous or hard-to-reach installations.
Typical Industrial Applications
This valve is commonly deployed in plastic injection molding machines for mold opening/closing circuits, metallurgical presses for clamping and ejection sequencing, packaging and assembly automation for single-acting actuator control, and general pneumatic process systems requiring reliable 3/2-way directional switching. It is also suitable for safety venting and pilot signal isolation in marine and offshore hydraulic-pneumatic control panels.
PRODUCT IMAGES

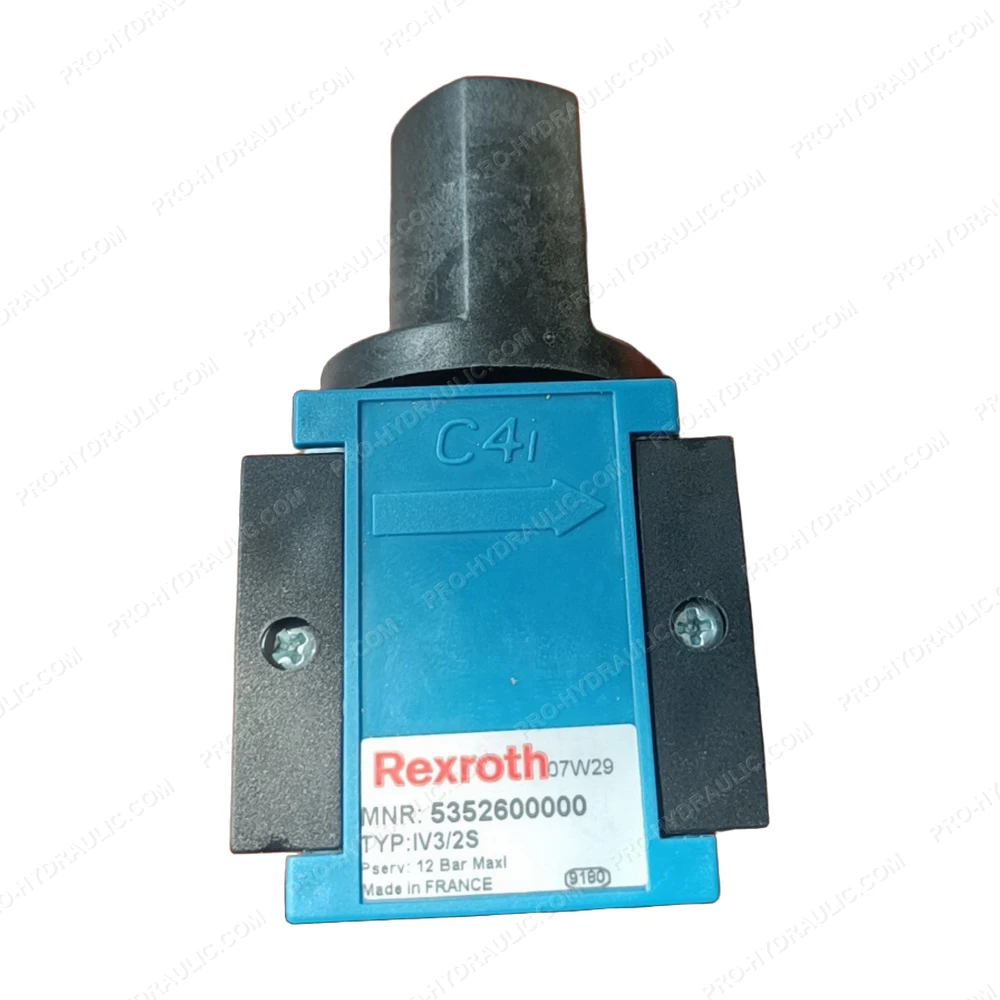

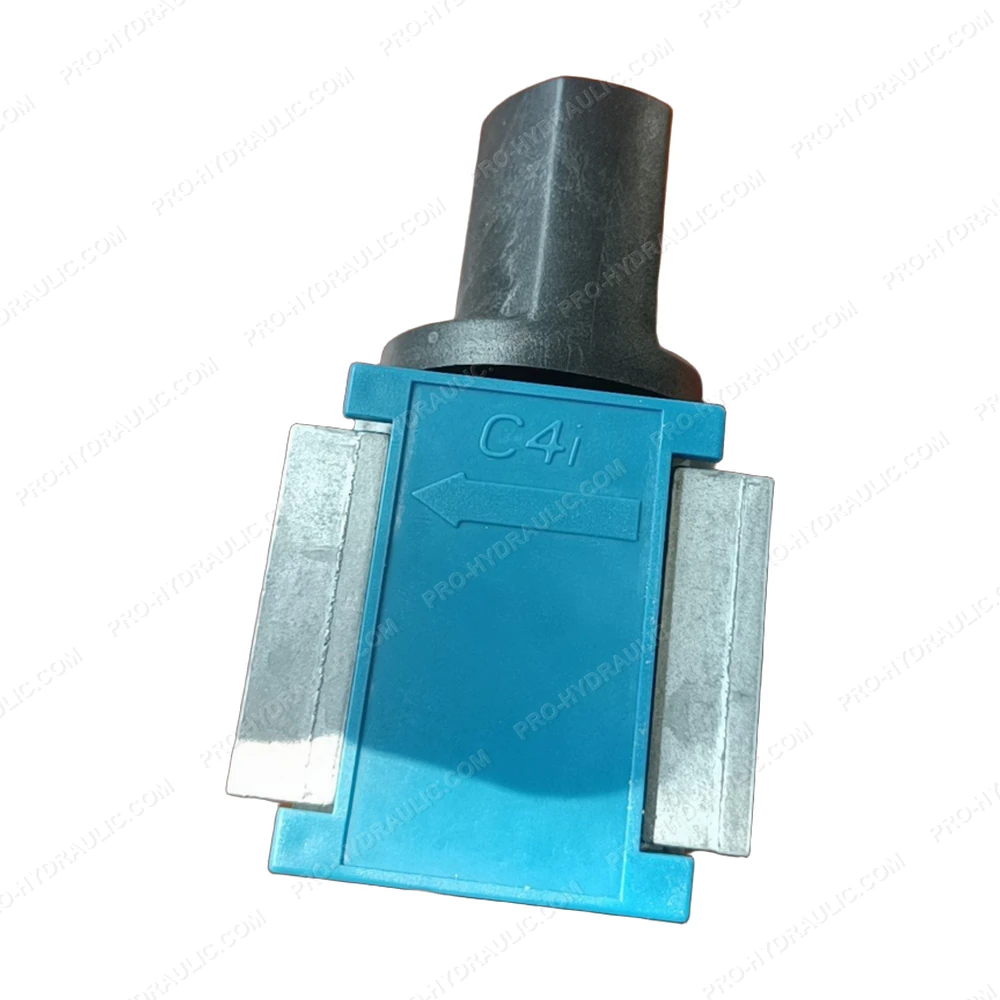

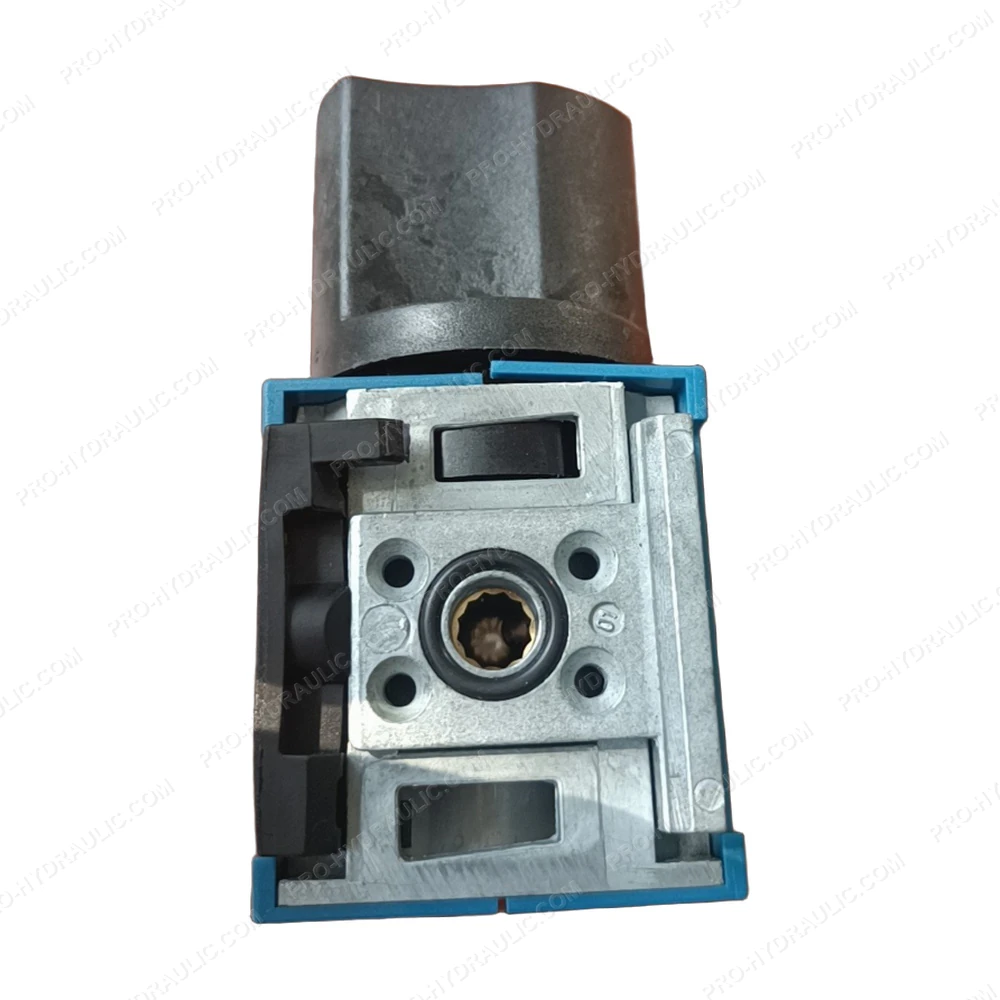

Rexroth IV3/2S / 5352600000 Pneumatic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth IV3/2S / 5352600000 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 3/2-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
