Product Overview
The Rexroth LC 32 A20D7X (Material Number: R900912589) is a high-performance two-way logic cartridge valve designed for advanced flow control and pressure regulation within demanding industrial hydraulic systems. As a core component of Rexroth’s modular valve family, this logic cartridge operates on a poppet-type, seat-sealing principle, enabling zero-leakage blocking and precise directional control when integrated into a custom manifold block. The LC 32 A20D7X is engineered for high flow capacity and fast response, functioning as a pilot-operated main stage that can be combined with cover plates and pilot valves to achieve directional, pressure, or flow control functions. Its robust construction and precision-machined seating surfaces make it an ideal solution for systems requiring reliable load holding, rapid decompression, and efficient power transmission in high-pressure industrial circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Logic Cartridge Valve (Two-Way Flow Control) |
| Model Designation | LC 32 A20D7X / R900912589 |
| Nominal Size (NG) | NG32 (SAE 1.1/4 / ISO 32 interface) |
| Operating Pressure | Up to 420 bar (6000 psi) rated, standard industrial grade |
| Flow Capacity | Up to 400 L/min (dependent on circuit and pressure differential) |
| Mounting & Connection | Standard ISO 7368 / DIN 24342 cartridge cavity, manifold mounting |
| Sealing Principle | Poppet-type seat sealing, zero leakage when closed |
| Control Type | Pilot-operated, external pilot supply via cover plate |
Engineering Features & Advantages
- Precision Performance: The poppet-type seat design ensures zero-leakage blocking in the closed position, providing reliable load holding and preventing drift in high-pressure circuits. Fast opening and closing response enables precise flow control and rapid decompression sequences.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the LC 32 A20D7X features hardened, precision-ground seating surfaces and a robust cartridge body that withstands high pressure cycles, contamination, and thermal stress.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including the standard ISO 7368 / DIN 24342 cavity, ensuring drop-in replacement without manifold modification.
- Modular System Integration: Designed to be combined with Rexroth cover plates and pilot valves to create customized directional, pressure, or flow control functions, offering maximum flexibility in manifold design.
- High Flow Efficiency: Optimized flow paths minimize pressure drop and energy loss, contributing to overall system efficiency and reduced heat generation.
Typical Industrial Applications
This logic cartridge valve is widely used in
PRODUCT IMAGES

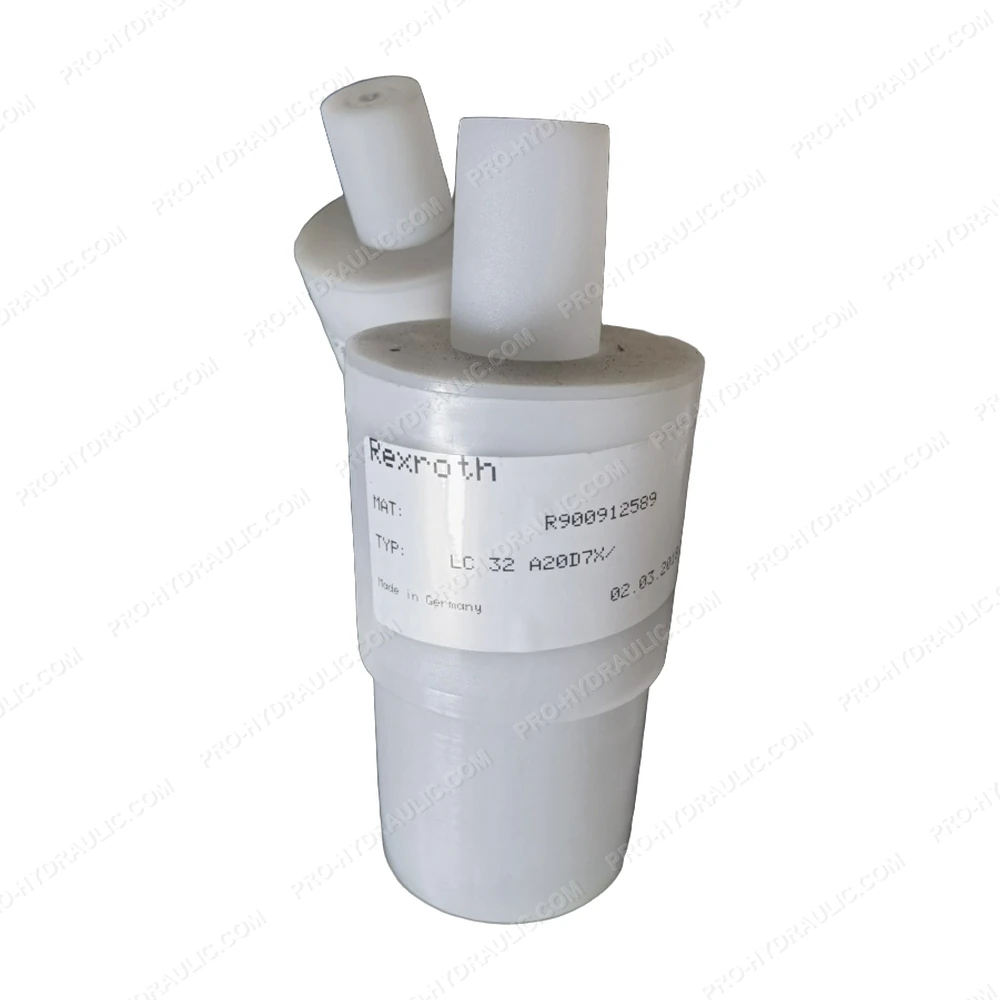

Rexroth LC 32 A20D7X/ / R900912589 Logic Cartridge Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH LC 32 A20D7X/ / R900912589 Check Valve. This German-made hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
