Product Overview
The Rexroth LC 50 A05E70/ (Material Number R900938022) is a two-stage logic cartridge valve engineered for high-capacity flow control in industrial hydraulic systems. As a normally closed, pilot-operated cartridge element, it functions as a pressure or directional control insert that mounts directly into a standardized cavity block, eliminating the need for separate subplates and reducing manifold complexity. The LC series is a proven modular building block within Rexroth’s logic valve family, designed to handle high flow rates with minimal pressure drop while maintaining precise spool positioning through pilot pressure actuation. This cartridge valve serves as the core control element in manifold-based circuits, enabling functions such as unloading, sequencing, pressure holding, and directional flow switching in high-pressure industrial power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Logic Cartridge Valve (Flow Control & Modular Valve) |
| Model Designation | LC 50 A05E70/ |
| Material Number | R900938022 |
| Nominal Size | NG50 (Size 50 cartridge cavity) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Rexroth LC series specification) |
| Actuation Type | Pilot-operated, normally closed logic element |
| Mounting & Connection | Standard ISO / Manufacturer Interface — slip-in cartridge cavity per Rexroth logic valve standard |
Engineering Features & Advantages
- Precision Performance: Pilot-operated spool design delivers accurate, repeatable flow control and fast response to pilot pressure signals, ensuring stable circuit behavior across varying load conditions.
- High Flow Capacity: The NG50 cavity size accommodates substantial flow volumes with low pressure loss, making it ideal for high-power industrial circuits requiring efficient flow routing.
- Modular Cartridge Architecture: Slip-in design integrates directly into manifold blocks, reducing external piping, minimizing leak points, and simplifying system assembly and maintenance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened spool and seat surfaces for long service life and contamination tolerance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth standards, ensuring drop-in interchangeability with the R900938022 material number.
Typical Industrial Applications
This logic cartridge valve is widely deployed in high-pressure hydraulic systems including plastic injection molding machines, metallurgical presses and rolling mills, construction and marine hydraulic power units, and CNC machine tool clamping and sequencing circuits. Its modular design makes it particularly suited for manifold-based systems requiring compact, high-flow pressure and directional control.
PRODUCT IMAGES

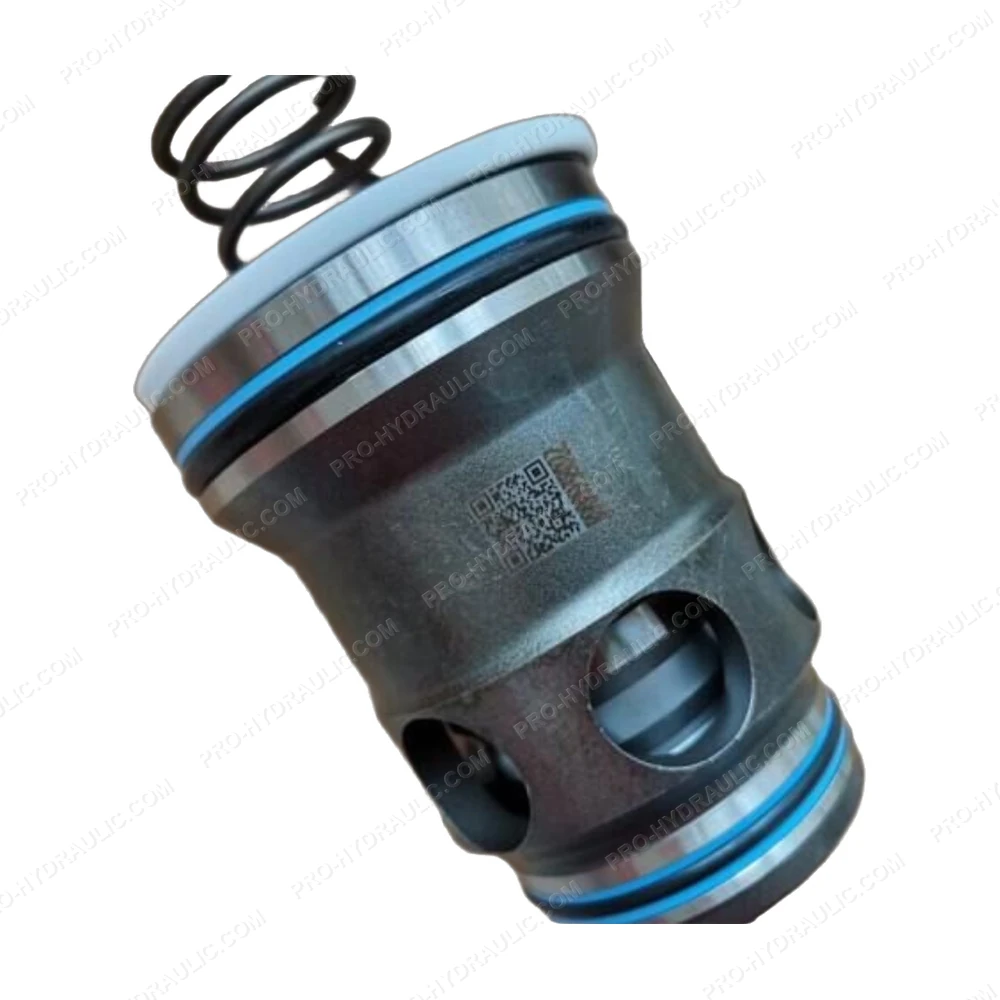

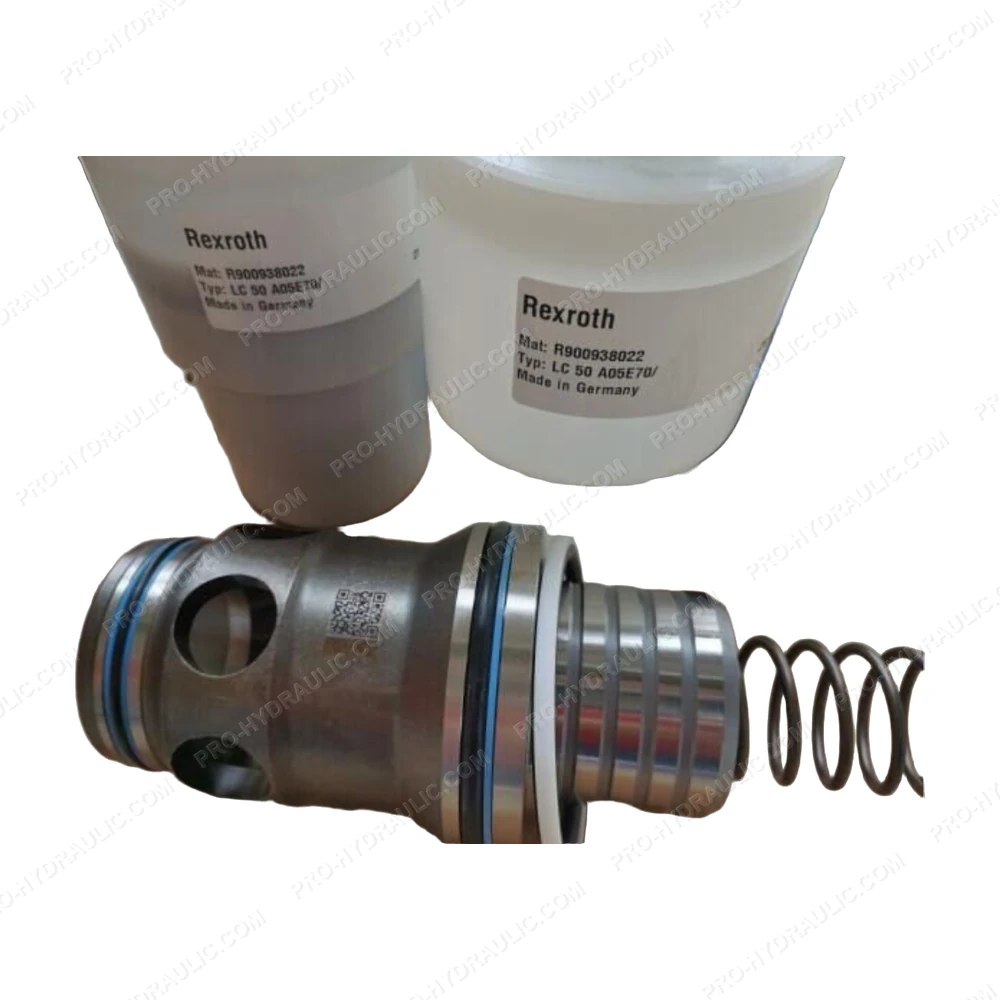

Rexroth LC 50 A05E70/ / R900938022 Logic Cartridge Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH LC 50 A05E70/ / R900938022 Pilot Operated Check Valve. This German-made hydraulic component features a leak-free poppet design, delivering reliable fluid control for heavy-duty industrial systems.
