Product Overview
The Rexroth LC 16 A05E74 (Material Number: R900912566) is a high-performance two-way logic cartridge valve designed for demanding industrial hydraulic systems. As part of the Rexroth LC series, this component functions as a pilot-operated, poppet-type cartridge valve that provides reliable directional control, pressure regulation, and load-holding capabilities when integrated into a manifold block. The LC 16 A05E74 is engineered with a size 16 cavity, offering a nominal flow capacity suitable for medium to high-flow circuits. Its robust poppet and seat design ensures tight shut-off with minimal leakage, making it an ideal choice for applications requiring precise control of actuator movement and secure load holding. The valve operates on a two-stage principle, where a pilot signal controls the main poppet, allowing for smooth, controlled opening and closing with excellent stability. This cartridge valve is a direct-fit replacement for original Rexroth components, ensuring seamless integration into existing manifold systems and maintaining the high standards of reliability and performance expected from Bosch Rexroth hydraulic technology.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Logic Cartridge Valve (Two-Way Directional/Pressure Control) |
| Model Designation | LC 16 A05E74 / R900912566 |
| Operating Pressure | Up to 420 bar (dependent on pilot pressure and circuit design) |
| Nominal Flow Rate | Up to 450 L/min (size 16 cavity) |
| Mounting & Connection | Standard ISO 7368 size 16 cavity, manifold cartridge mounting |
| Control Type | Pilot-operated, poppet-type with area ratio A05 (5:1) |
| Seal Material | NBR (Buna-N) standard, suitable for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The two-stage pilot-operated poppet design ensures fast, stable response and tight shut-off with minimal internal leakage, providing reliable directional control and load holding in high-pressure circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened poppet and seat for extended service life and resistance to contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including the ISO 7368 size 16 cavity, ensuring drop-in installation without manifold modification.
- Versatile Integration: The A05 area ratio allows for efficient pilot pressure reduction, enabling the use of lower pilot pressures while maintaining high main flow capacity.
- Leakage-Free Sealing: Metal-to-metal poppet seat provides excellent sealing characteristics, minimizing energy loss and preventing drift in load-holding applications.
Typical Industrial Applications
This logic cartridge valve is widely used in heavy industrial hydraulic systems, including plastic injection molding machines, metallurgical presses, construction and marine hydraulics, and CNC machine tools. It is particularly suited for manifold-based circuits requiring precise directional control, pressure relief, or load-holding functions, such as in clamping, punching, and lifting operations
PRODUCT IMAGES

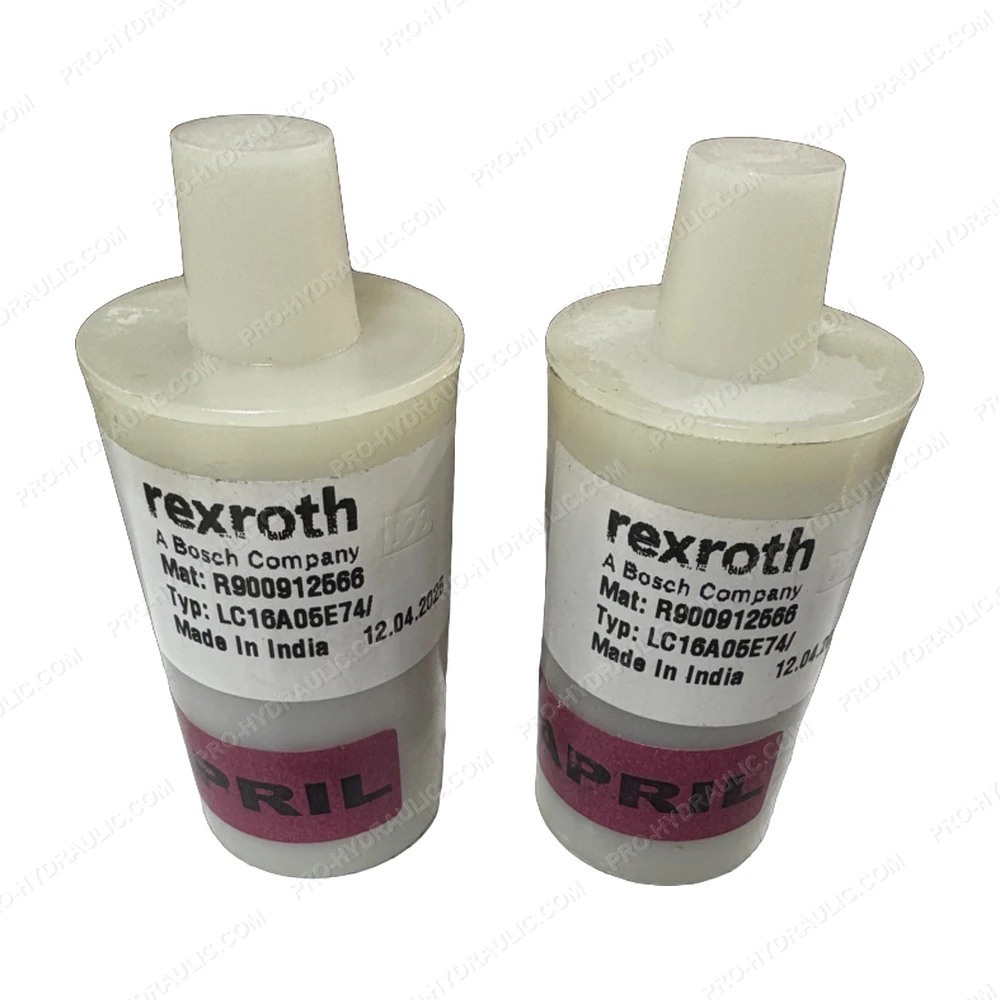

Rexroth LC 16 A05E74 / R900912566 Logic Cartridge Valve
