Product Overview
The Rexroth LC40B05E70 (Material Number R900938002) is a high-performance 2-way cartridge valve engineered for demanding industrial hydraulic systems. As part of the Rexroth LC series, this logic cartridge valve functions as a pressure and directional control element, designed to be installed into a standardized receiving cavity within a manifold block. The LC40B05E70 features a size 40 mounting pattern and utilizes a poppet-type seating design that ensures zero-leakage sealing when closed. This valve is actuated by a separate control cover (not included) which can be configured for pilot pressure, solenoid, or manual operation, making it a versatile building block for complex hydraulic circuits. Its robust construction and precise metering characteristics make it ideal for high-flow, high-pressure applications where reliable switching and load-holding capabilities are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 2-Way Cartridge Valve (Logic Element) |
| Model Designation | LC40B05E70 / R900938002 |
| Size / Mounting Pattern | NG40 (ISO 7368 Standard Cavity) |
| Operating Pressure | Up to 420 bar (6000 psi) maximum working pressure |
| Nominal Flow Rate | Up to 1000 L/min (dependent on control cover and pressure differential) |
| Sealing Principle | Poppet seat, zero-leakage when closed |
| Actuation | Pilot operated via separate control cover (solenoid, manual, or pressure) |
| Mounting & Connection | Slip-in cartridge for manifold block, ISO 7368 cavity |
| Hydraulic Fluid | Mineral oil (HL, HLP) per DIN 51524; other fluids on request |
| Fluid Temperature Range | -20°C to +80°C |
Engineering Features & Advantages
- Precision Performance: The poppet-type design provides tight shut-off with virtually zero internal leakage, ensuring reliable load holding and precise control in high-pressure circuits.
- High Flow Capacity: Optimized flow passages within the size 40 cartridge allow for high volume throughput with minimal pressure drop, enhancing system efficiency.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened and ground internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its robust construction and precise metering characteristics make it ideal for high-flow, high-pressure applications where reliable switching and load-holding capabilities are critical.
PRODUCT IMAGES

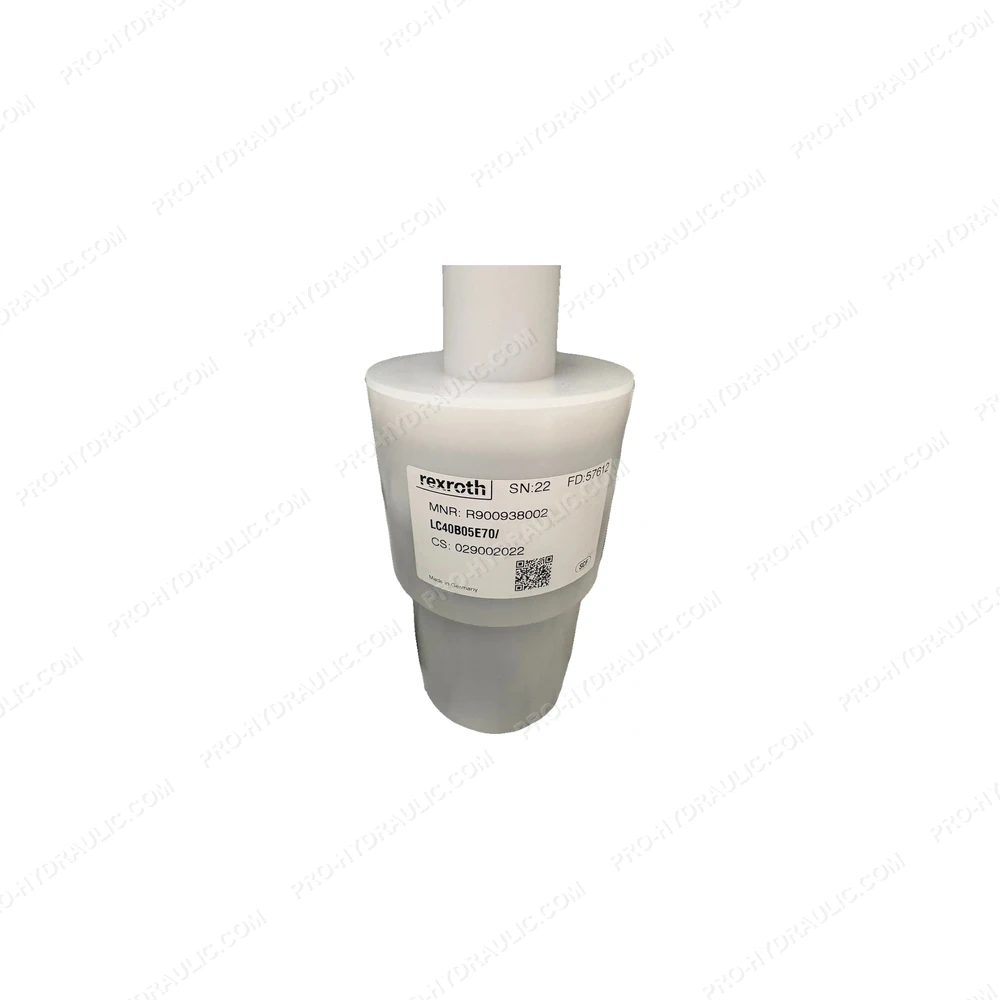

REXROTH LC40B05E70 / R900938002 2-Way Cartridge Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH LC40B05E70/ / R900938002 Pilot Operated Check Valve. This German-made hydraulic component features a robust poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
