Product Overview
The Rexroth LT 05 MKA-3X/100/02M (Material Number R900960196) is a pilot-operated directional spool valve from the proven Rexroth LT series, engineered for precise control of start, stop, and direction of hydraulic fluid flow in industrial power units. As a pilot control valve, it utilizes a low-pressure pilot signal to actuate the main spool stage, enabling reliable, low-effort switching of high-flow circuits. The MKA designation indicates a manual/pilot actuated spool configuration with spring return, while the 3X series code denotes the current component generation with standardized, interchangeable connection dimensions. This valve serves as a critical control element in hydraulic systems requiring dependable directional control, leak-free sealing, and long service life under continuous industrial duty.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Directional Spool Valve (Pilot Control Valve) |
| Model Designation | LT 05 MKA-3X/100/02M / R900960196 |
| Series / Generation | 3X (Current Rexroth standard generation) |
| Nominal Size | NG 05 (Size 5, compact pilot stage) |
| Actuation Type | Pilot / Manual Actuation with Spring Return |
| Operating Pressure | Standard Industrial Grade (Up to rated pilot pressure per Rexroth LT series) |
| Spool Configuration | Precision-ground spool with defined overlap for leak-free center position |
| Mounting & Connection | Standard ISO / Rexroth Interface (Subplate Mounting) |
| Sealing | NBR / FKM seals for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and matched bore deliver accurate flow metering and repeatable directional control, minimizing internal leakage and ensuring consistent actuator response.
- Pilot-Operated Efficiency: Low pilot pressure actuates the main stage, allowing operators or upstream pilot valves to control higher-flow circuits with minimal effort and reduced wear on the actuation mechanism.
- Spring Return Fail-Safe: Integrated spring return automatically resets the spool to its defined center or de-energized position upon loss of pilot signal, enhancing system safety and preventing unintended actuator movement.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust housing and wear-resistant spool/bore pairing for extended service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This valve serves as a critical control element in hydraulic systems requiring dependable directional control, leak-free sealing, and long service life under continuous industrial duty.
PRODUCT IMAGES

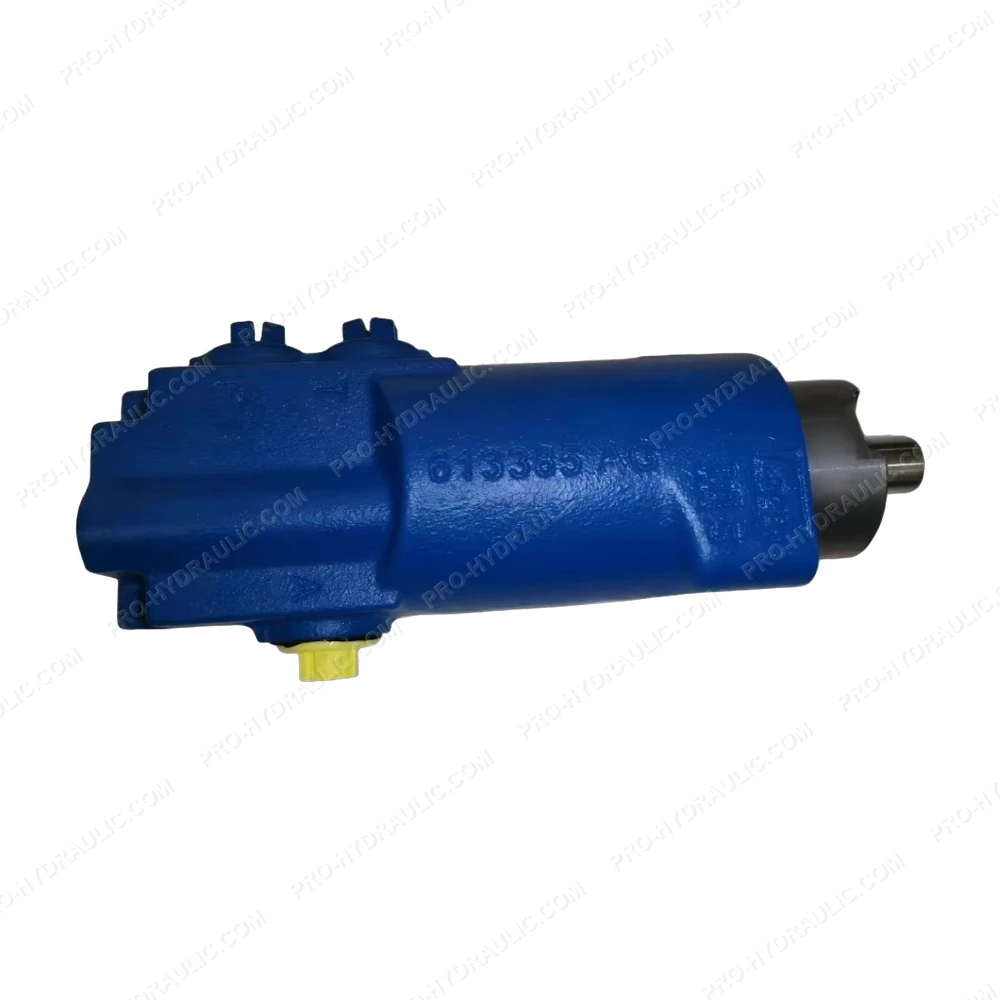

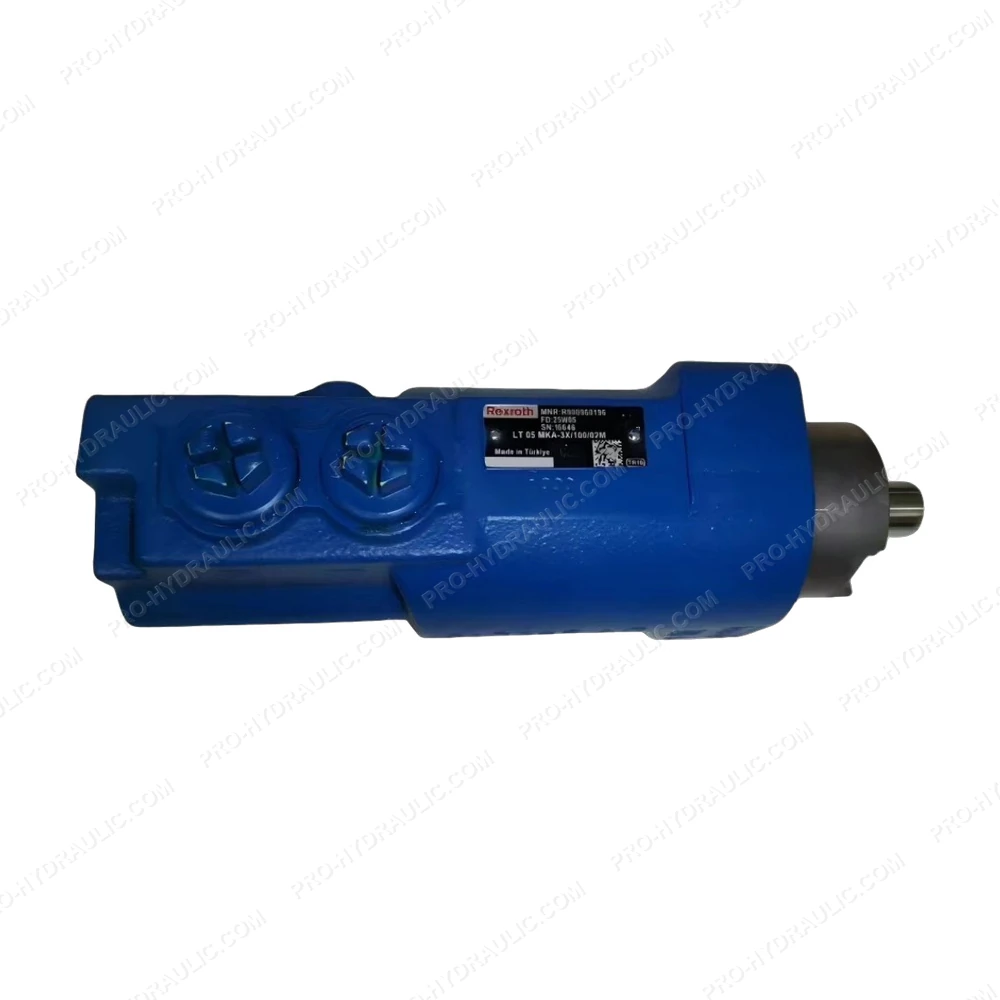

REXROTH LT 05 MKA-3X/100/02M / R900960196 Pilot Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH LT 05 MKA-3X/100/02M / R900960196 Solenoid Directional Spool Valve. This Germany-made hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
