The REXROTH M-3 SED 10 UK13/350 C G24 K4 / R900223675 is a heavy-duty industrial directional control valve engineered for reliable flow direction and pressure control in hydraulic systems. This direct-operated spool valve features a 3/2-way configuration with a nominal size of 10, designed for precise actuation and long service life in demanding applications.
REXROTH M-3 SED 10 UK13/350 C G24 K4 / R900223675 Technical Specifications
| Parameter | Value |
|---|---|
| Valve Type | Direct-operated directional spool valve |
| Nominal Size | 10 (NG10) |
| Ports | 3/2-way |
| Max. Operating Pressure | 350 bar |
| Max. Flow Rate | 80 L/min |
| Actuation | Solenoid, 24 V DC |
| Coil Type | G24 K4 (DIN plug) |
| Mounting | Subplate mounting (ISO 4401) |
| Seal Material | NBR (Buna-N) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Viscosity Range | 10 to 800 mm²/s |
| Protection Class | IP65 (with mating connector) |
Key Engineering Features
- Direct-operated spool design for fast response and precise control
- High-pressure capability up to 350 bar for demanding hydraulic circuits
- Robust solenoid with 24 V DC coil and DIN plug connection
- Subplate mounting per ISO 4401 for easy integration
- Durable construction with NBR seals for extended service life
- Wide fluid viscosity range ensures compatibility with various hydraulic fluids
Industrial Applications
- Machine tools and metalworking equipment
- Presses and forming machinery
- Plastic injection molding machines
- Material handling and lifting systems
- General hydraulic power units and test stands
For technical inquiries, dimensional drawings, or replacement support for REXROTH M-3 SED 10 UK13/350 C G24 K4 / R900223675, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

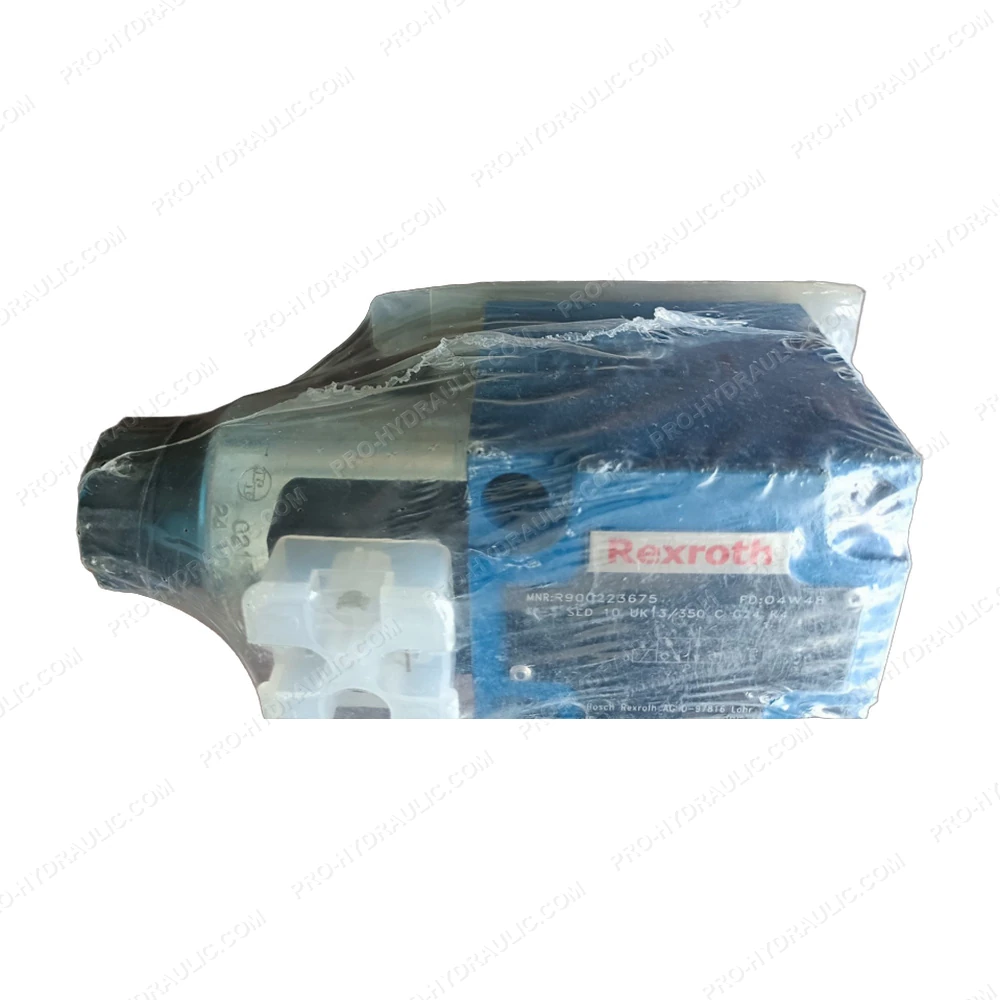

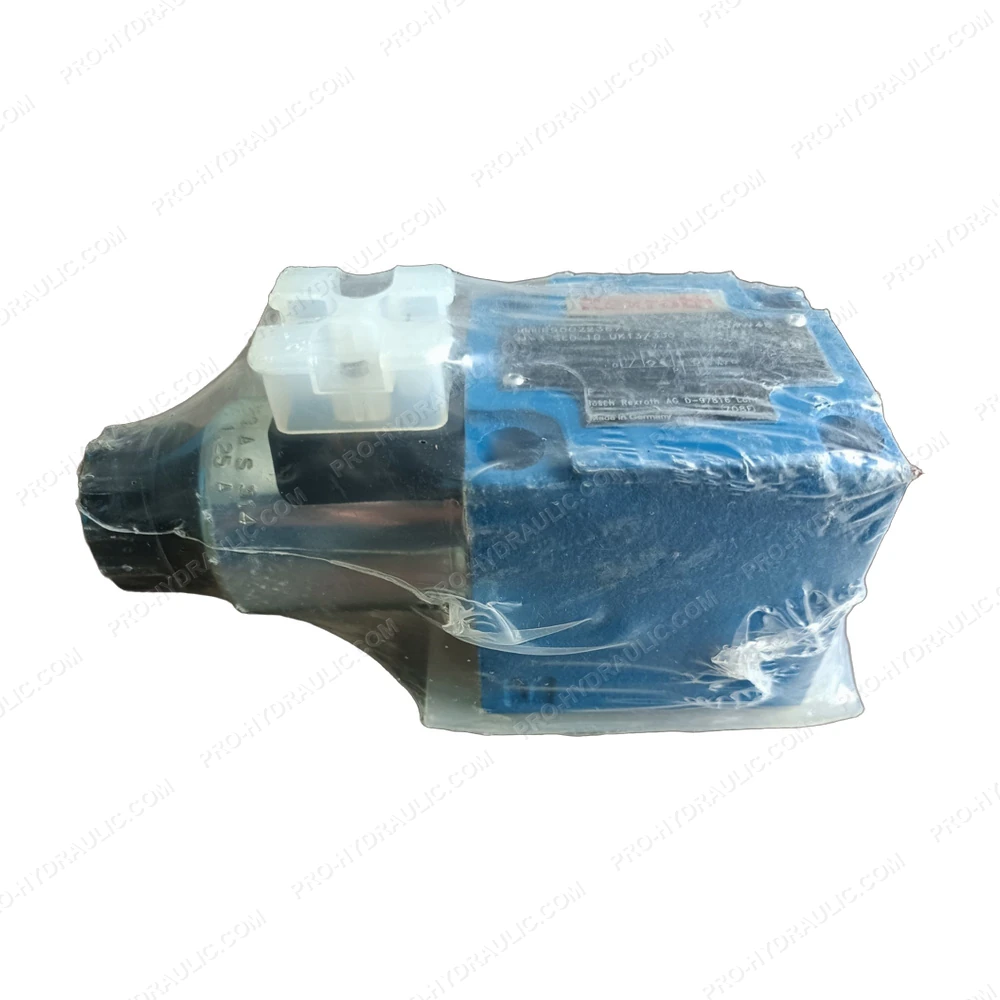

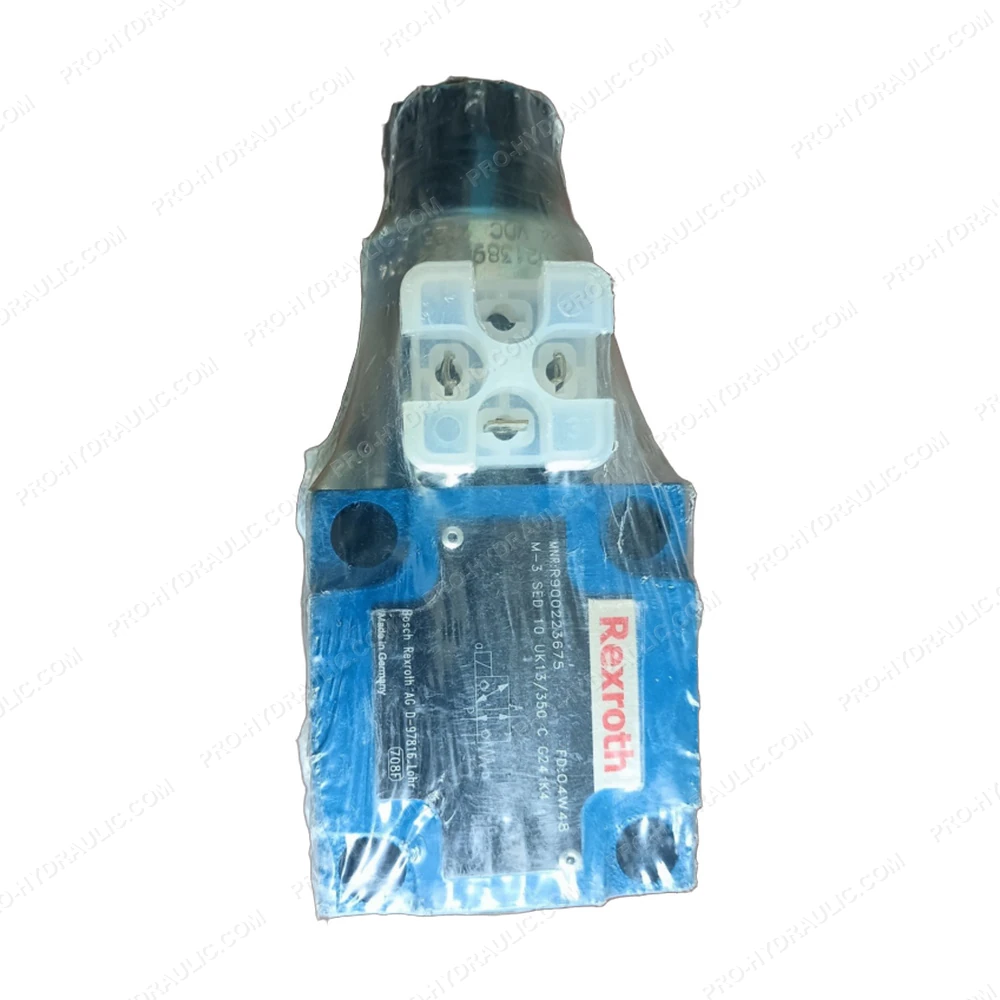

REXROTH M-3 SED 10 UK13/350 C G24 K4 Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH M-3 SED 10 UK13/350 C G24 K4 / R900223675 Directional Valve. This precision-engineered hydraulic component delivers reliable performance and accurate flow control for demanding industrial systems.
