Product Overview
The Rexroth M-3SED 6 (Material No. R901117458) is a direct-operated solenoid directional seat valve designed for leak-free shut-off and directional control of hydraulic fluid flow in industrial hydraulic systems. As a poppet-type seat valve, it operates on a positive sealing principle where a spring-loaded or solenoid-actuated poppet seats against a machined valve seat to isolate or connect ports. This design eliminates internal leakage in the closed position, making it ideal for clamping, holding, and load-locking circuits. The M-3SED 6 is a 3-way directional seat valve with a nominal size of NG6 (CETOP 3 / ISO 4401-03), available in AC or DC solenoid configurations. It is engineered for high switching reliability, fast response, and long service life in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Seat Valve (3/2-way poppet type) |
| Model Designation | M-3SED 6 / R901117458 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 350 bar (dependent on port configuration) |
| Nominal Flow Rate | Up to 25 L/min |
| Actuation Type | Direct solenoid actuation with spring return |
| Mounting & Connection | Subplate mounting per ISO 4401-03 / CETOP 3 interface |
| Sealing Principle | Poppet-and-seat design, zero internal leakage when closed |
| Solenoid Voltage | Standard DC 24V or AC 110V/230V options (per model variant) |
| Protection Class | IP65 (with proper connector) |
| Fluid Compatibility | Mineral oil-based hydraulic fluids per DIN 51524 |
| Ambient Temperature Range | -20°C to +70°C (standard version) |
Engineering Features & Advantages
- Precision Performance: The solenoid directional seat valve (3/2-way poppet type) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 25 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
It is engineered for high switching reliability, fast response, and long service life in demanding industrial environments.
PRODUCT IMAGES

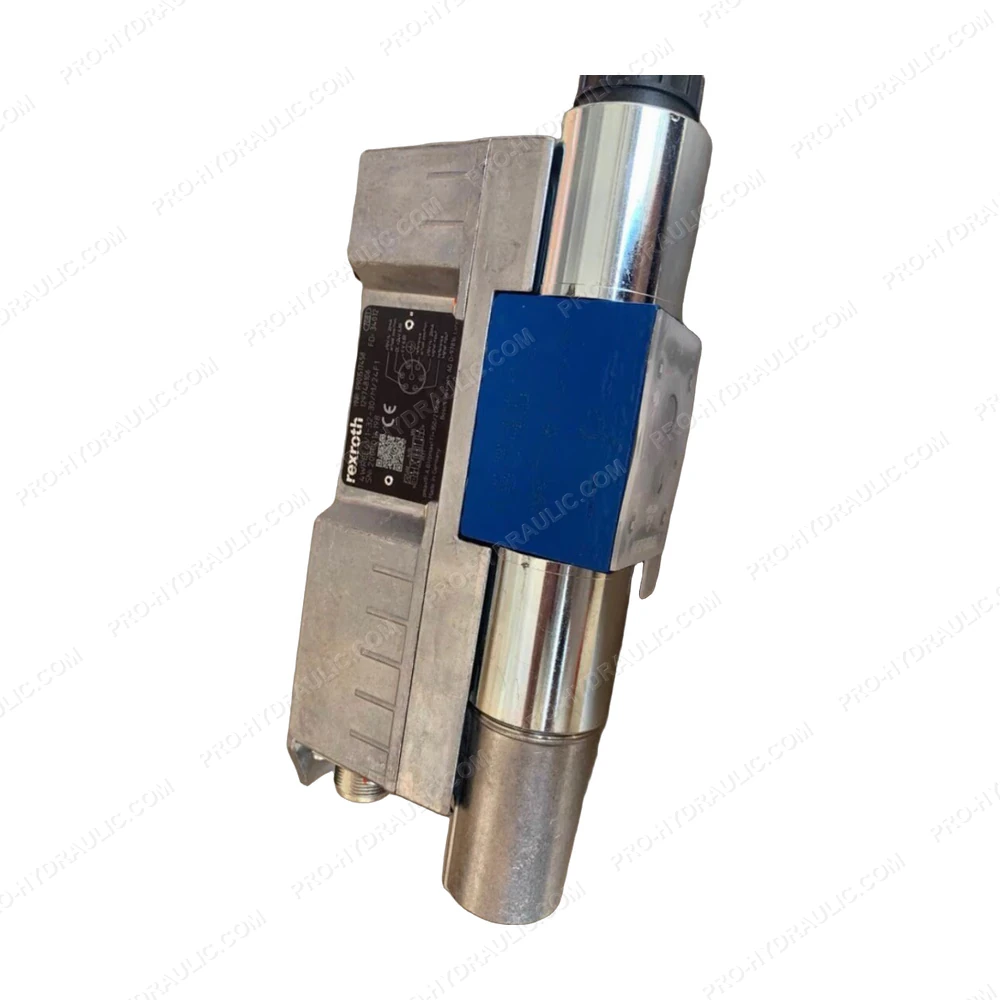

REXROTH M-3SED 6 / R901117458 Solenoid Directional Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH M-3SED 6 / R901117458 Solenoid Directional Seat Valve. This Germany-made 24V DC hydraulic component features a direct-acting poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
