Product Overview
The Rexroth M-3SED 6 UK13/350CG24N9K4/PV (Material No. R900224613) is a direct-operated solenoid directional seat valve designed for reliable shut-off, release, and directional control of hydraulic fluid flow in industrial hydraulic systems. Featuring a poppet-type seat design, this valve provides leak-free sealing in the closed position, making it ideal for applications requiring zero internal leakage and precise load holding. The valve is actuated by a wet-pin DC solenoid with a nominal voltage of 24 V DC, ensuring fast, consistent response and long service life. With a nominal size of NG6 (CETOP 3 / ISO 4401-03), it is engineered for compact manifold mounting and seamless integration into modern hydraulic power units and control blocks.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Seat Valve (Poppet Type) |
| Model Designation | M-3SED 6 UK13/350CG24N9K4/PV |
| Material Number | R900224613 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 350 bar (working port) |
| Solenoid Voltage | 24 V DC (nominal) |
| Mounting & Connection | Subplate mounting per ISO 4401-03 / CETOP 3 |
| Sealing Material | NBR (N9) / FKM optional |
Engineering Features & Advantages
- Leak-Free Sealing: Poppet seat design ensures zero internal leakage in the closed position, ideal for load holding and pressure retention circuits.
- Fast Solenoid Response: Wet-pin DC solenoid provides rapid, repeatable switching with minimal hysteresis for precise directional control.
- High Pressure Capability: Rated for continuous operation up to 350 bar, suitable for demanding industrial hydraulic circuits.
- Compact NG6 Design: Space-saving CETOP 3 interface allows direct manifold mounting and simplified system integration.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with long solenoid service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards.
Typical Industrial Applications
This Rexroth solenoid directional seat valve is widely used in plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial hydraulic power units. Its leak-free poppet design makes it particularly suited for clamping circuits, load holding applications, and safety-related shut-off functions where reliable sealing and fast response are critical.
PRODUCT IMAGES

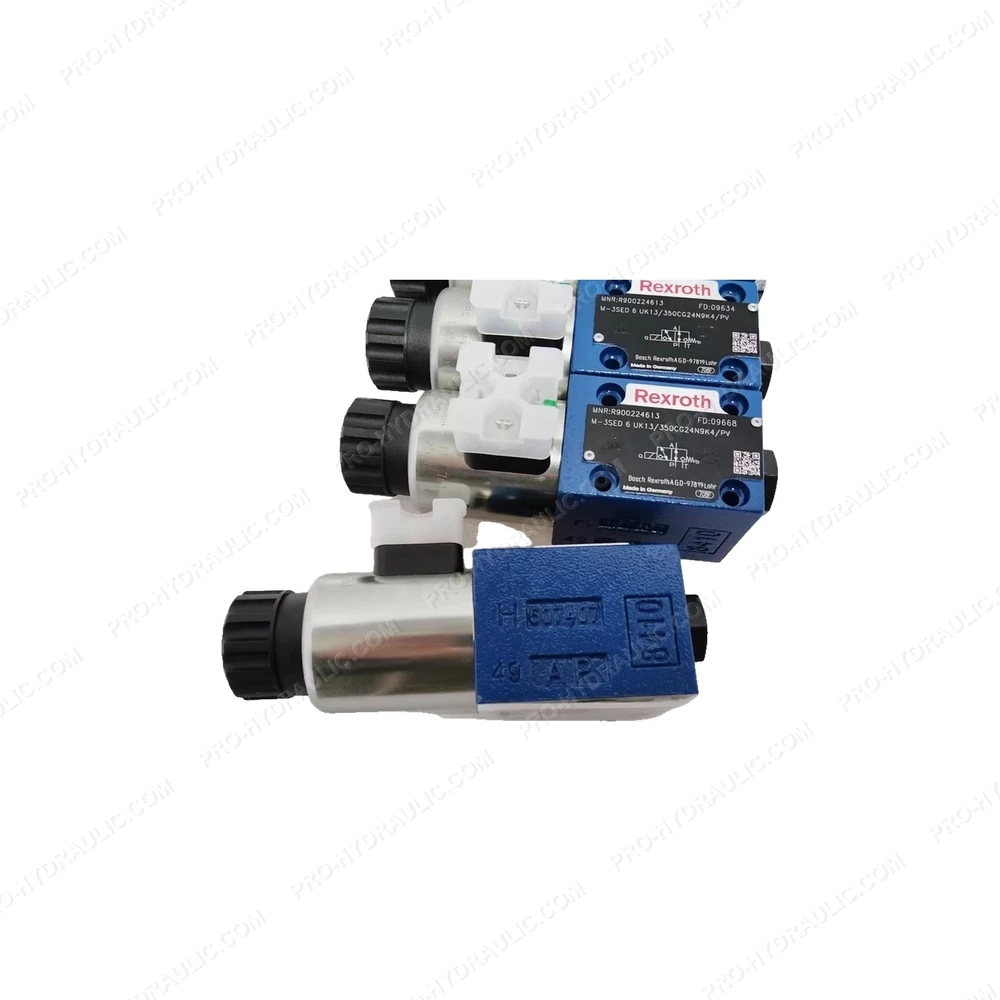

REXROTH M-3SED 6 UK13/350CG24N9K4/PV / R900224613 Solenoid Directional Seat Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH M-3SED 6 UK13/350CG24N9K4/PV / R900224613 Solenoid Directional Seat Valve. This Germany-made 24V DC hydraulic component features a poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
