Product Overview
The Rexroth OD153118A000 / R930058334 is a high-performance solenoid-actuated directional cartridge valve engineered for precise control of hydraulic fluid flow direction in industrial power units. Manufactured by Bosch Rexroth, a global leader in drive and control technology, this valve operates on a direct-acting solenoid principle, shifting an internal spool to route pressurized oil between ports with minimal pressure drop. Its cartridge-style construction allows for compact integration into manifold blocks and custom hydraulic circuits, making it an ideal choice for space-constrained systems requiring reliable directional control, fast response, and long service life in continuous-duty industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Cartridge Valve (Directional Control Valve) |
| Model Designation | OD153118A000 / R930058334 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Cartridge mounting per ISO 4401 / Manufacturer cavity interface |
| Actuation Type | Direct-acting solenoid with spring return |
| Spool Configuration | 2-position or 3-position directional spool (model-dependent) |
| Flow Capacity | Optimized for nominal industrial flow rates (up to 60 L/min class) |
| Seal Material | NBR / FKM (standard industrial hydraulic fluids) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool delivers accurate flow direction control with minimal internal leakage and fast solenoid response times, ensuring repeatable cycle performance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid encapsulation and wear-resistant spool bore for extended service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, including cavity dimensions, port layout, and solenoid voltage options.
- Compact Cartridge Design: Enables high-density manifold integration, reducing piping complexity and potential leak points in multi-valve hydraulic systems.
- Low Pressure Drop: Optimized internal flow paths minimize energy loss and heat generation, improving overall system efficiency.
Typical Industrial Applications
This Rexroth solenoid directional cartridge valve is widely used in plastic injection molding machines for mold open/close and injection sequence control, metallurgical presses for directional force actuation, construction and marine hydraulics for steering and implement circuits, and CNC machine tools for tool clamping and pallet changing functions. Its cartridge format is particularly suited for custom manifold blocks in mobile and industrial hydraulic power units where space and reliability are critical.
PRODUCT IMAGES

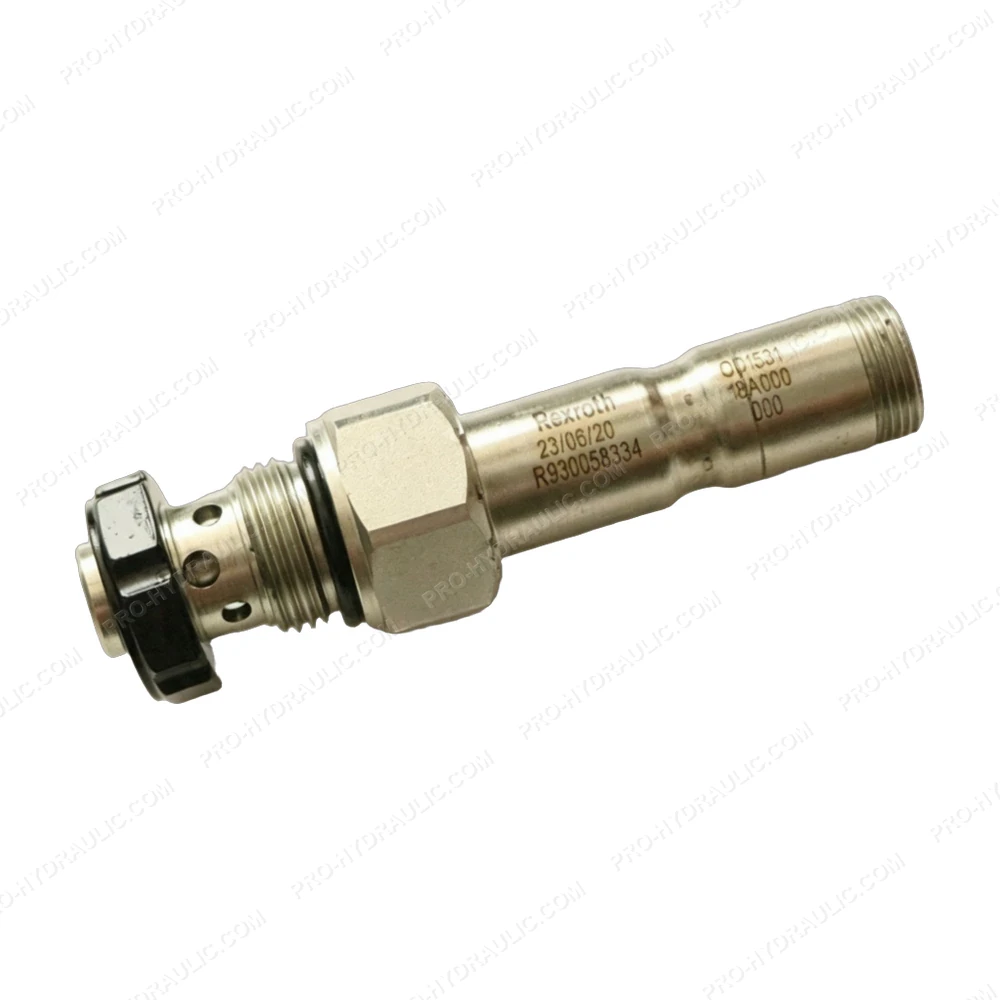

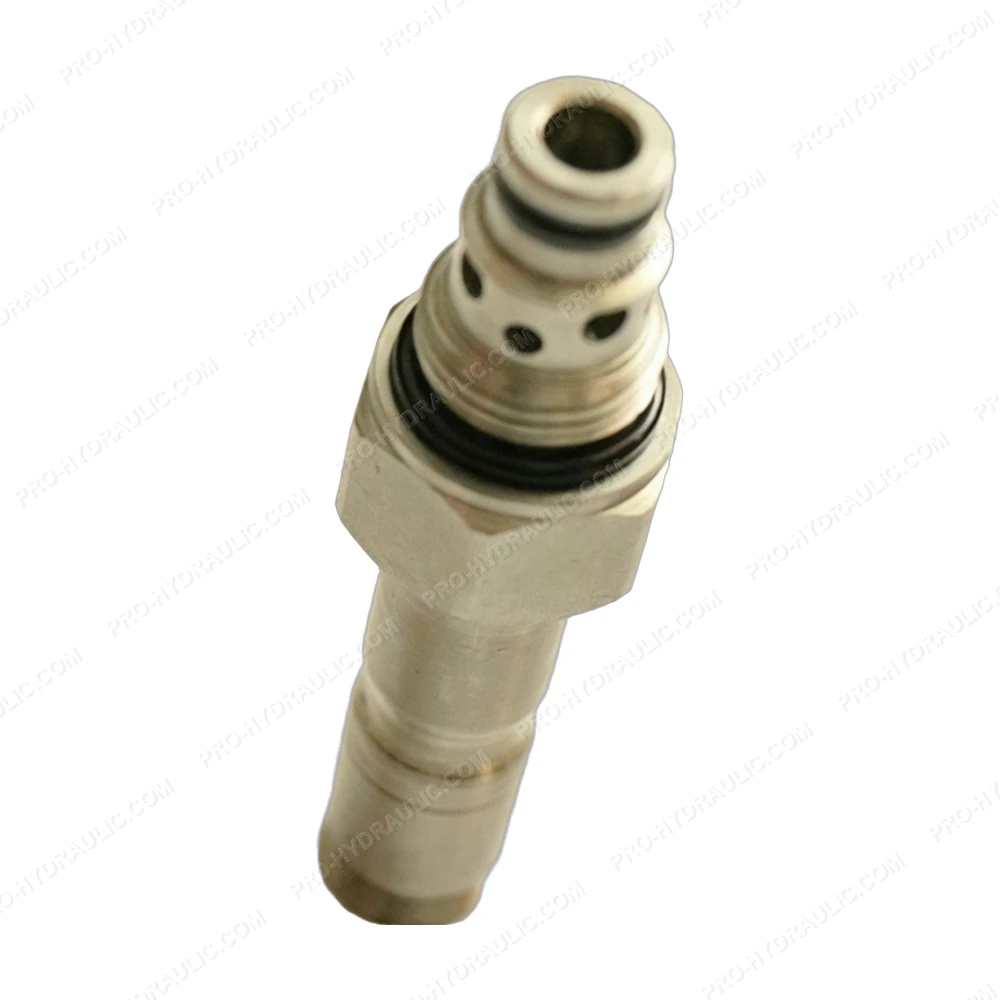

Rexroth OD153118A000 / R930058334 Solenoid Directional Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth OD153118A000 / R930058334 Solenoid Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
