Product Overview
The Rexroth PGF1-21/2.2RL01VM (Material Number: R900086166) is a precision-engineered internal gear pump from the Bosch Rexroth PGF series, designed for reliable hydraulic power generation in industrial and mobile applications. This fixed-displacement internal gear pump operates on the proven principle of an internally toothed ring gear meshing with an externally toothed pinion gear, separated by a crescent-shaped filler piece. The resulting design delivers exceptionally smooth, low-pulsation flow with minimal noise emission, making it ideal for applications where quiet operation and consistent volumetric performance are critical. With a nominal displacement of 2.2 cm³/rev and a clockwise rotation configuration, the PGF1-21/2.2RL01VM serves as a compact, energy-efficient solution for lubrication circuits, pilot pressure supply, and low-to-medium pressure hydraulic systems in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Internal Gear Pump (Fixed Displacement) |
| Model Designation | PGF1-21/2.2RL01VM |
| Material Number | R900086166 |
| Series | PGF1 (Internal Gear Pump Series 1) |
| Nominal Displacement | 2.2 cm³/rev |
| Operating Pressure | Continuous: up to 160 bar / Peak: up to 200 bar (standard industrial grade) |
| Speed Range | Up to 3,000 rpm (dependent on fluid viscosity and operating pressure) |
| Rotation Direction | Clockwise (viewed from drive shaft end) |
| Mounting & Connection | Standard ISO / Rexroth flange interface, SAE or metric port connections |
| Hydraulic Fluid Compatibility | Mineral oil (HL, HLP), environmentally friendly fluids upon request |
| Seal Material | NBR (standard); FKM available for high-temperature applications |
Engineering Features & Advantages
- Low-Noise Internal Gear Design: The crescent-type internal gear principle ensures smooth, pulsation-free flow delivery with significantly reduced noise levels compared to external gear pumps, ideal for noise-sensitive industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a nominal displacement of 2.2 cm³/rev and a clockwise rotation configuration, the PGF1-21/2.2RL01VM serves as a compact, energy-efficient solution for lubrication circuits, pilot pressure supply, and low-to-medium pressure hydraulic systems in demanding industrial environments.
PRODUCT IMAGES

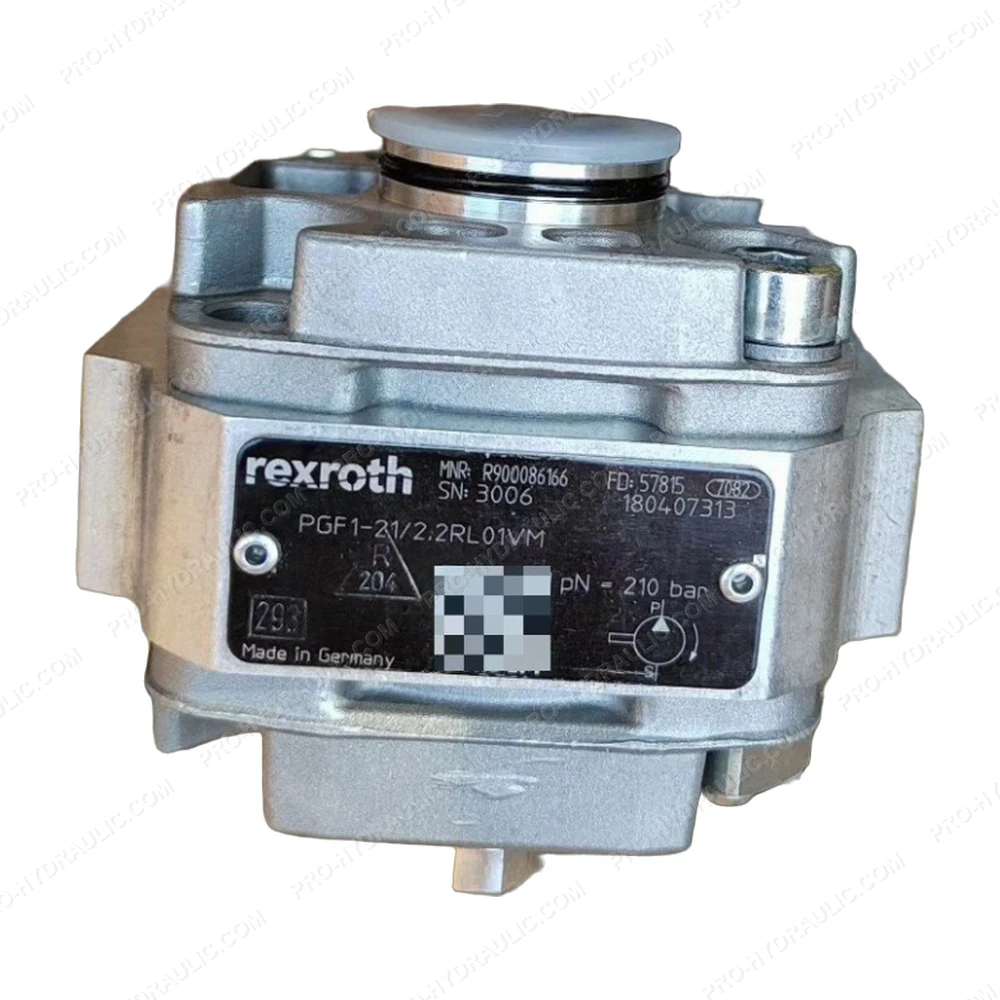

Rexroth PGF1-21/2.2RL01VM / R900086166 Internal Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth PGF1-21/2.2RL01VM / R900086166 Internal Gear Pump. This Germany-made hydraulic component features a fixed displacement internal gear design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
