Product Overview
The Rexroth PGH2-22/008RE07VU2 (material number R900951917) is a precision-engineered internal gear pump from the Bosch Rexroth PGH series, designed for reliable hydraulic power generation in industrial drive systems. Operating on the internal gear principle, this fixed-displacement pump features a pinion (outer gear) driving an internally toothed ring gear, with a crescent-shaped filler piece separating the suction and pressure chambers. This architecture delivers smooth, low-pulsation flow with excellent suction characteristics and low noise emission. The PGH2-22/008RE07VU2 is a direct-fit replacement component suitable for continuous duty in demanding hydraulic circuits, offering high volumetric efficiency and long service life with minimal maintenance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Internal Gear Pump (Fixed Displacement) |
| Model Designation | PGH2-22/008RE07VU2 |
| Material Number | R900951917 |
| Series | PGH2 (Size 22) |
| Geometric Displacement | 8 cm³/rev (nominal) |
| Operating Pressure | Continuous duty up to 250 bar (peak 280 bar) |
| Speed Range | Up to 3,000 rpm (application dependent) |
| Mounting & Connection | Standard ISO / Rexroth flange and shaft interface |
| Direction of Rotation | Clockwise (viewed on drive shaft) |
| Hydraulic Fluid | Mineral oil based hydraulic fluids (HLP/HM per ISO) |
Engineering Features & Advantages
- Precision Gear Performance: Hardened, precision-ground internal gear set with crescent filler provides smooth, low-pulsation flow and high volumetric efficiency across the operating range.
- Low Noise Emission: The internal gear principle with optimized tooth geometry significantly reduces pressure pulsation and operating noise compared to external gear designs.
- Excellent Suction Characteristics: High suction capability allows reliable operation even at elevated speeds and with higher viscosity fluids.
- Industrial Reliability: Robust casing and bearing design built for continuous operation under severe industrial conditions and high pressure loads.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in installation without modification.
Typical Industrial Applications</
PRODUCT IMAGES

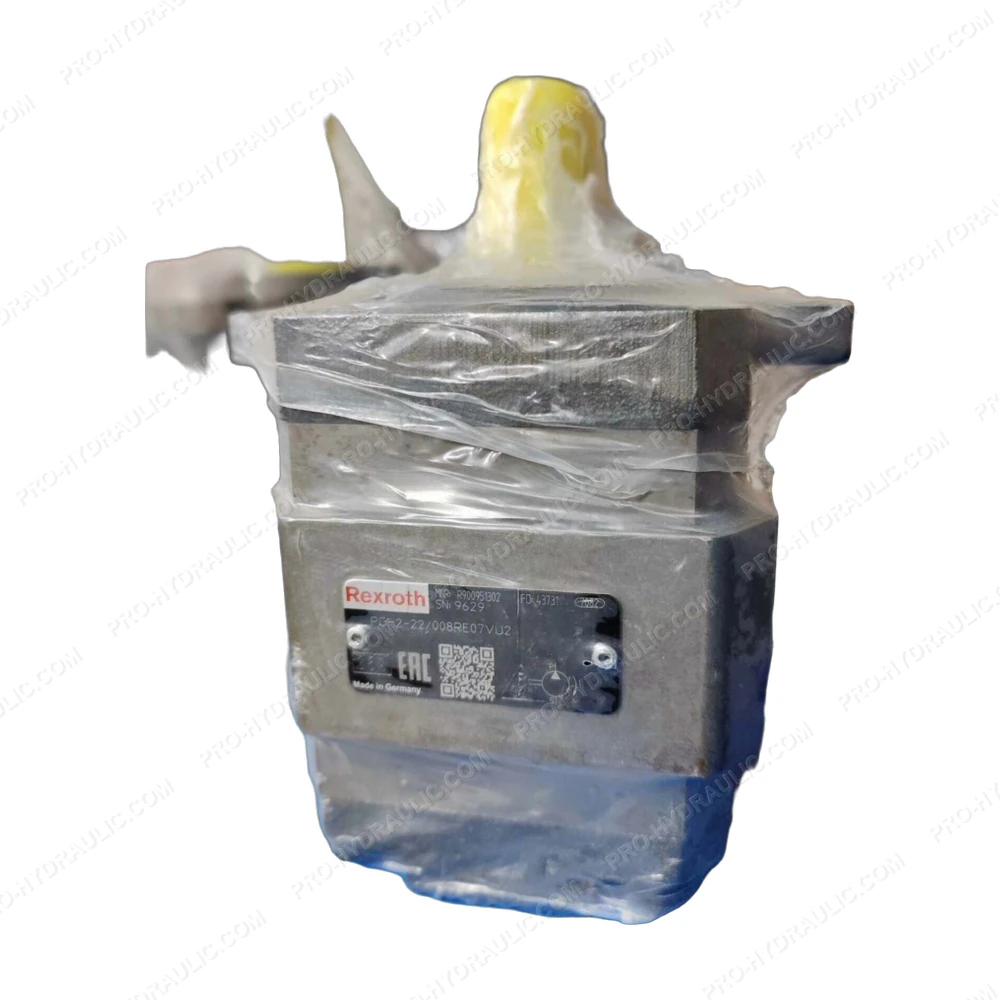

Rexroth PGH2-22/008RE07VU2 / R900951917 Internal Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth PGH2-22/008RE07VU2 / R900951917 Internal Gear Pump. This Germany-made high-pressure hydraulic component features a fixed displacement internal gear design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
