Product Overview
The Rexroth R480224220 is a pneumatic directional control valve engineered for precise actuation and reliable switching of compressed air circuits in industrial automation and process systems. As part of Rexroth’s renowned pneumatic control portfolio, this valve utilizes a precision-machined spool and bore assembly to direct, divert, or block airflow with minimal pressure loss and fast response characteristics. The R480224220 is designed as a direct-fit replacement component for OEM pneumatic manifolds and valve terminals, ensuring drop-in compatibility with existing Rexroth and industry-standard interfaces. Its robust construction and sealed spool design make it suitable for continuous-duty operation in demanding factory environments where consistent pneumatic control is critical to machine sequencing, actuator positioning, and process interlocking.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve |
| Model Designation | R480224220 |
| Manufacturer | Rexroth (Bosch Rexroth) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Actuation Type | Pneumatic / Solenoid Pilot (per model configuration) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Seal Material | NBR / Polyurethane (media-compatible) |
Engineering Features & Advantages
- Precision Spool & Bore Design: Tight-tolerance spool-to-bore clearance ensures minimal internal leakage, crisp directional switching, and repeatable pneumatic metering for accurate actuator control.
- Fast Response Actuation: Optimized pilot and return-spring dynamics deliver rapid valve shifting, reducing cycle times in high-speed automated assembly and packaging lines.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with wear-resistant sealing and corrosion-protected body construction.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in installation without manifold or piping modification.
- Low Pressure Drop: High-flow internal passages maintain downstream pressure stability, improving energy efficiency across the pneumatic circuit.
Typical Industrial Applications
The Rexroth R480224220 pneumatic directional control valve is widely deployed in plastic injection molding machines for mold clamping and ejector sequencing, packaging and palletizing systems for gripper and diverter actuation, CNC machine tools for tool changer and clamping circuits, and general factory automation valve terminals controlling pneumatic cylinders, rotary actuators, and air-blast processes. Its robust design also suits metallurgical handling equipment and marine pneumatic control panels where dependable directional air control is essential.
PRODUCT IMAGES

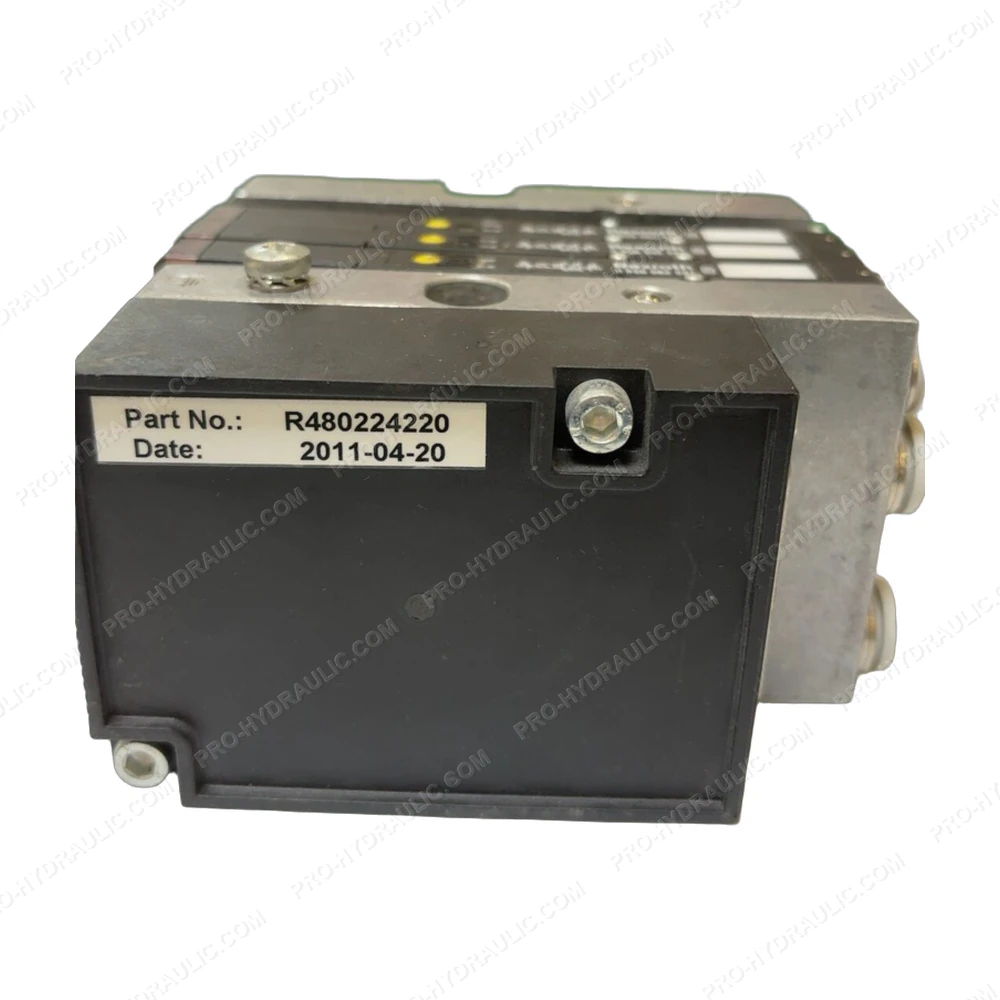

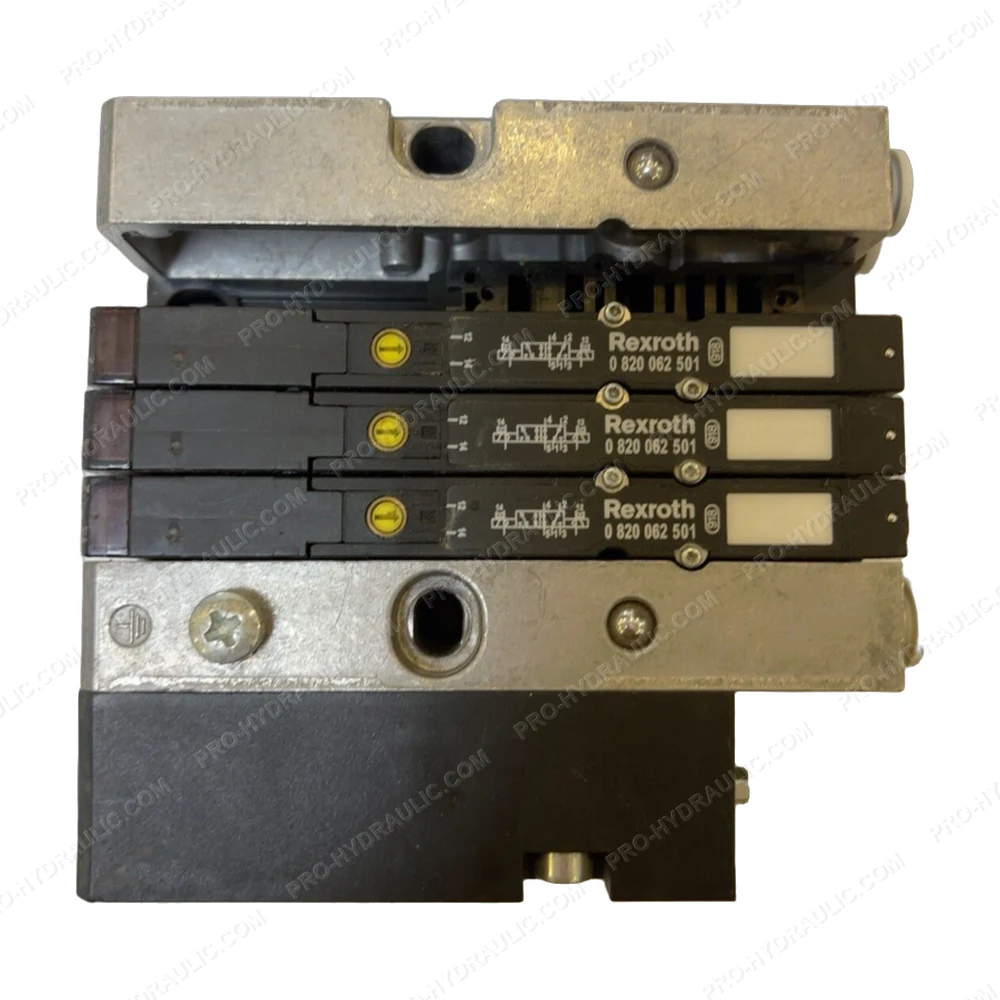

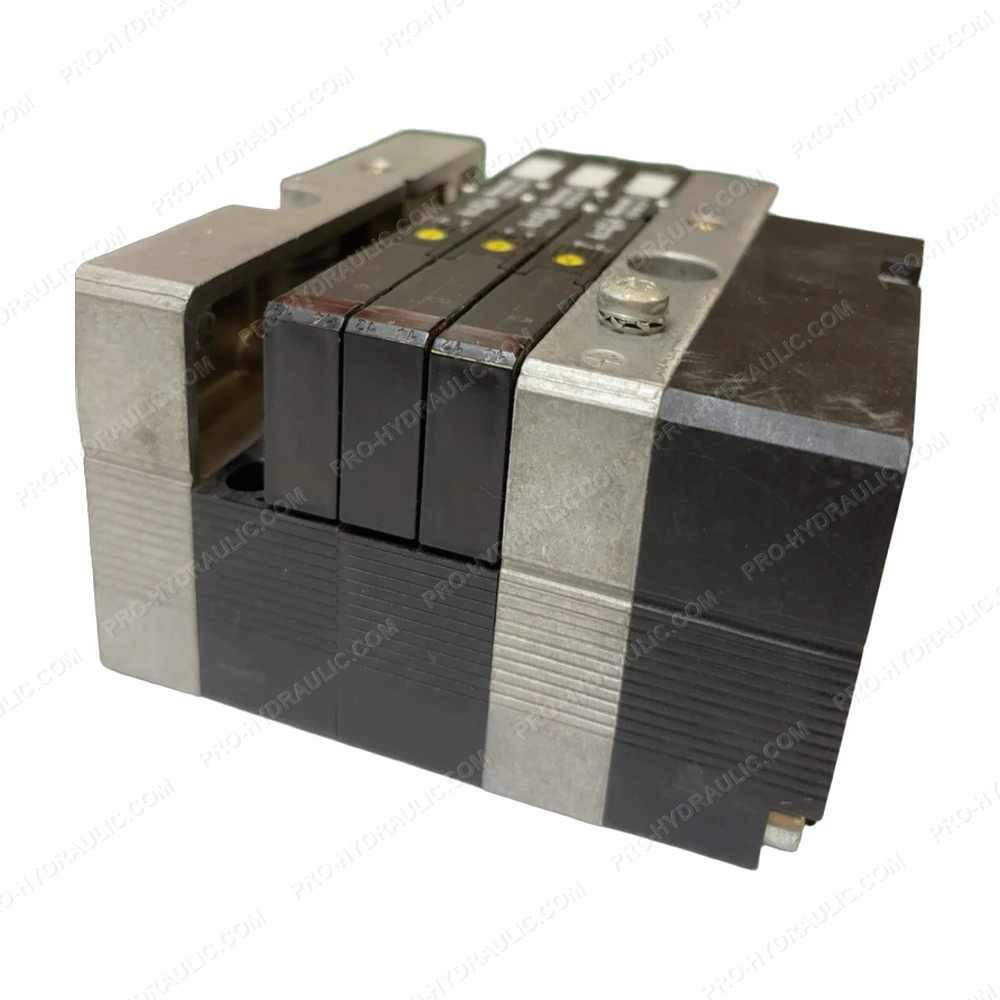

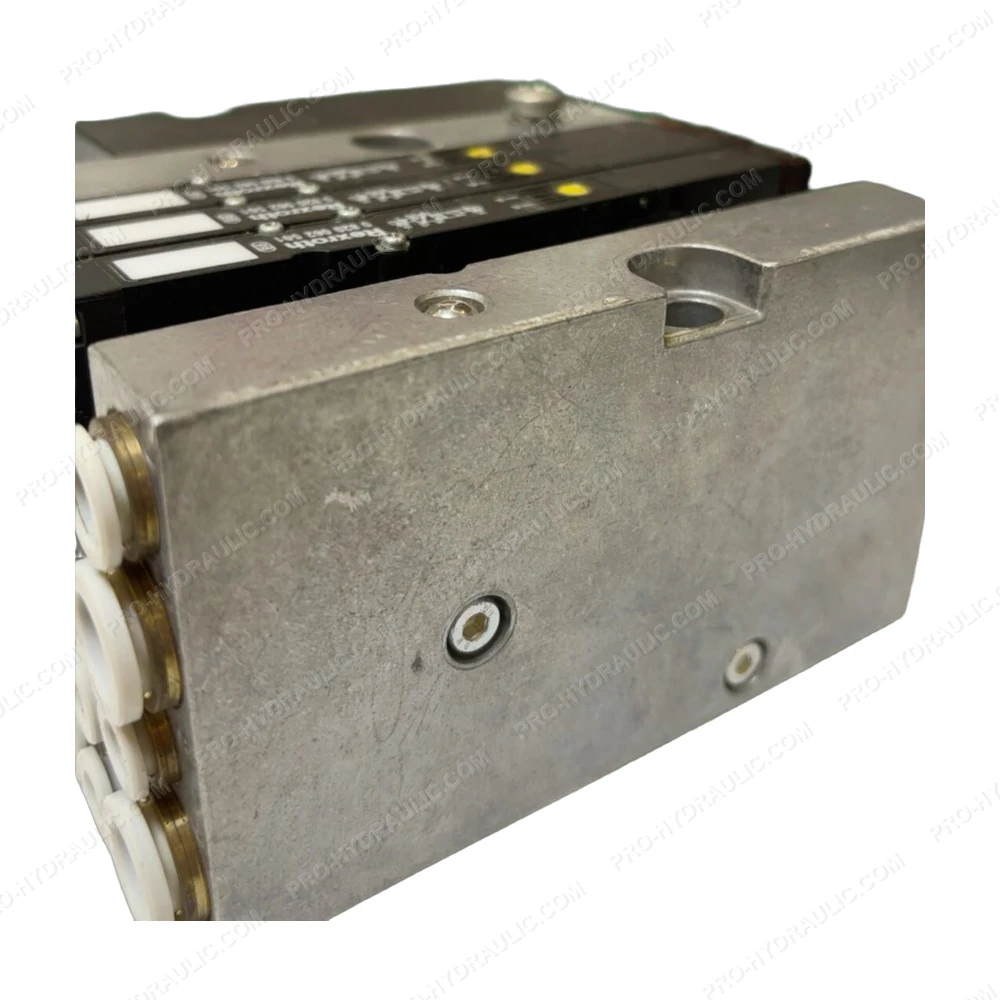

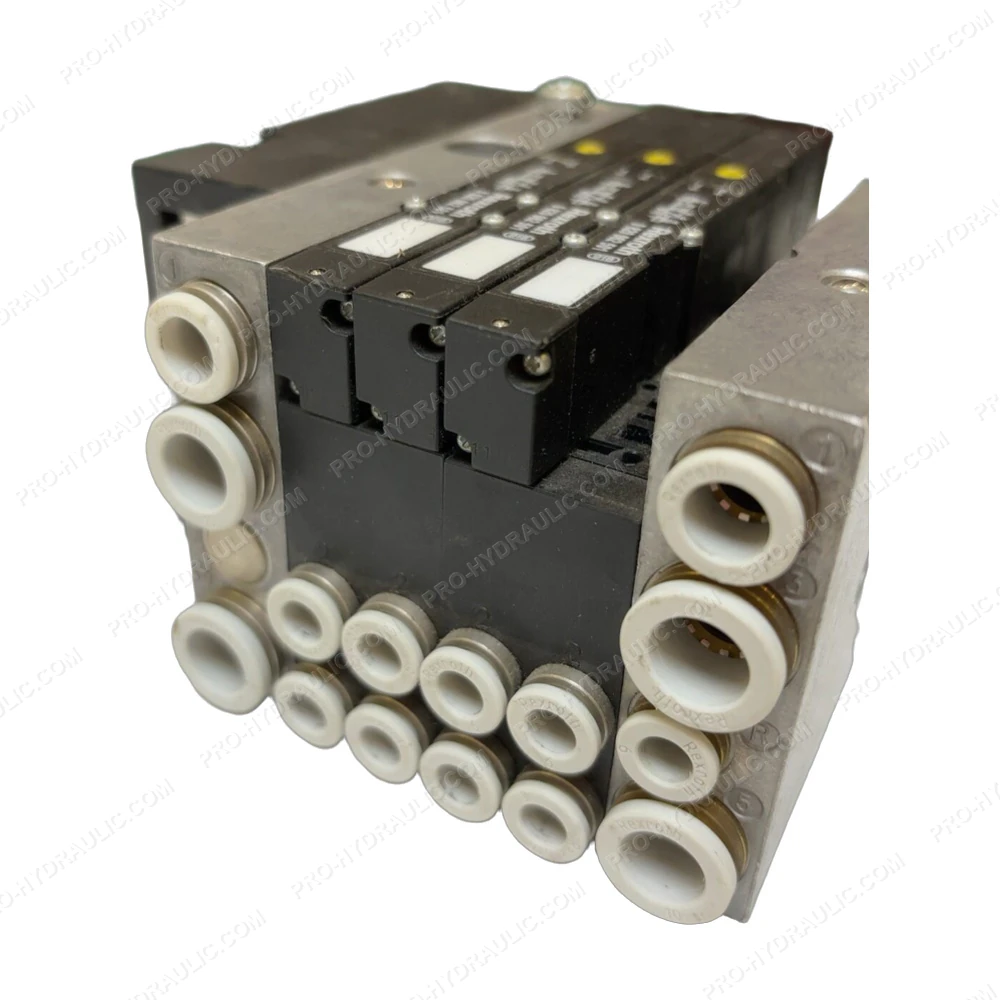

Rexroth R480224220 Pneumatic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth R480224220 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
