Product Overview

The Rexroth R901382312 is a high-performance proportional directional valve engineered by Bosch Rexroth for precise, continuous control of hydraulic flow direction and magnitude in industrial systems. As part of the Rexroth proportional and servo valve family, this component utilizes a solenoid-actuated spool design that proportionally modulates flow in response to an analog electrical command signal, enabling smooth, infinitely variable control of actuator speed and direction. The R901382312 is designed for demanding closed-loop and open-loop applications where accurate velocity profiling, controlled acceleration, and repeatable positioning are critical to overall system performance. Its robust construction and precision spool-to-bore fit ensure minimal internal leakage, excellent hysteresis characteristics, and long service life in continuous industrial duty cycles.

Technical Specifications

Engineering Features & Advantages

• Precision Proportional Metering: The spool geometry with calibrated metering notches delivers highly linear flow characteristics relative to the input command signal, enabling accurate velocity and position control of hydraulic actuators.
• Low Hysteresis & High Repeatability: Advanced solenoid design and precision spool-to-bore clearance minimize hysteresis and threshold, ensuring consistent performance across repeated cycles and improving closed-loop system accuracy.
• Fast Dynamic Response: Optimized solenoid force characteristics and low-friction spool operation provide rapid response times suitable for demanding motion control profiles in industrial automation.
• Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust materials and sealing systems resistant to standard hydraulic fluid contamination and thermal cycling.
• Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth proportional valve standards, ensuring drop-in replacement without modification to manifolds or control electronics.

Typical Industrial Applications

The Rexroth R901382312 proportional directional valve is widely deployed in heavy industrial scenarios requiring precise hydraulic motion control. Typical applications include plastic injection molding machines where accurate injection speed and pressure profiling are essential, metallurgical presses and rolling mills demanding high-force controlled actuation, CNC machine tools and machining centers requiring smooth axis movement and positioning, and construction or marine hydraulic systems where proportional flow control enables responsive operation of cylinders and motors under varying load conditions. It is also commonly found in test rigs, simulators

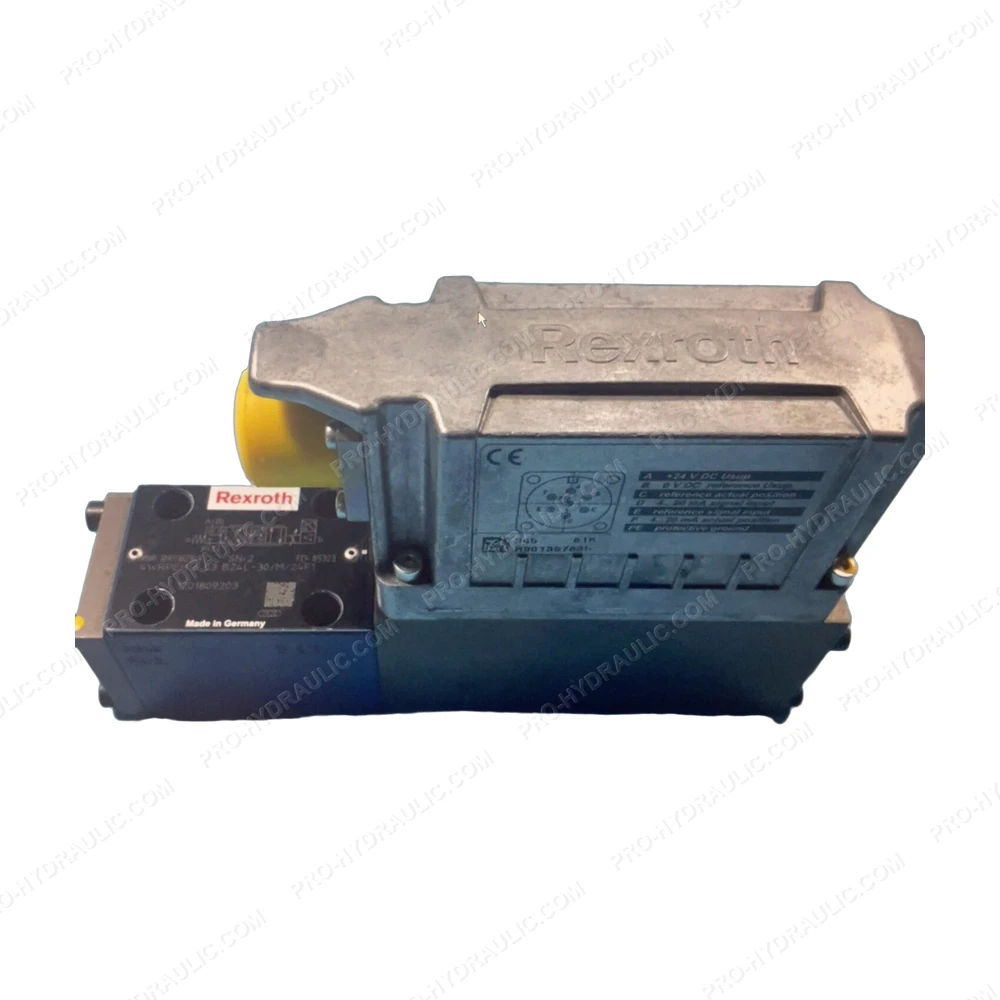

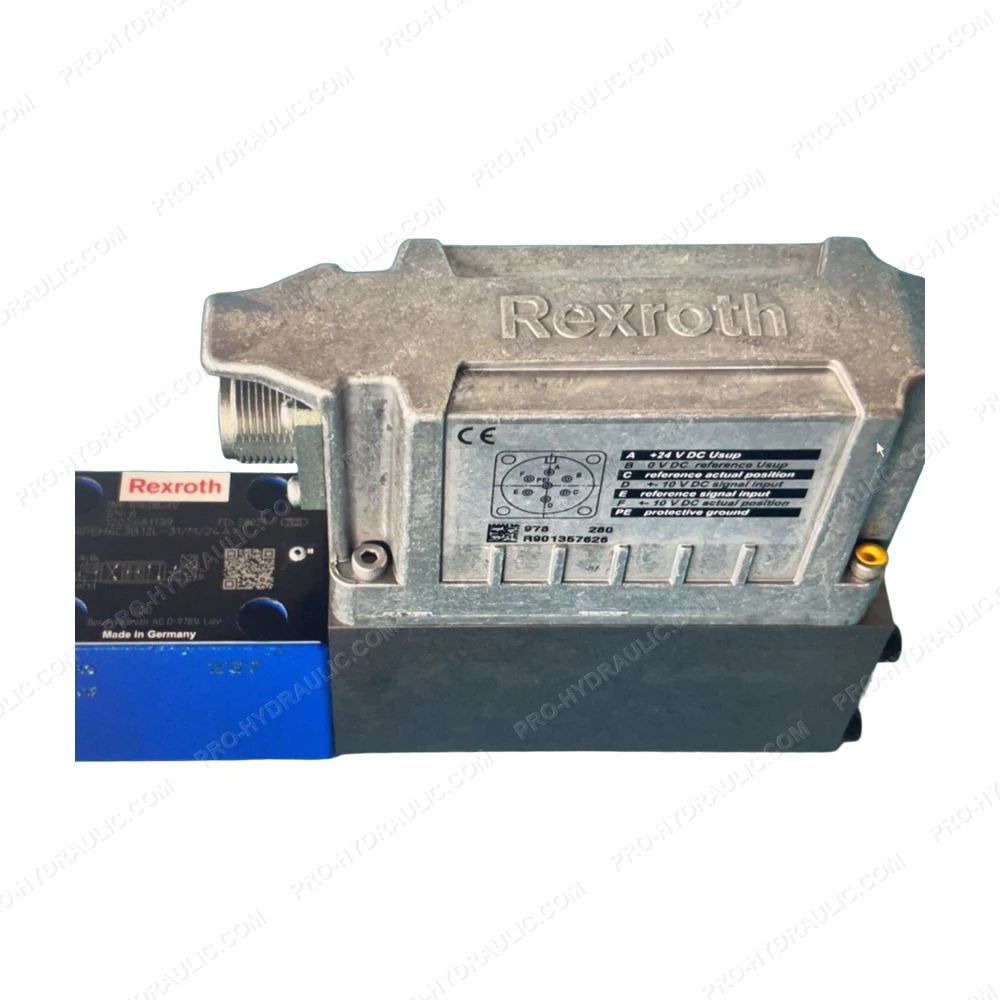

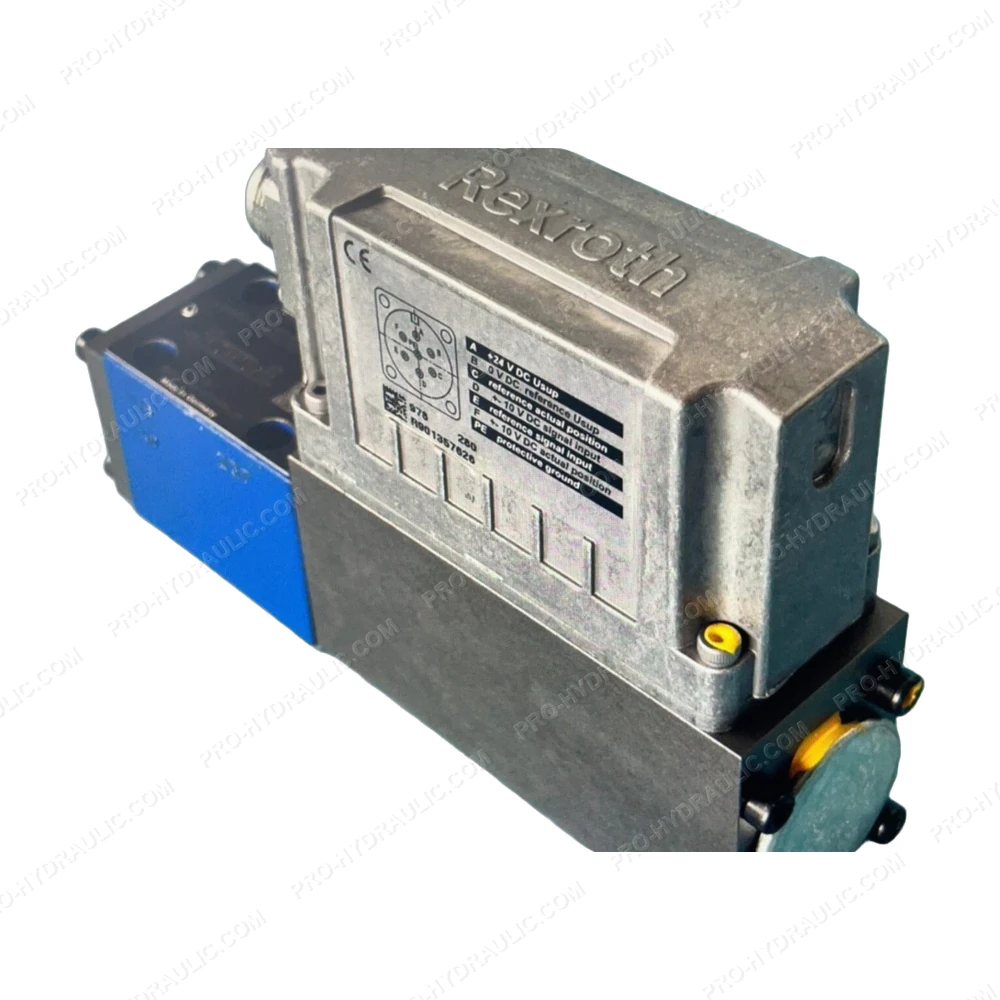

PRODUCT IMAGES
