Product Overview
The Rexroth R901382354 is a high-response proportional directional valve from the Bosch Rexroth 4WR series, engineered to deliver precise, infinitely variable control of flow direction and magnitude in demanding industrial hydraulic systems. Utilizing a robust solenoid-actuated spool design with integrated position feedback, this valve converts an analog electrical command signal into a proportional hydraulic output, enabling smooth acceleration and deceleration of actuators without pressure spikes. As a direct-operated proportional directional valve, it serves as a critical interface between electronic control systems and hydraulic power circuits, providing exceptional metering accuracy, fast dynamic response, and repeatable performance in closed-loop and open-loop applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (4-Way, 3-Position) |
| Model Designation | R901382354 |
| Manufacturer | Bosch Rexroth |
| Operating Pressure | Up to 315 bar (working ports); 350 bar peak |
| Nominal Flow Rate | Size-dependent (typically 10–100 L/min at Δp = 10 bar per land) |
| Actuation Type | Proportional solenoid with inductive position feedback |
| Command Signal | ±10 V DC or 4–20 mA (via associated amplifier card) |
| Mounting & Connection | ISO 4401 / CETOP 5 (NG10) subplate mounting; DIN 43650 electrical connector |
| Spool Configuration | Closed-center, overlapped spool for precise metering |
| Hysteresis | ≤ 1% of nominal stroke |
| Response Time | Typically 10–30 ms depending on signal step and flow range |
Engineering Features & Advantages
- Precision Proportional Metering: The valve spool position is continuously regulated via inductive position feedback, ensuring highly accurate flow control proportional to the electrical command signal with minimal hysteresis and excellent repeatability.
- Fast Dynamic Response: Optimized solenoid force characteristics and low-friction spool guidance deliver rapid response times, enabling high-cycle machinery to achieve smooth actuator motion profiles and reduced cycle times.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As a direct-operated proportional directional valve, it serves as a critical interface between electronic control systems and hydraulic power circuits, providing exceptional metering accuracy, fast dynamic response, and repeatable performance in closed-loop and open-loop applications.
PRODUCT IMAGES

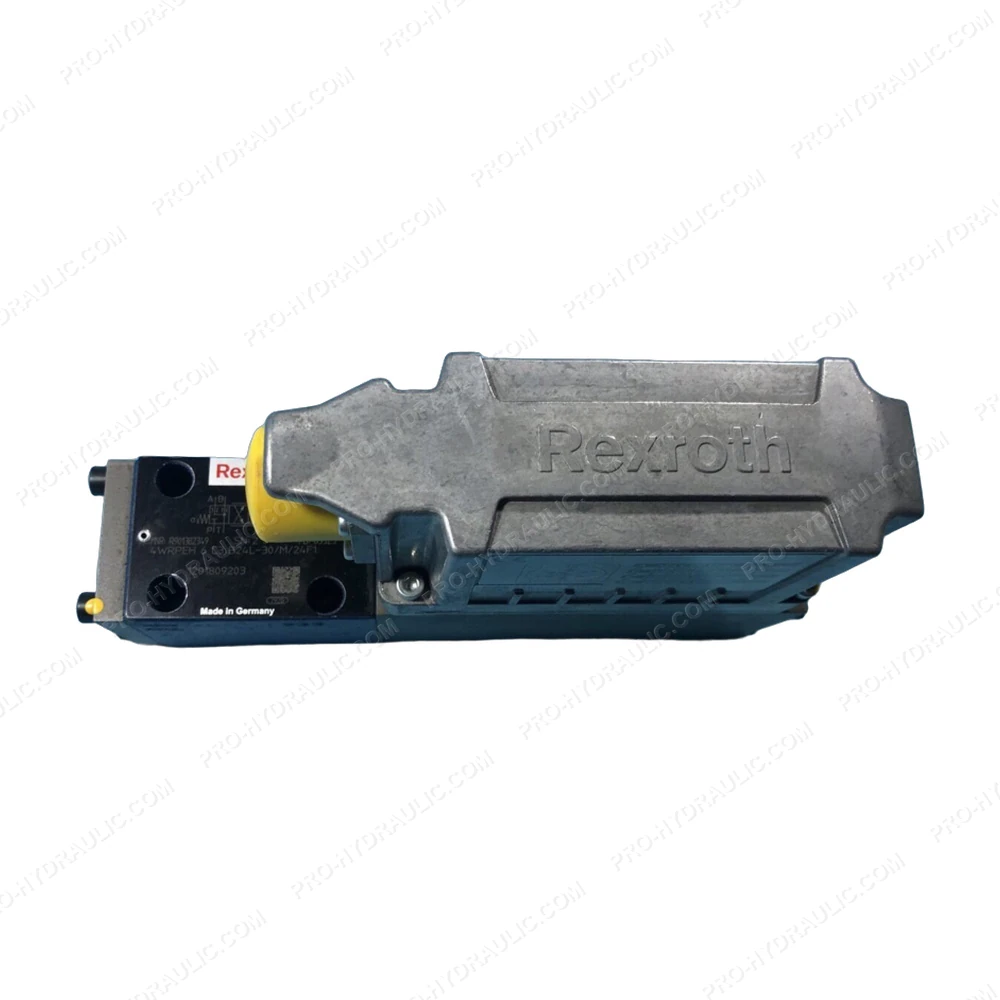

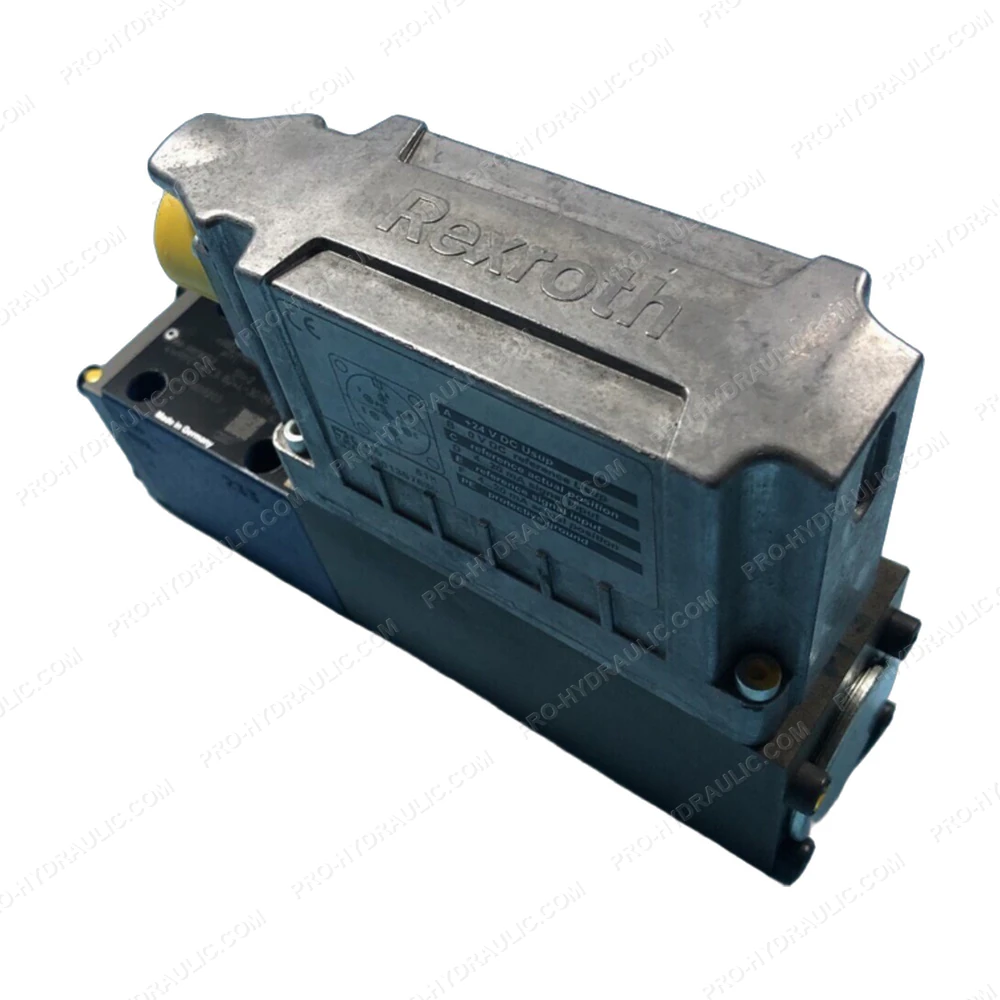

Rexroth R901382354 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth R901382354 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
