Product Overview
The Rexroth R913049024 is a high-performance solenoid-actuated directional spool valve engineered for precise control of hydraulic fluid flow direction, start, stop, and pressure regulation within complex industrial hydraulic circuits. Manufactured by Bosch Rexroth, a global leader in drive and control technology, this valve operates on the proven directional spool principle, utilizing a precision-machined spool within a hardened steel housing to direct flow across multiple ports. As a direct-operated solenoid valve, it provides rapid response times and reliable switching performance, making it an essential control component in demanding hydraulic systems where accurate directional control and leak-free operation are critical. The R913049024 is designed as a direct fit replacement for original Rexroth components, ensuring seamless integration into existing manifolds and hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve |
| Model Designation | R913049024 |
| Manufacturer | Bosch Rexroth |
| Actuation Type | Solenoid Operated (Direct Acting) |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO 4401 / CETOP Interface |
| Seal Material | NBR / FKM (Application Dependent) |
| Fluid Compatibility | Mineral Oil Based Hydraulic Fluids (HL, HLP, HLPD) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened and precision-ground spool delivers accurate flow metering and minimal internal leakage, ensuring consistent directional control and efficient system performance across the full pressure range.
- Rapid Solenoid Response: High-force solenoid actuation enables fast switching times, reducing cycle times and improving overall machine productivity in high-frequency operating conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and wear-resistant spool-housing pairing for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
- Leak-Free Sealing: High-quality sealing elements and precision bore tolerances minimize internal and external leakage, maintaining system pressure integrity and reducing energy loss.
Typical Industrial Applications
The Rexroth R913049024 solenoid directional spool valve is widely deployed in demanding hydraulic systems across multiple heavy industries. It is commonly found in plastic injection molding machines where precise directional control of clamping and injection cylinders is essential. In metallurgical presses and forging equipment, it manages high-pressure flow direction for ram advance, retract, and hold functions. The valve also serves in construction and marine hydraulics, including excavator boom and bucket circuits, as well as in CNC machine tools and automated production lines where reliable
PRODUCT IMAGES

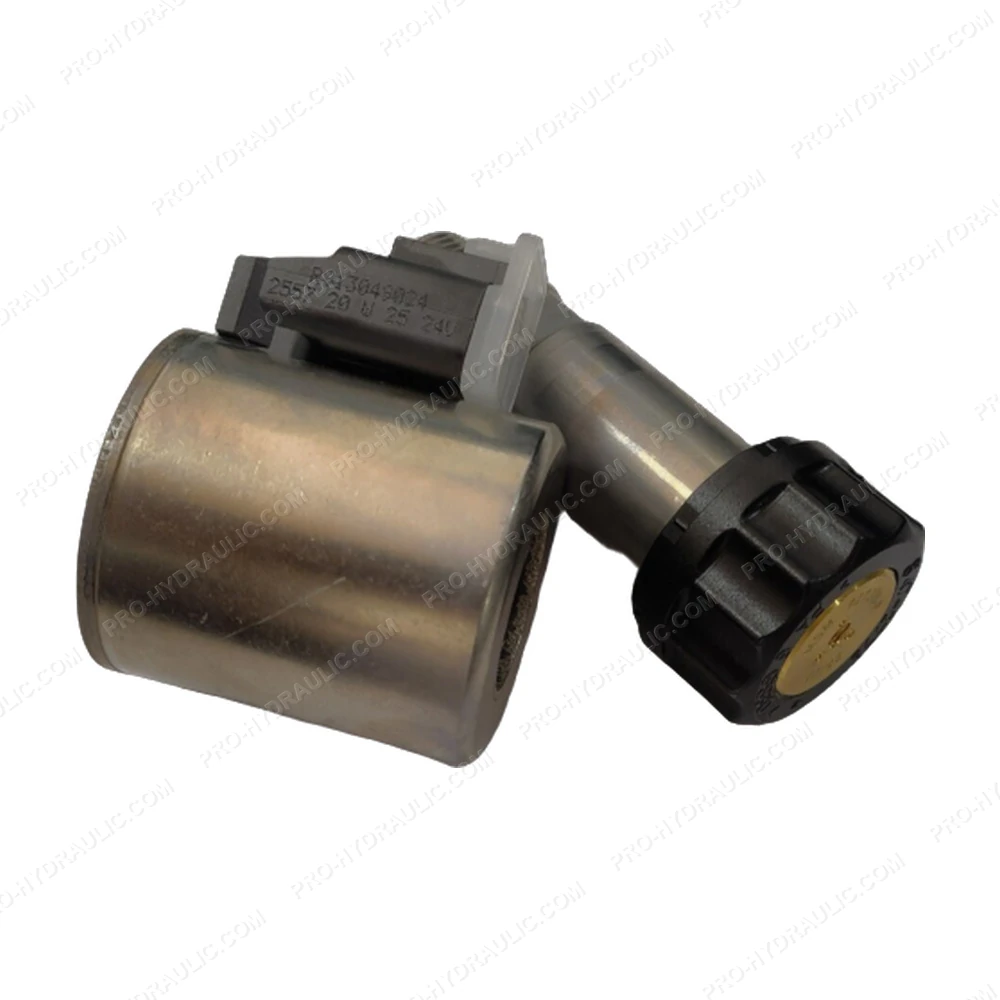

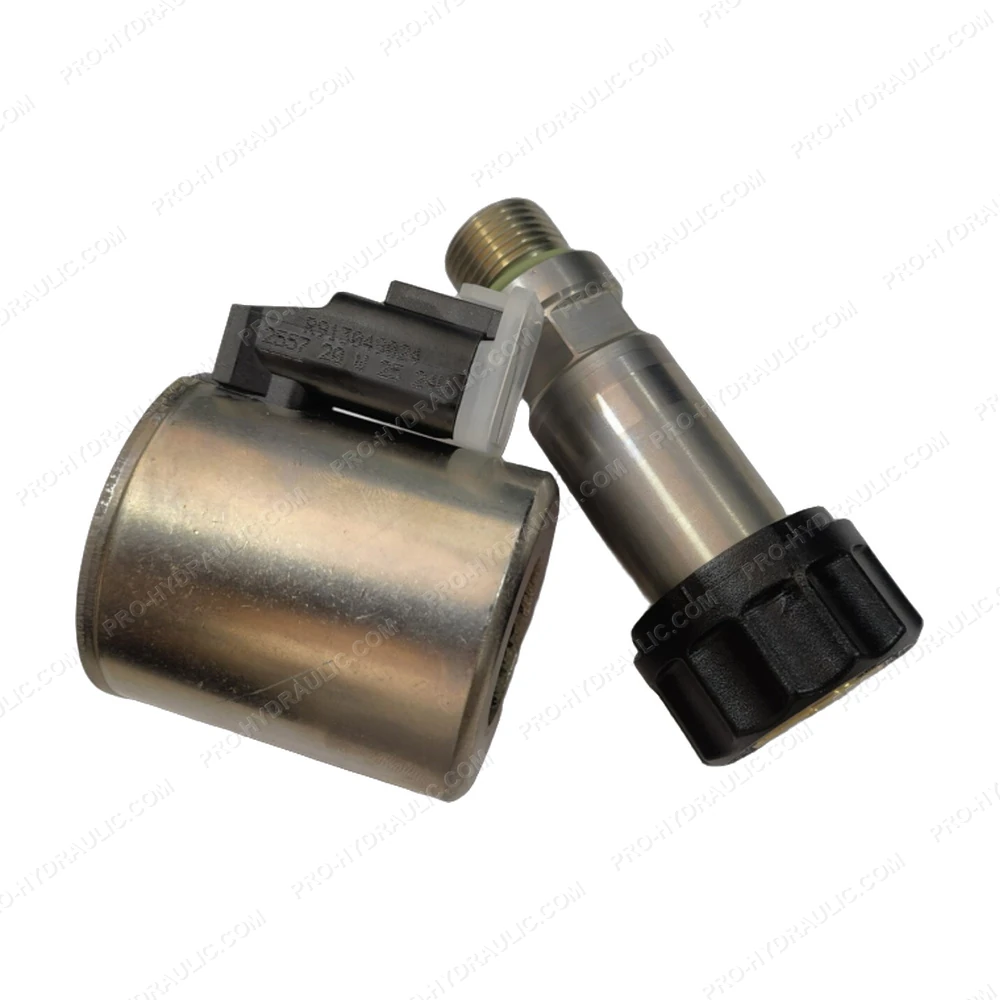

Rexroth R913049024 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH R913049024 Solenoid Directional Spool Valve. This Germany-made hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
