Product Overview
The Rexroth R930006976 is a high-performance solenoid-operated directional spool valve engineered for precise control of hydraulic fluid flow direction, start, stop, and pressure regulation in industrial hydraulic systems. Manufactured by Bosch Rexroth, a global leader in drive and control technology, this valve belongs to the renowned directional spool valve family, designed to deliver reliable switching performance with minimal pressure drop. The R930006976 utilizes a robust solenoid actuation mechanism that shifts a precision-machined spool within a hardened valve body, directing flow between ports with exceptional repeatability. Its direct-acting design ensures fast response times and stable operation, making it an ideal choice for demanding applications requiring accurate directional control, load holding, and system safety interlocking. The valve is engineered to interface seamlessly with standard industrial hydraulic power units and manifolds, providing a critical control layer in complex hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve |
| Model Designation | R930006976 |
| Manufacturer | Bosch Rexroth |
| Actuation Type | Solenoid Actuated (Wet Pin / Dry Type) |
| Spool Configuration | Standard 4-Way, 3-Position (4/3) or 4/2 Configuration |
| Operating Pressure | Up to 350 bar (5075 psi) Nominal |
| Nominal Flow Rate | Up to 80 L/min (21 GPM) Dependent on Spool Type |
| Mounting & Connection | Subplate Mounting per ISO 4401 / DIN 24340 / CETOP 3 (NG6) |
| Electrical Connection | DIN EN 175301-803 (Plug Connector) / Optional M12 |
| Seal Material | NBR (Buna-N) / FKM (Viton) for High-Temp Options |
| Fluid Compatibility | Mineral Oil Based Hydraulic Fluids (HL, HLP, HLPD, HVLP) |
Engineering Features & Advantages
- Precision Performance: The solenoid directional spool valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The valve is engineered to interface seamlessly with standard industrial hydraulic power units and manifolds, providing a critical control layer in complex hydraulic circuits.
PRODUCT IMAGES

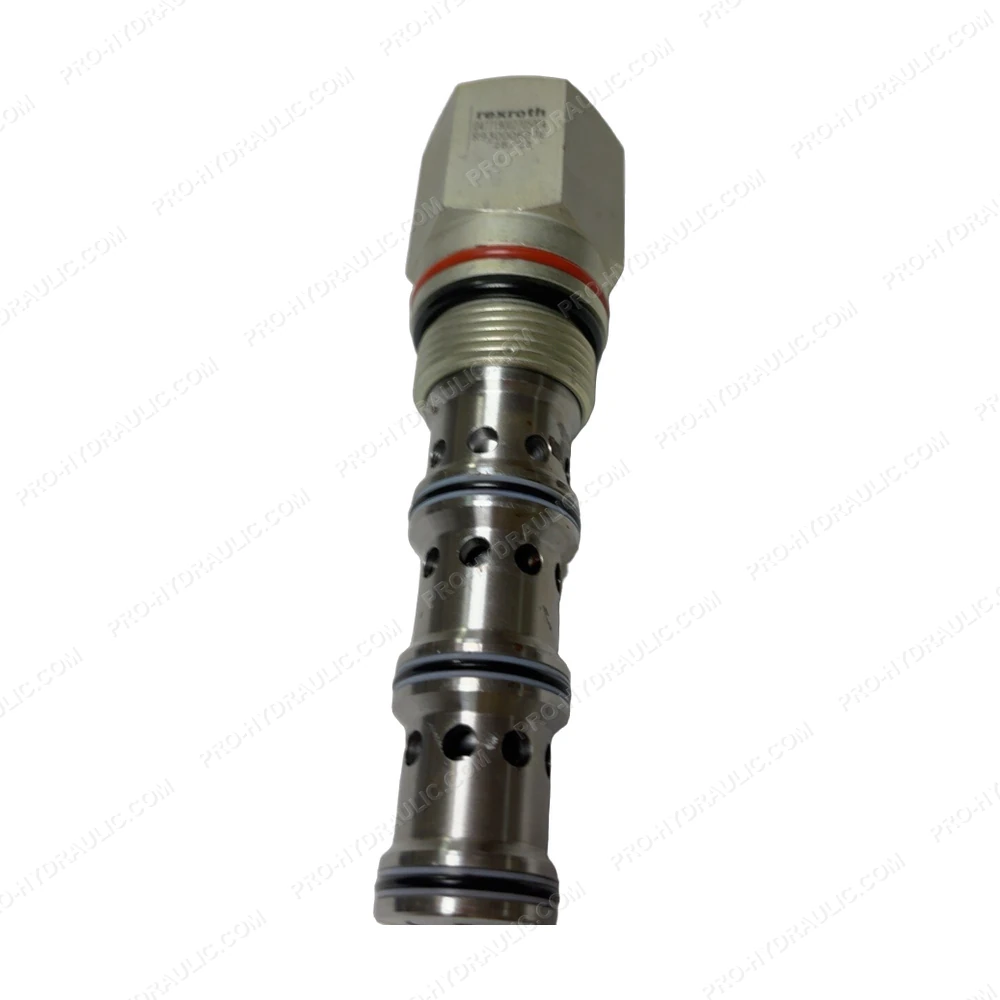

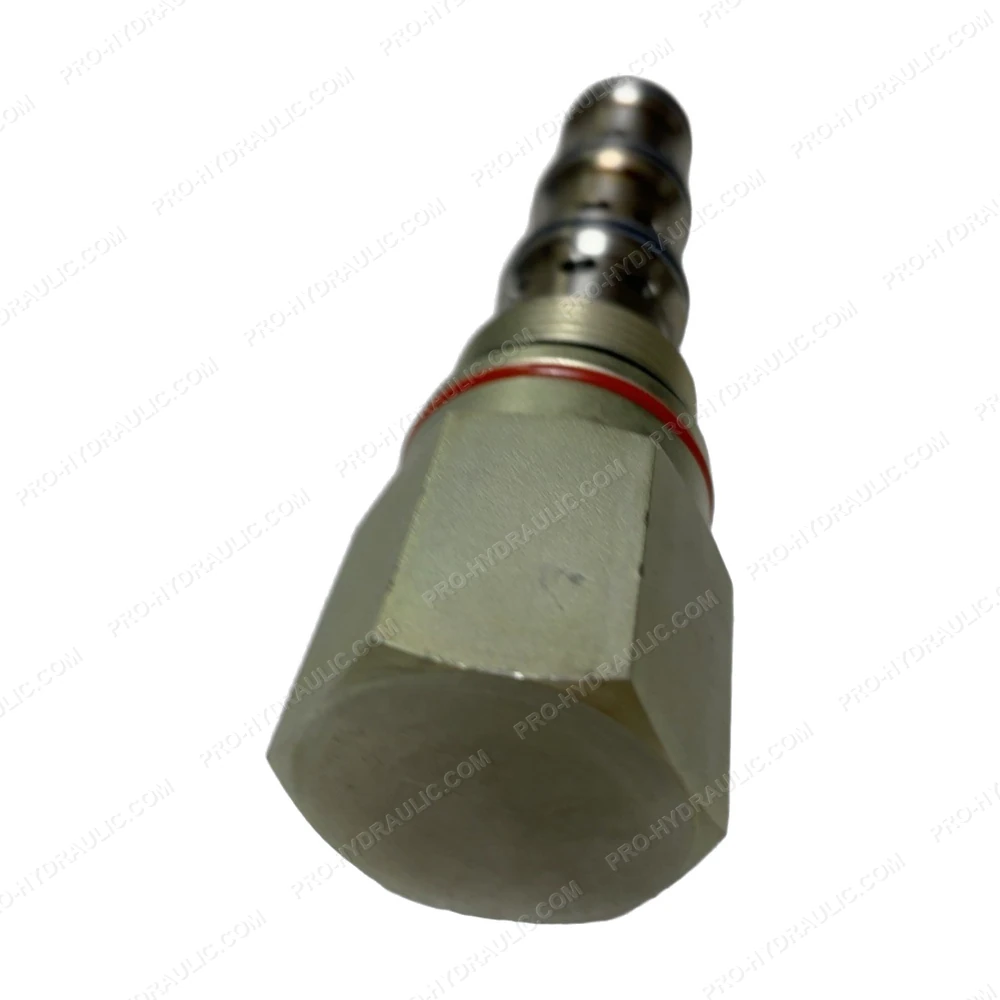

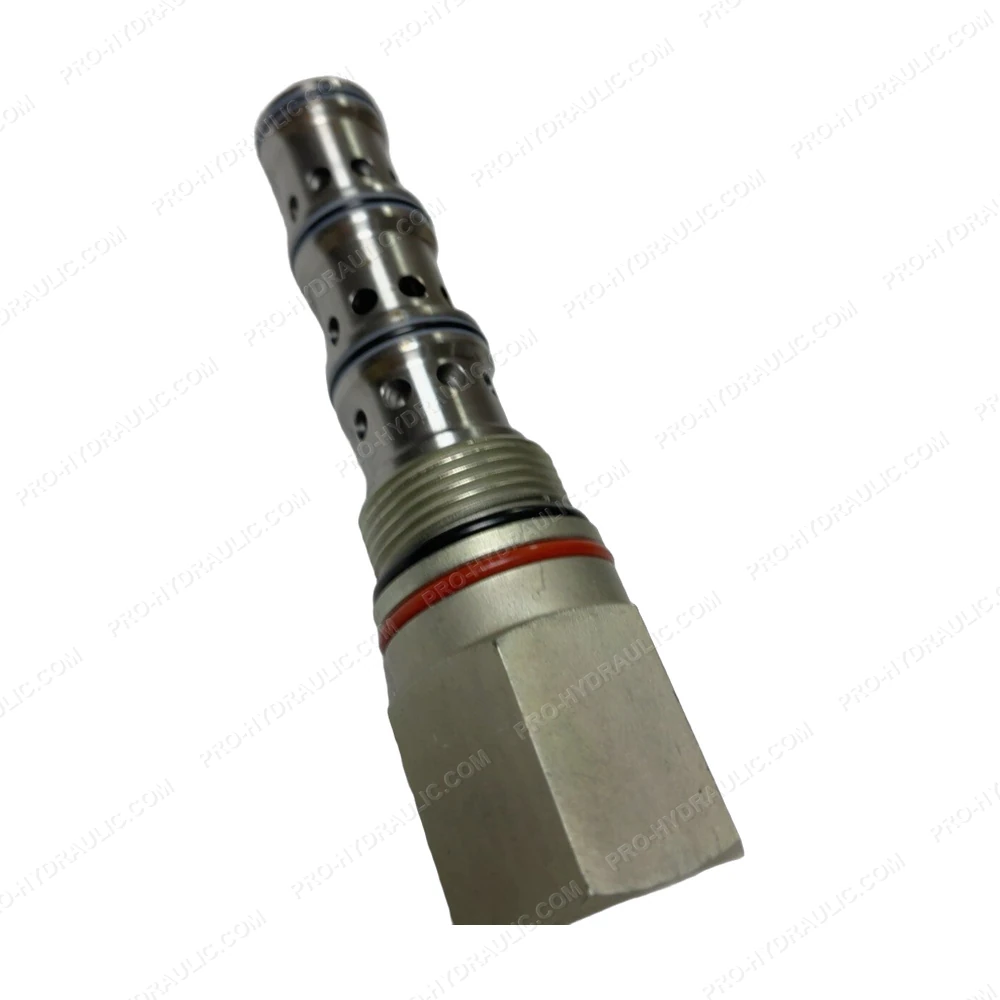

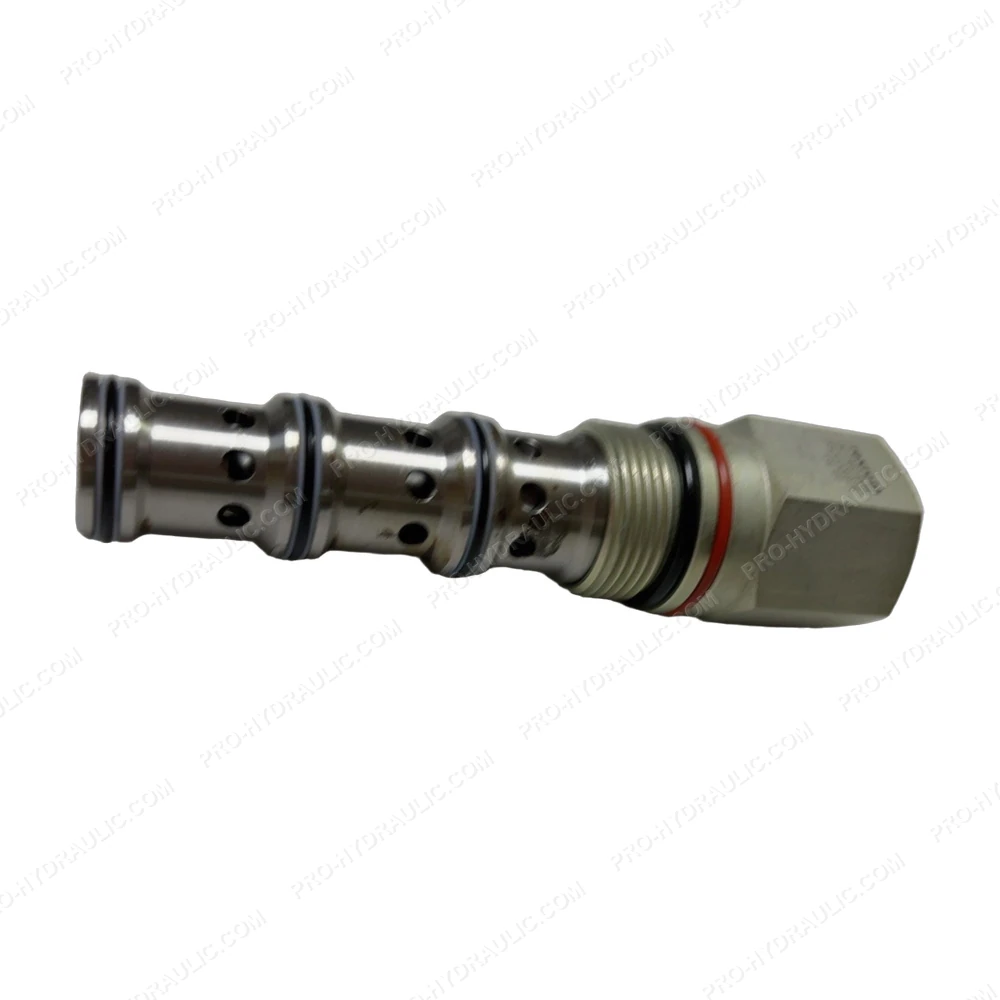

Rexroth R930006976 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH R930006976 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
