Product Overview
The Rexroth R930070968 is a high-performance directional cartridge valve engineered by Bosch Rexroth for precise control of hydraulic fluid flow direction within compact manifold and block installations. As a member of the Rexroth directional spool valve family, this cartridge-style component utilizes a hardened, precision-ground spool that slides within a close-tolerance sleeve to route pressurized oil between ports with minimal internal leakage. The R930070968 is designed for direct insertion into standardized cavities, eliminating the need for separate subplates and reducing overall system footprint. It serves as a critical control element in industrial hydraulic circuits, enabling reliable directional switching, load holding, and actuator sequencing in demanding continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Directional Cartridge Valve (Spool Type) |
| Model Designation | R930070968 |
| Manufacturer | Bosch Rexroth |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Actuation Type | Solenoid / Pilot / Manual (per cartridge configuration) |
| Spool Configuration | Precision-ground sliding spool with hardened sleeve |
| Mounting & Connection | Standard ISO / Rexroth cartridge cavity interface |
| Sealing | NBR / FKM O-ring and back-up ring assembly |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP, HVLP) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, lapped spool-to-sleeve fit ensures minimal internal leakage and repeatable directional control, delivering accurate flow metering and stable actuator response across the full pressure range.
- Compact Cartridge Design: The slip-in cartridge format allows direct installation into standardized manifold cavities, reducing plumbing complexity, minimizing pressure drop, and saving valuable installation space in dense hydraulic power units.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with wear-resistant spool surfaces and robust sealing that withstand high cycle rates and pressure spikes.
- Fast Response Actuation: Optimized spool geometry and low-friction guidance enable rapid shifting times, making the valve suitable for high-cycle directional control and sequencing tasks.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in interchangeability without modification to existing cavities or circuits.
Typical Industrial Applications
The Rexroth R930070968 directional cartridge valve is widely deployed in plastic injection molding machines for mold open/close and ejector sequencing,
PRODUCT IMAGES

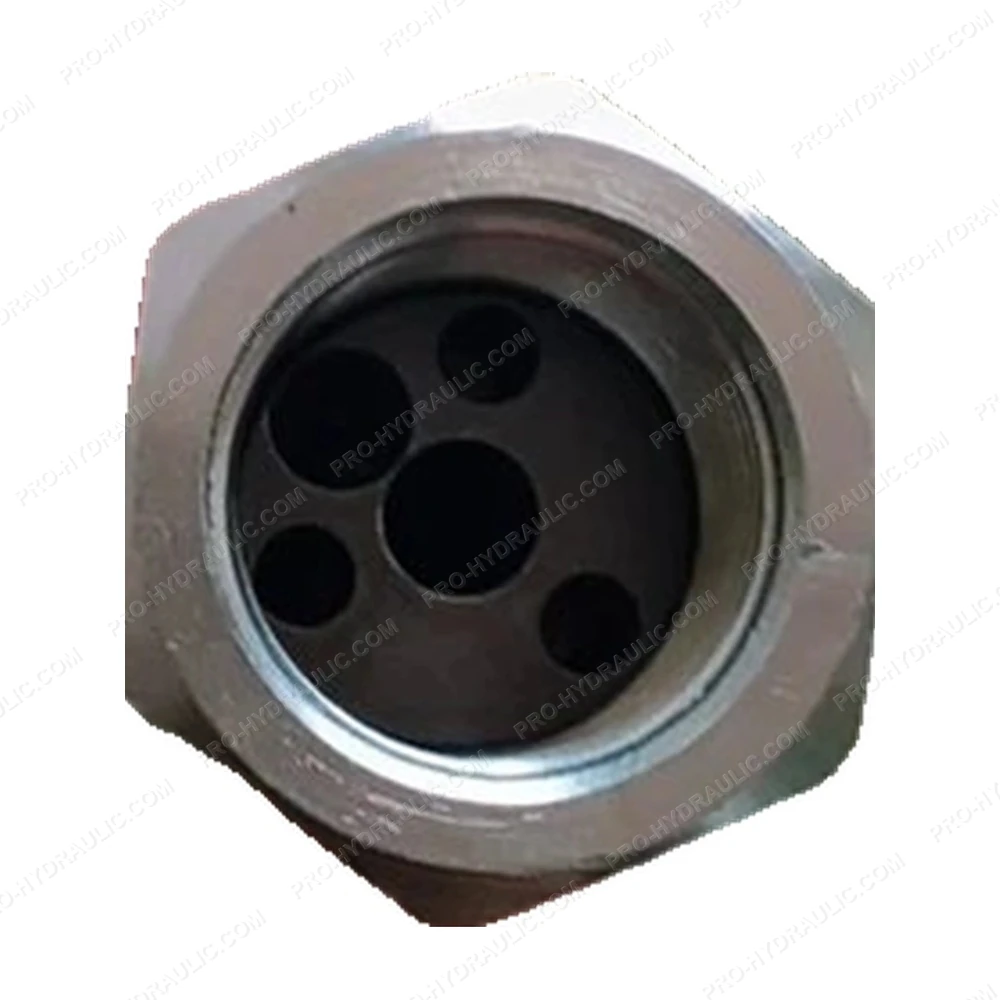

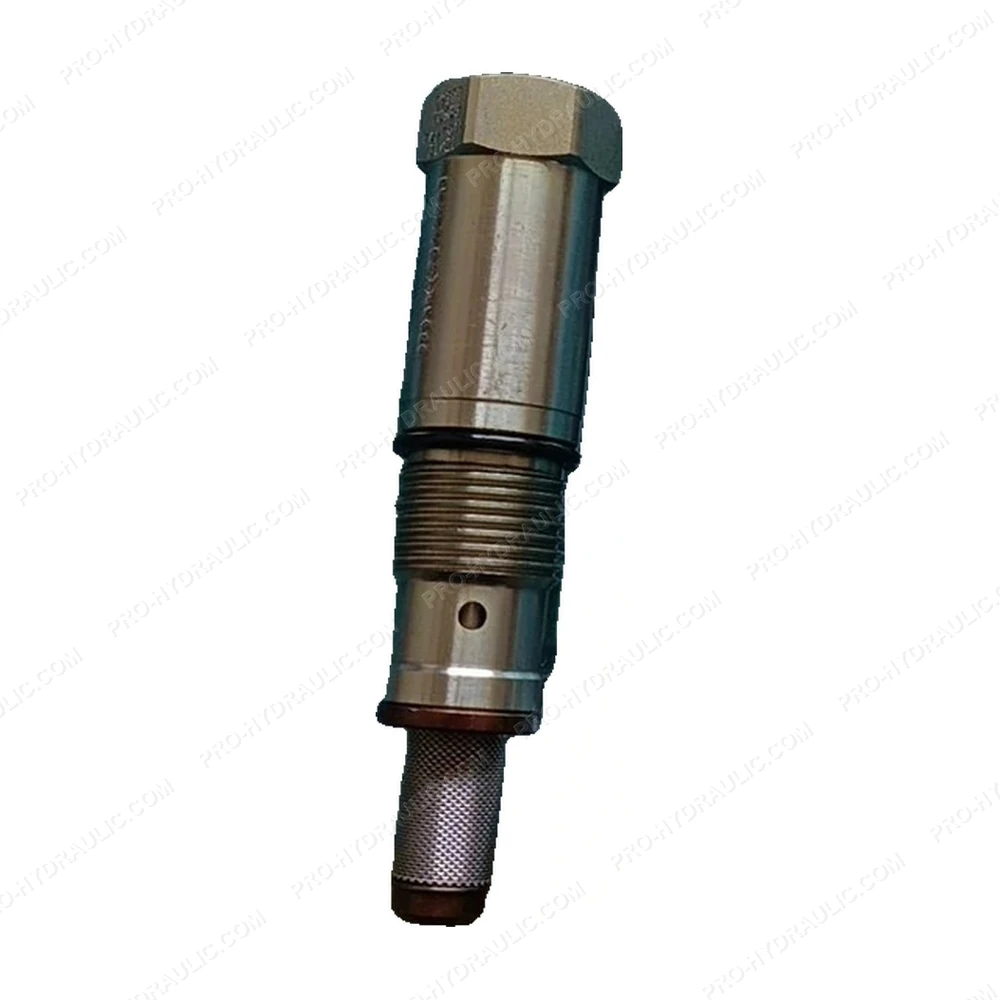

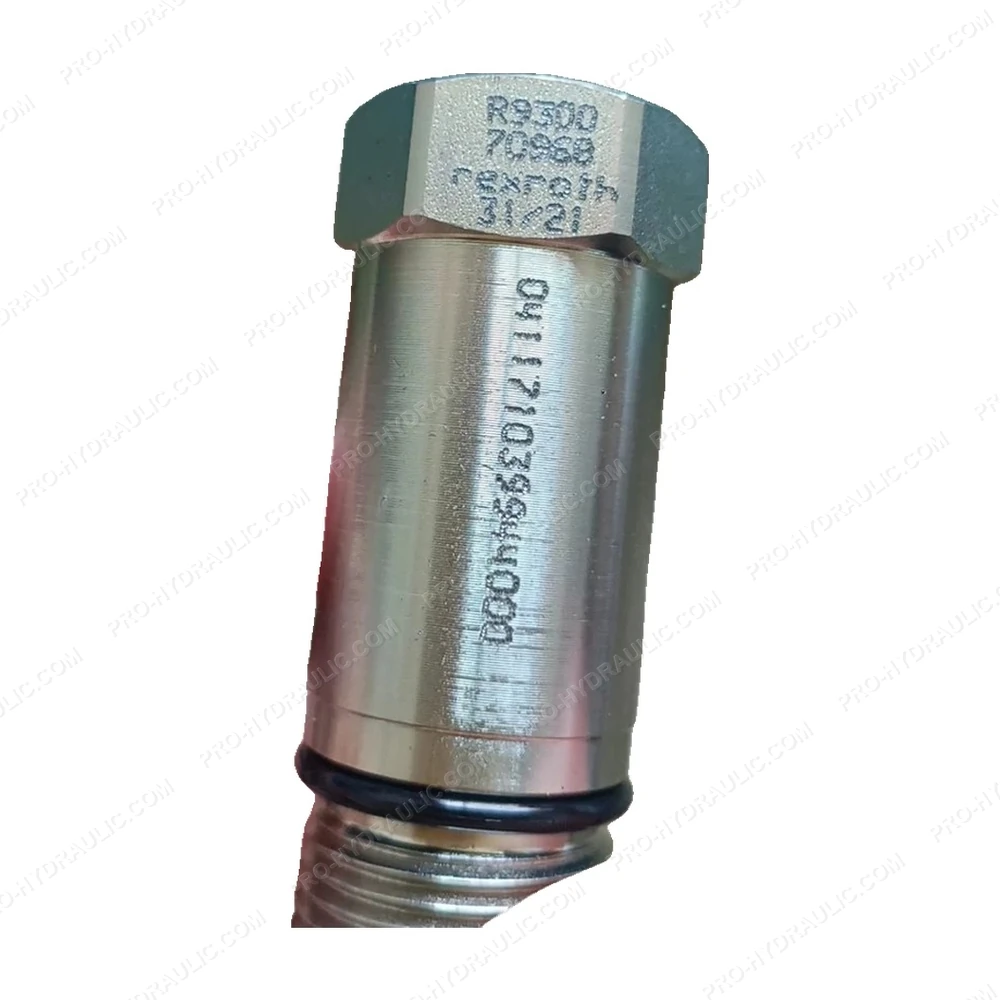

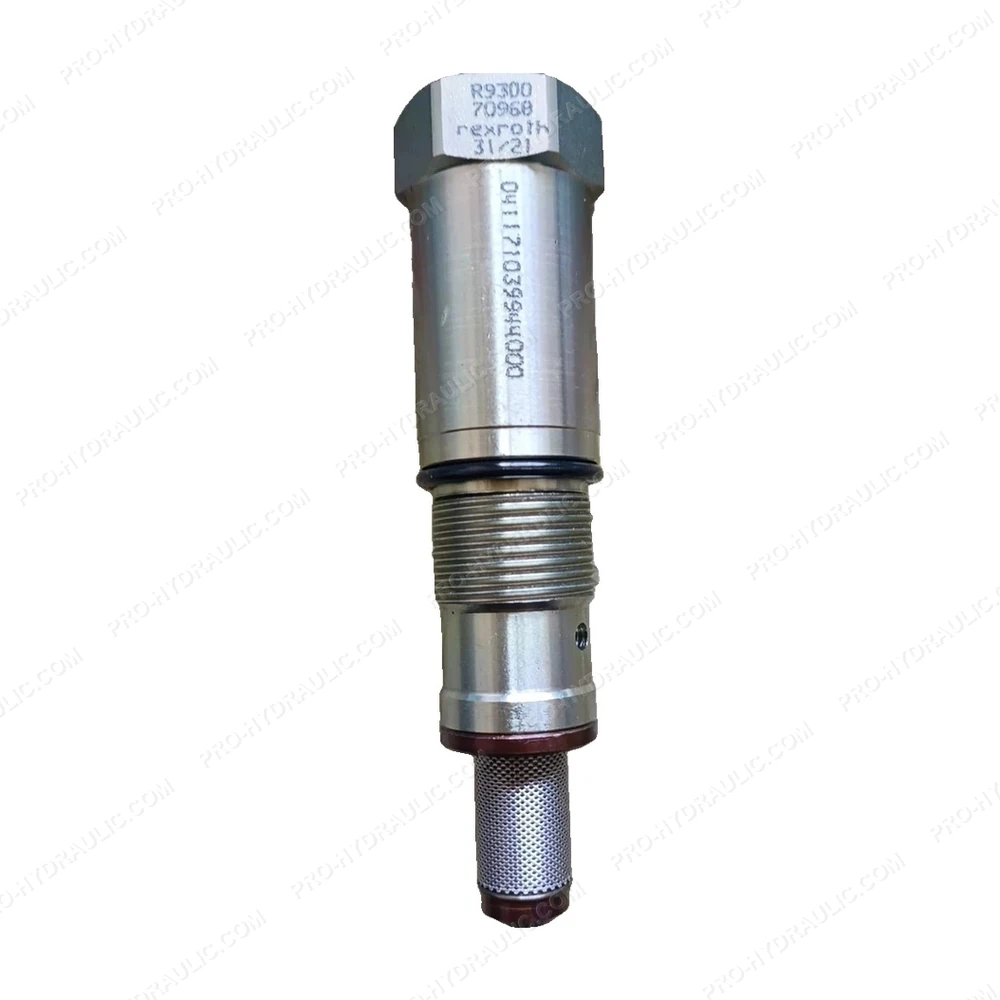

Rexroth R930070968 Directional Cartridge Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH R930070968 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
