Product Overview
The Rexroth STW0195-23/2VS-24F6 (Material Number R901361133) is a high-performance directional spool valve engineered by Bosch Rexroth for precise control of hydraulic fluid flow direction, start, stop, and load holding in demanding industrial circuits. As part of the Rexroth directional spool valve family, this unit utilizes a hardened, precision-ground spool within a high-tensile cast iron housing to deliver reliable switching and leak-resistant sealing across the full rated pressure range. The 24F6 designation indicates a 24 V DC solenoid actuation with a specific spool configuration, enabling direct electrical control from PLC or relay logic. This valve is designed as a direct-fit replacement for OEM installations, ensuring dimensional and functional interchangeability with original Rexroth specifications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Directional Control Valve (Directional Spool Valve) |
| Model Designation | STW0195-23/2VS-24F6 / R901361133 |
| Actuation Type | 24 V DC Solenoid Actuated (24F6 configuration) |
| Spool Configuration | 2-Position, Spring Return / Detent (per 2VS designation) |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Nominal Flow Rate | Up to 60 L/min (dependent on spool position and pressure differential) |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 Subplate Interface |
| Sealing Material | NBR (Nitrile) / FKM (Viton) options per application |
| Electrical Connection | DIN 43650 / ISO 4400 Connector |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and matched bore deliver accurate flow metering and minimal internal leakage, ensuring repeatable directional control and reliable load holding in critical circuits.
- Fast Solenoid Response: The 24 V DC wet-pin solenoid provides rapid, consistent actuation with low hysteresis, enabling high-cycle operation and precise integration with PLC-based control systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust cast iron housing and wear-resistant spool surfaces that withstand high pressure and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth standards, including mounting pattern, port locations, and electrical interface, minimizing downtime during changeouts.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The Rexroth STW0195-23/2VS-24F6 (Material Number R901361133) is a high-performance directional spool valve engineered by Bosch Rexroth for precise control of hydraulic fluid flow direction, start, stop, and load holding in demanding industrial circuits.
PRODUCT IMAGES

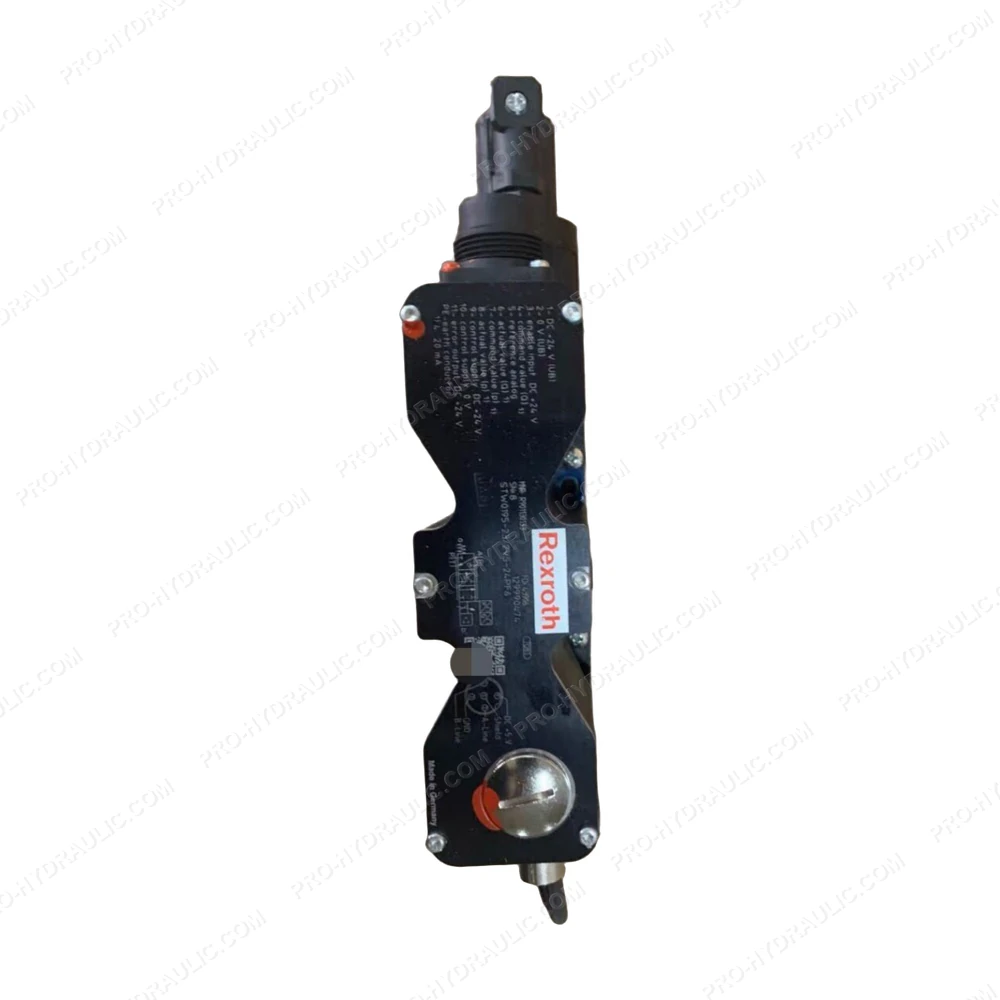

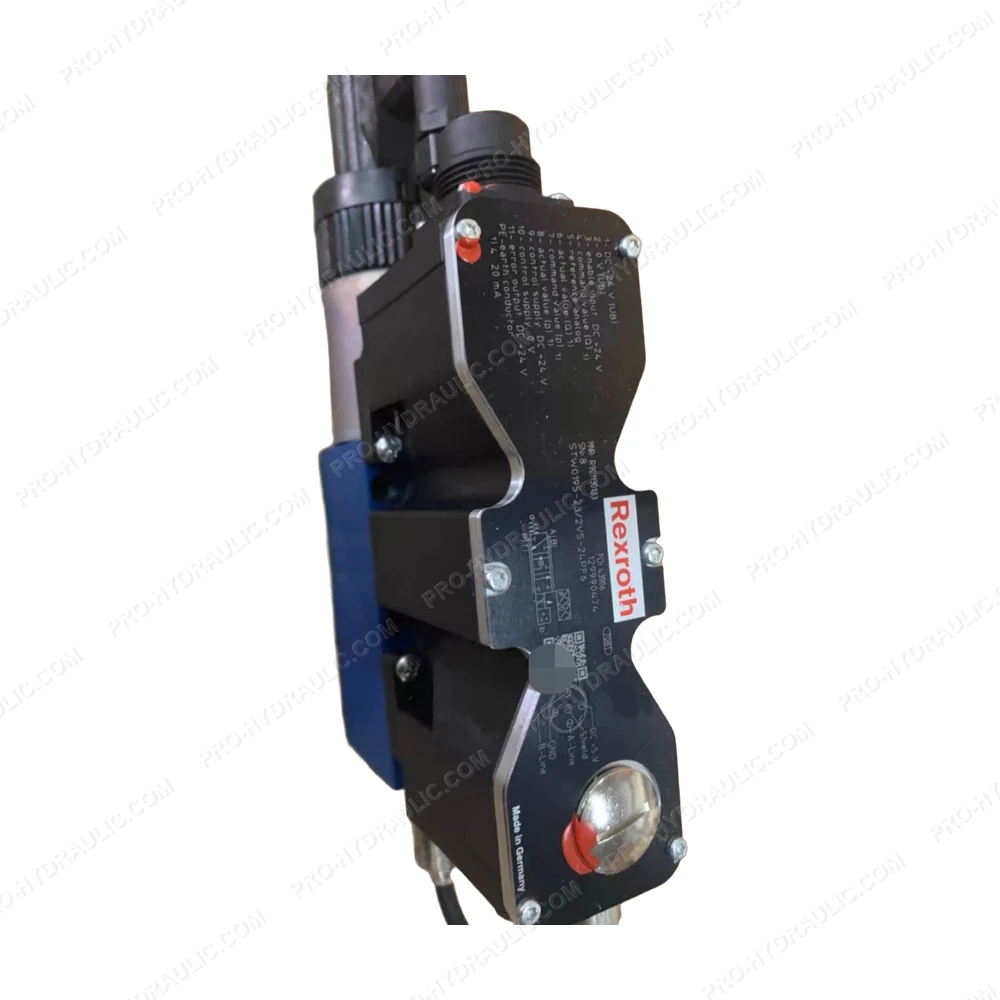

Rexroth STW0195-23/2VS-24F6 / R901361133 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth STW0195-23/2VS-24F6 / R901361133 Solenoid Directional Valve. This Germany-made 24V hydraulic component features a 2-way directional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
