Product Overview
The Rexroth STW0196-13-1V5-24CF600011 (Material Number: R901098537) is a high-performance directional spool valve engineered by Bosch Rexroth for precise control of hydraulic fluid flow direction, distribution, and pressure in demanding industrial circuits. Operating on the proven spool-valve principle, this component directs pressurized fluid to specific actuator ports to extend, retract, or hold loads in position. As part of Rexroth’s renowned directional valve portfolio, it delivers fast, repeatable switching behavior, minimal internal leakage, and long service life, making it a critical control element in complex hydraulic power units, manifolds, and machine control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Directional Control Valve (Directional Spool Valve) |
| Model Designation | STW0196-13-1V5-24CF600011 / R901098537 |
| Manufacturer | Bosch Rexroth |
| Actuation Type | Solenoid / Electrical Actuation (24 V DC class) |
| Spool Configuration | Multi-position spool with defined flow paths and center condition |
| Operating Pressure | Standard Industrial Grade (up to rated bar per Rexroth series) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (subplate or manifold mounting) |
| Sealing | NBR / FKM options for mineral oil and selected hydraulic fluids |
Engineering Features & Advantages
- Precision Spool Metering: Tightly toleranced spool-to-bore clearance ensures accurate flow direction control, minimal internal leakage, and consistent response across the operating envelope.
- Fast Solenoid Response: Optimized solenoid and spring return design delivers rapid, repeatable shifting for high-cycle industrial duty.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including elevated pressures, contamination exposure, and high duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth standards, ensuring drop-in interchangeability for STW0196-13-1V5-24CF600011 / R901098537.
- Robust Construction: Durable housing and hardened spool surfaces resist wear and extend maintenance intervals in demanding hydraulic circuits.
Typical Industrial Applications
This Rexroth directional spool valve is widely deployed in plastic injection molding machines, metallurgical presses, CNC machine tools, construction and marine hydraulic systems, and general industrial hydraulic power units where precise directional control, fast actuation, and reliable long-term performance are essential.
PRODUCT IMAGES

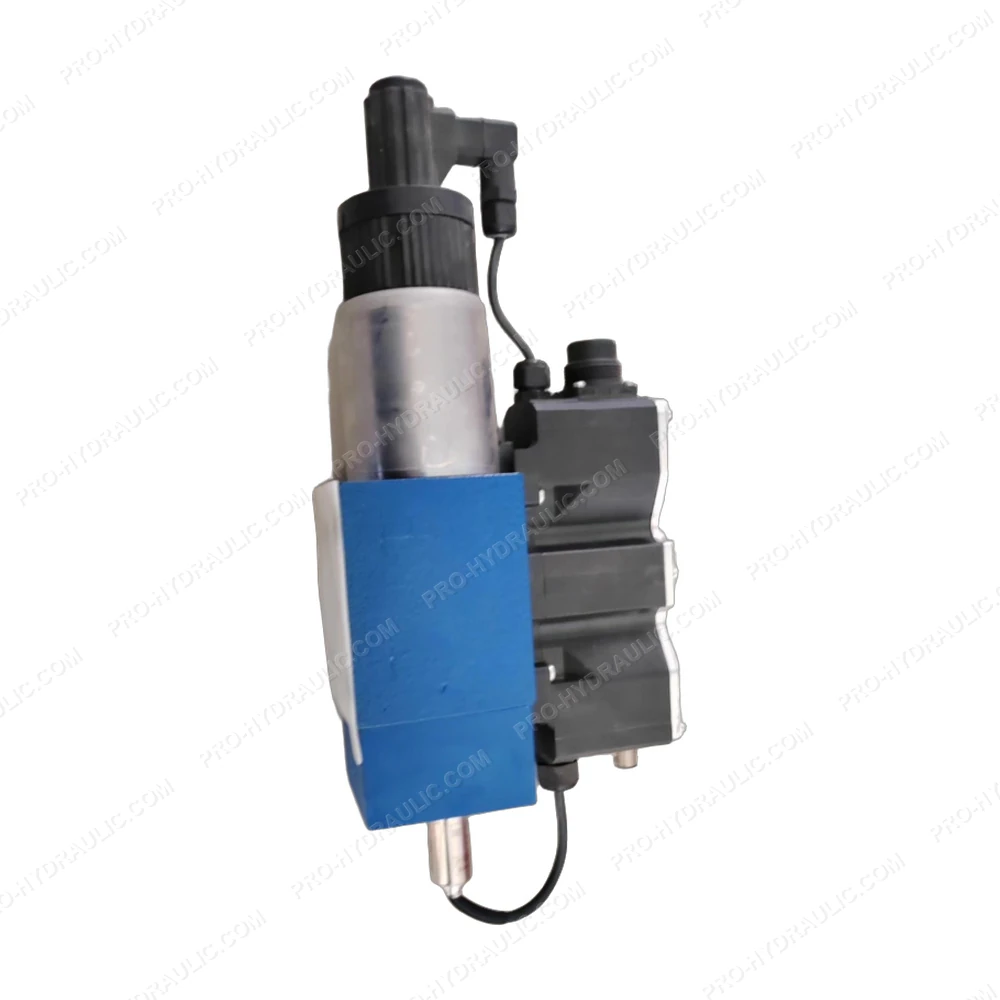

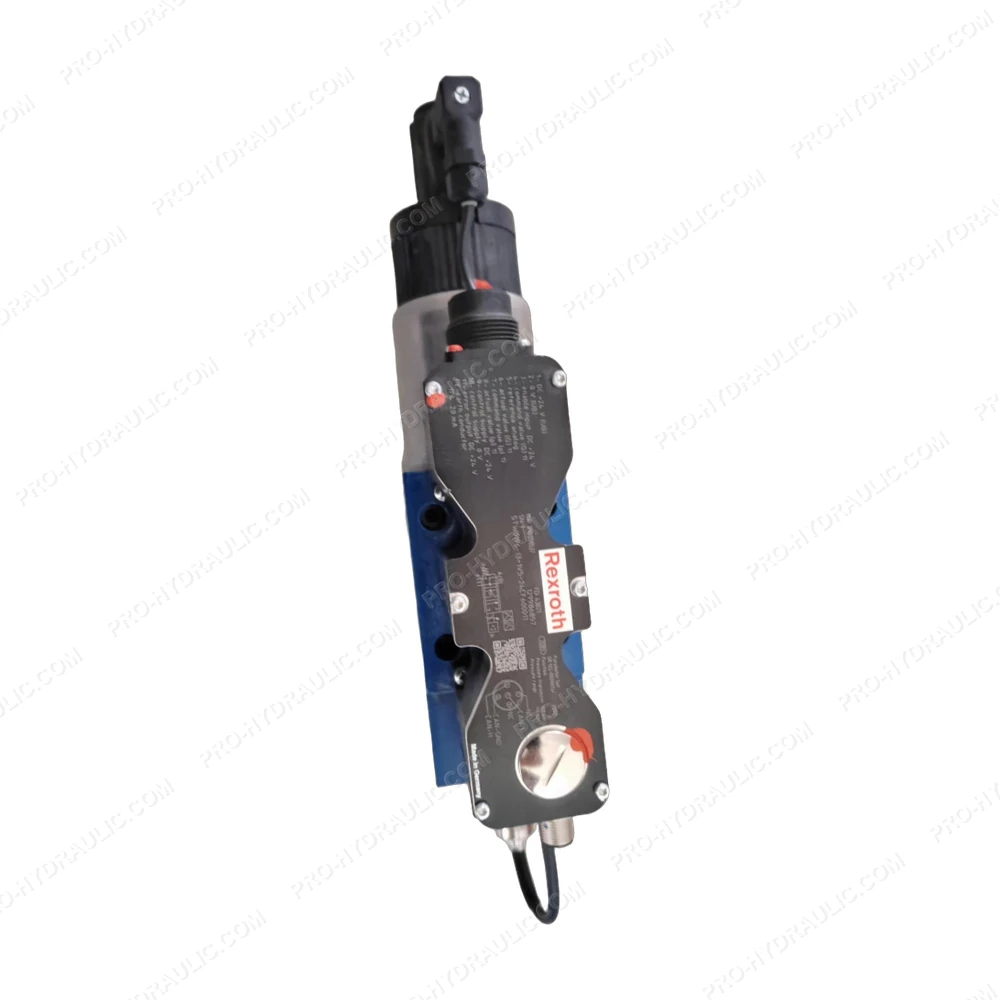

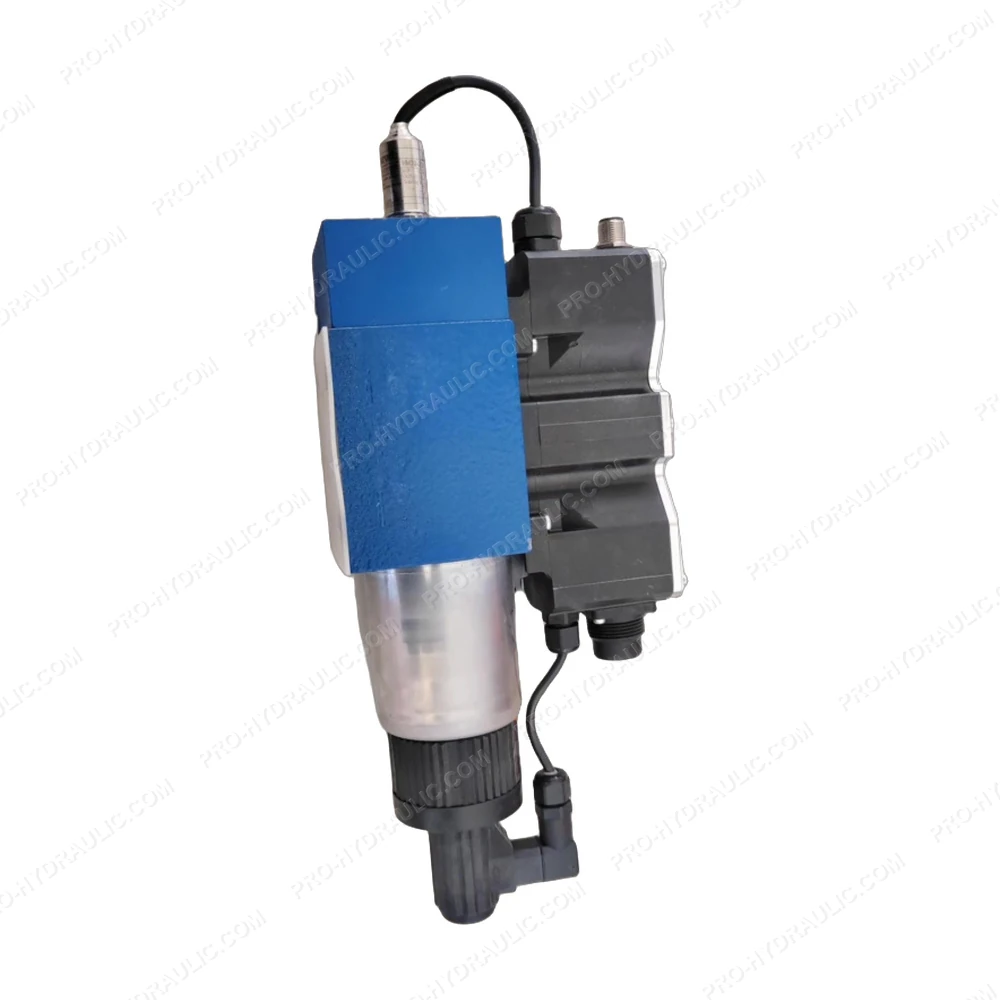

Rexroth STW0196-13-1V5-24CF600011 / R901098537 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH STW0196-13-1V5-24CF600011 / R901098537 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
