Product Overview
The Rexroth SV30PA3-4X/V (Material Number: R901137253) is a pilot-operated check valve designed for leak-free load holding and controlled flow in industrial hydraulic systems. As part of the Rexroth SV series, this valve is a modular, sandwich-style component that mounts between a directional control valve and its subplate, providing reliable blocking of flow in one direction while allowing free flow in the opposite direction. The pilot-operated design enables the valve to be opened hydraulically when system pressure is applied to the pilot port, making it ideal for applications requiring load holding, cylinder locking, or prevention of drift in vertical or clamping circuits. The SV30PA3-4X/V is engineered for high-pressure industrial use and is fully compatible with standard ISO 4401 mounting interfaces, ensuring seamless integration into existing hydraulic manifolds and power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Pilot Operated Check Valve (Modular / Sandwich Plate) |
| Model Designation | SV30PA3-4X/V / R901137253 |
| Operating Pressure | Up to 315 bar (standard industrial grade) |
| Nominal Flow Rate | Up to 60 L/min (dependent on circuit configuration) |
| Pilot Ratio | Standard pilot ratio (e.g., 1:4.5 or 1:10 depending on variant) |
| Mounting & Connection | ISO 4401 / DIN 24340 standard interface, sandwich mounting |
| Seal Material | NBR (Buna-N) standard; FKM available on request |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP, HVLP) |
| Operating Temperature | -20°C to +80°C (standard NBR seals) |
Engineering Features & Advantages
- Precision Performance: The pilot-operated check valve provides zero-leak blocking in the closed direction, ensuring secure load holding and preventing actuator drift in critical positioning applications. The pilot piston opens the poppet precisely when pilot pressure is applied, allowing controlled return flow.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the SV30PA3-4X/V features a robust housing and hardened internal components that resist wear, contamination, and pressure spikes, ensuring long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including ISO 4401 mounting patterns, making it a drop-in replacement for existing Rexroth SV series valves without modification.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The SV30PA3-4X/V is engineered for high-pressure industrial use and is fully compatible with standard ISO 4401 mounting interfaces, ensuring seamless integration into existing hydraulic manifolds and power units.
PRODUCT IMAGES

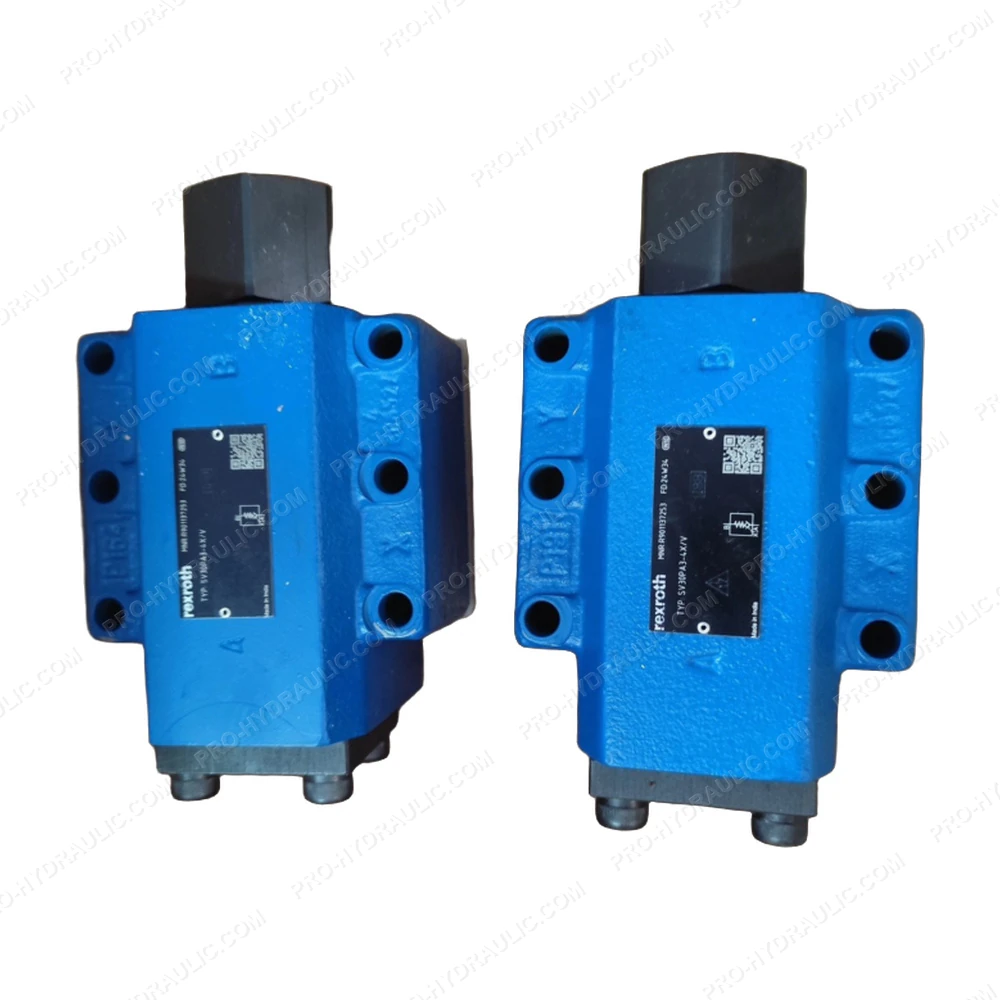

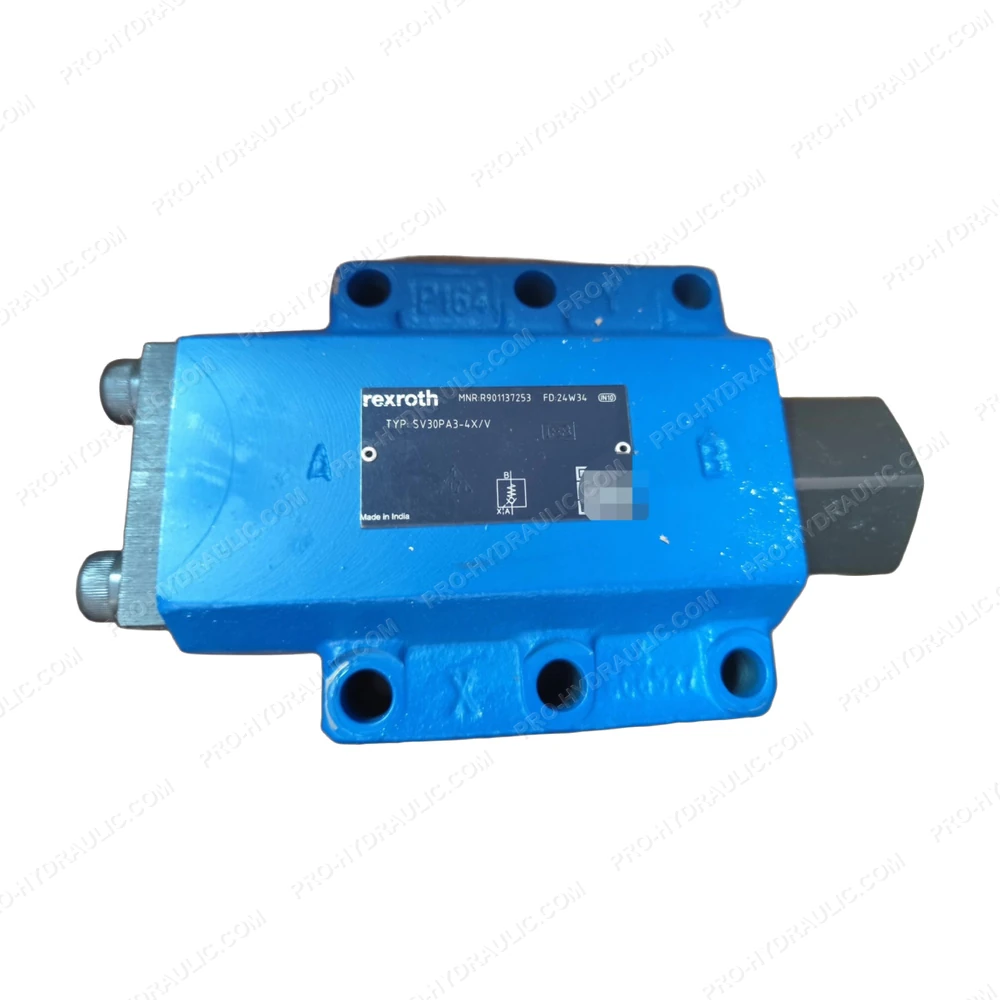

Rexroth SV30PA3-4X/V / R901137253 Pilot Operated Check Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH SV30PA3-4X/V / R901137253 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
