Product Overview
The Rexroth URPX-10A-20 (Material Number: R901106468) is a direct-operated pressure relief valve engineered for precise system pressure limitation and overload protection in industrial hydraulic circuits. As part of the Rexroth URPX series, this valve operates on a spring-loaded poppet principle, where a pre-set compression spring holds the poppet against the seat until system pressure generates sufficient force to lift the poppet and divert excess flow to the tank port. This design delivers fast, reliable response to pressure surges and maintains stable system pressure across varying flow conditions. The URPX-10A-20 is a compact, cartridge-style valve suited for manifold or block mounting, making it an ideal choice for hydraulic power units, test stands, and machine tool hydraulic systems requiring dependable pressure control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Control Valve — Direct-Operated Pressure Relief Valve |
| Model Designation | URPX-10A-20 / R901106468 |
| Manufacturer | Bosch Rexroth |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per adjustment range) |
| Actuation Type | Direct spring-loaded poppet, manually adjustable pressure setting |
| Mounting & Connection | Standard ISO / Manufacturer Interface — cartridge-style block or manifold mounting |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP) per DIN 51524 |
Engineering Features & Advantages
- Precision Performance: Direct-operated poppet design provides rapid response to pressure spikes and accurate, repeatable cracking pressure for consistent system protection.
- Stable Pressure Regulation: Spring-loaded poppet maintains minimal pressure override across the operating flow range, ensuring stable downstream pressure under dynamic load conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with hardened internal components and a robust valve body resistant to wear and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in interchangeability with the Rexroth URPX-10A-20 and material number R901106468.
- Compact Cartridge Construction: Space-saving design simplifies integration into existing manifold blocks and hydraulic power unit assemblies.
Typical Industrial Applications
The Rexroth URPX-10A-20 pressure relief valve is widely deployed in hydraulic power units and industrial machinery requiring reliable overpressure protection. Typical applications include plastic injection molding machines, metallurgical presses and rolling mills, CNC machine tool hydraulic systems, construction and marine hydraulic circuits, and hydraulic test stands where precise pressure limitation is critical to system safety and component longevity.
PRODUCT IMAGES

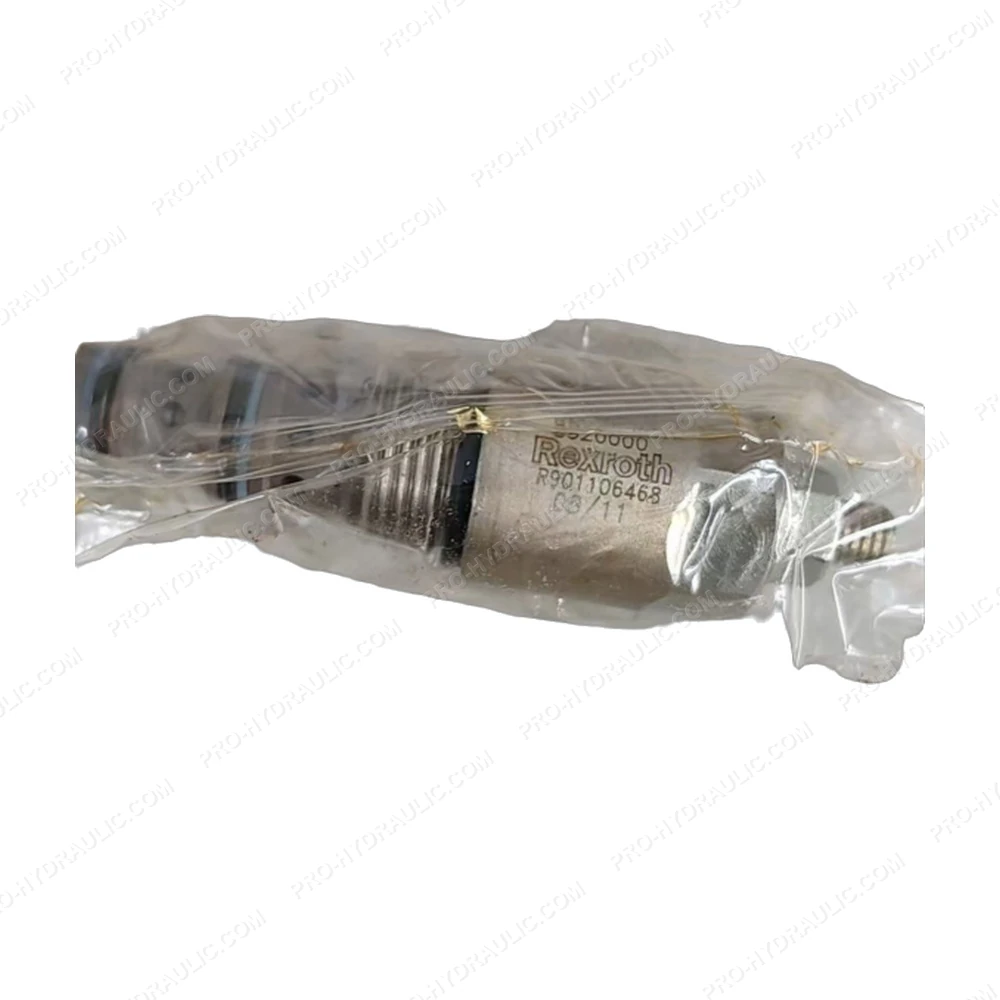

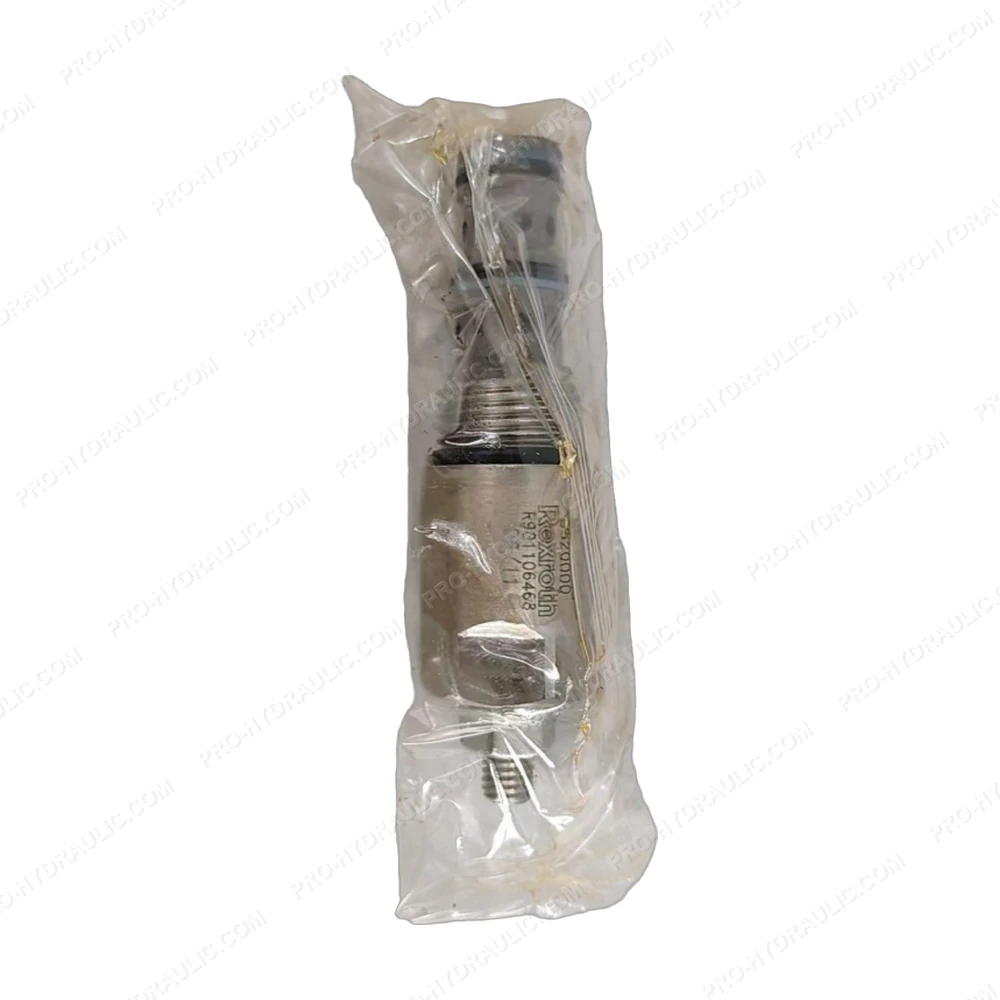

REXROTH URPX-10A-20 / R901106468 Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH URPX-10A-20 / R901106468 Pressure Relief Valve. This German-made hydraulic component features a direct-acting poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
