Product Overview
The Rexroth WE6E6X/EG24NXEZ2/V (Material No. R901009182) is a direct-operated, solenoid-actuated directional spool valve from the proven WE6 series, size NG6 (CETOP 3 / ISO 4401-03). It controls the start, stop, and direction of hydraulic fluid flow in industrial power circuits by shifting a hardened, precision-ground spool within the valve body. The “E” spool configuration provides a closed-center, three-position function with all ports blocked in the neutral position, making it suitable for holding loads and positioning actuators without drift. The integrated wet-pin AC/DC solenoid (24 V DC, “G24N” designation) delivers fast, reliable spool actuation with high switching force and long service life, while the “Z2” electrical variant denotes a specific terminal/connector configuration for clean integration into modern control cabinets. As a core component in Rexroth’s modular valve program, this unit serves as a dependable interface between electronic control systems and hydraulic actuators in demanding industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (Direct-Operated) |
| Model Designation | WE6E6X/EG24NXEZ2/V / R901009182 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03-02-0-05) |
| Spool Type / Function | Type “E” — 3-position, 4-way, closed center (all ports blocked in neutral) |
| Actuation | Single wet-pin solenoid, spring return to neutral |
| Solenoid Voltage | 24 V DC (G24N high-performance solenoid) |
| Operating Pressure | Up to 350 bar (P, A, B ports); standard industrial grade |
| Nominal Flow Rate | Up to 60 L/min (NG6 standard) |
| Mounting & Connection | Subplate mounting per ISO 4401-03; electrical connection via “Z2” terminal box |
| Hydraulic Fluid | Mineral oil / HLP, HLVP per DIN 51524; viscosity 2.8–500 mm²/s |
Engineering Features & Advantages
- Precision Performance: The integrated single wet-pin solenoid, spring return to neutral ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
As a core component in Rexroth’s modular valve program, this unit serves as a dependable interface between electronic control systems and hydraulic actuators in demanding industrial machinery.
PRODUCT IMAGES

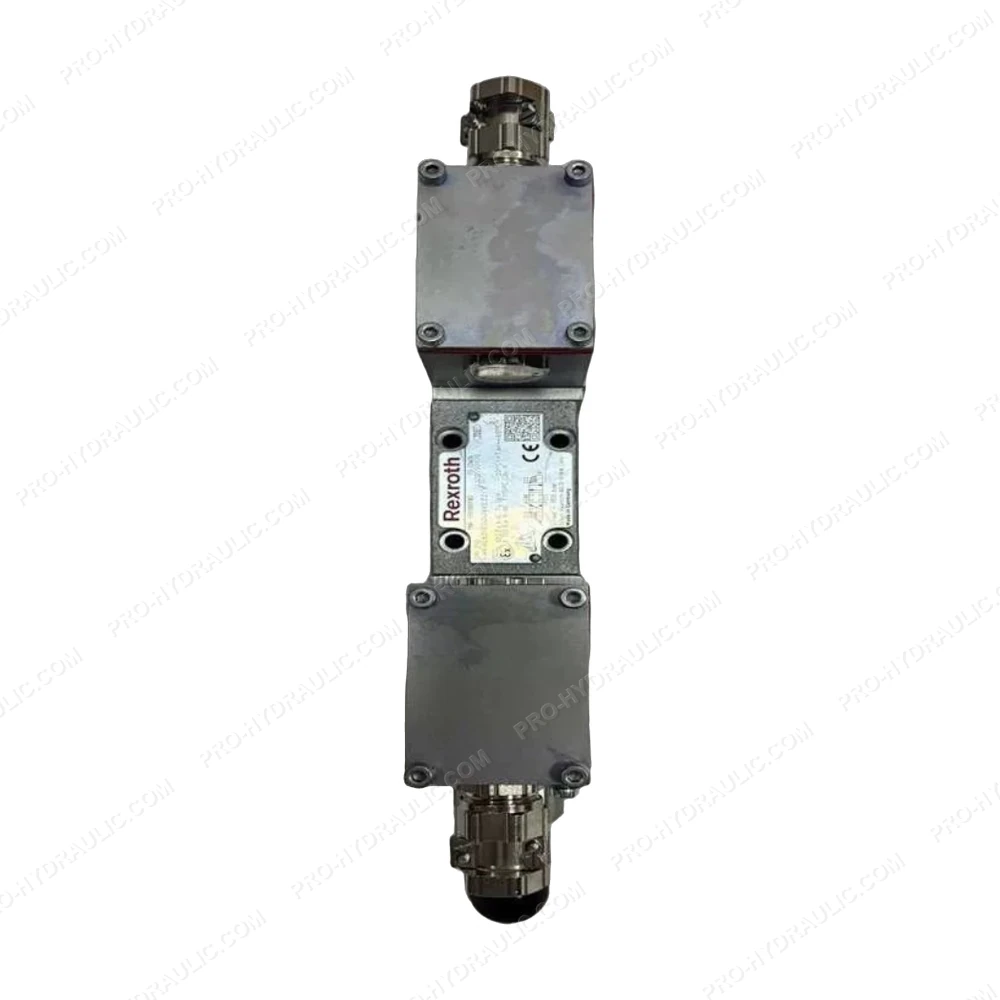

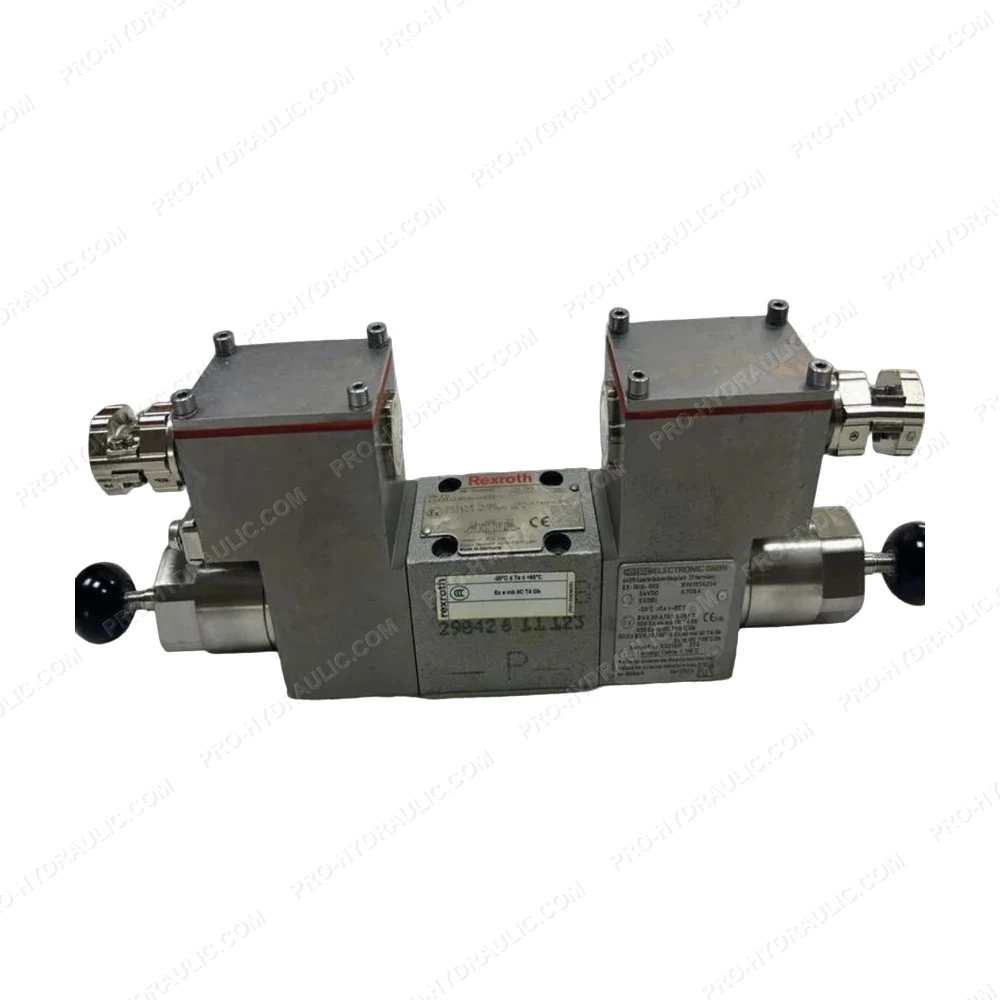

REXROTH WE6E6X/EG24NXEZ2/V / R901009182 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH WE6E6X/EG24NXEZ2/V / R901009182 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
