Product Overview
The Rexroth Z2DB 10 VD2-41/200V (Material No. R900411358) is a direct-operated sandwich plate pressure relief valve designed for integration into modular hydraulic control systems. As a pressure control valve in the Z2DB series, it functions as a pilot-operated safety and pressure-limiting element that protects downstream circuit components from excessive system pressure. The sandwich plate construction allows the valve to be mounted directly between a directional control valve and its subplate, eliminating the need for separate piping and reducing installation footprint. With a size 10 (NG10) interface and a pressure rating of 200 bar, this valve is engineered for precise pressure regulation in demanding industrial hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Sandwich Plate Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | Z2DB 10 VD2-41/200V |
| Material Number | R900411358 |
| Size / Nominal Diameter | NG10 (Size 10) |
| Operating Pressure | Up to 200 bar (pressure setting range) |
| Adjustment Type | Adjustable pressure setting (V-type adjustment) |
| Mounting & Connection | Sandwich plate mounting per ISO 4401 / DIN 24340 (NG10 interface) |
| Seal Material | NBR (standard industrial hydraulic seals) |
Engineering Features & Advantages
- Precision Pressure Limiting: Direct-operated poppet/spool design delivers accurate and repeatable pressure relief characteristics, safeguarding hydraulic circuits against pressure spikes and overloads.
- Sandwich Plate Construction: Compact modular design mounts between directional valve and subplate, minimizing piping, reducing leakage points, and simplifying system assembly and maintenance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust housing and wear-resistant internal components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification.
- Adjustable Pressure Setting: Field-adjustable pressure range up to 200 bar allows fine-tuning to match specific system requirements.
Typical Industrial Applications
This Rexroth Z2DB 10 VD2-41/200V sandwich plate pressure relief valve is widely deployed in plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial hydraulic power units where reliable pressure limiting and modular valve stack integration are required. Its NG10 interface and 200 bar rating make it suitable for medium-pressure hydraulic circuits in construction machinery, marine hydraulics, and automated production lines.
PRODUCT IMAGES

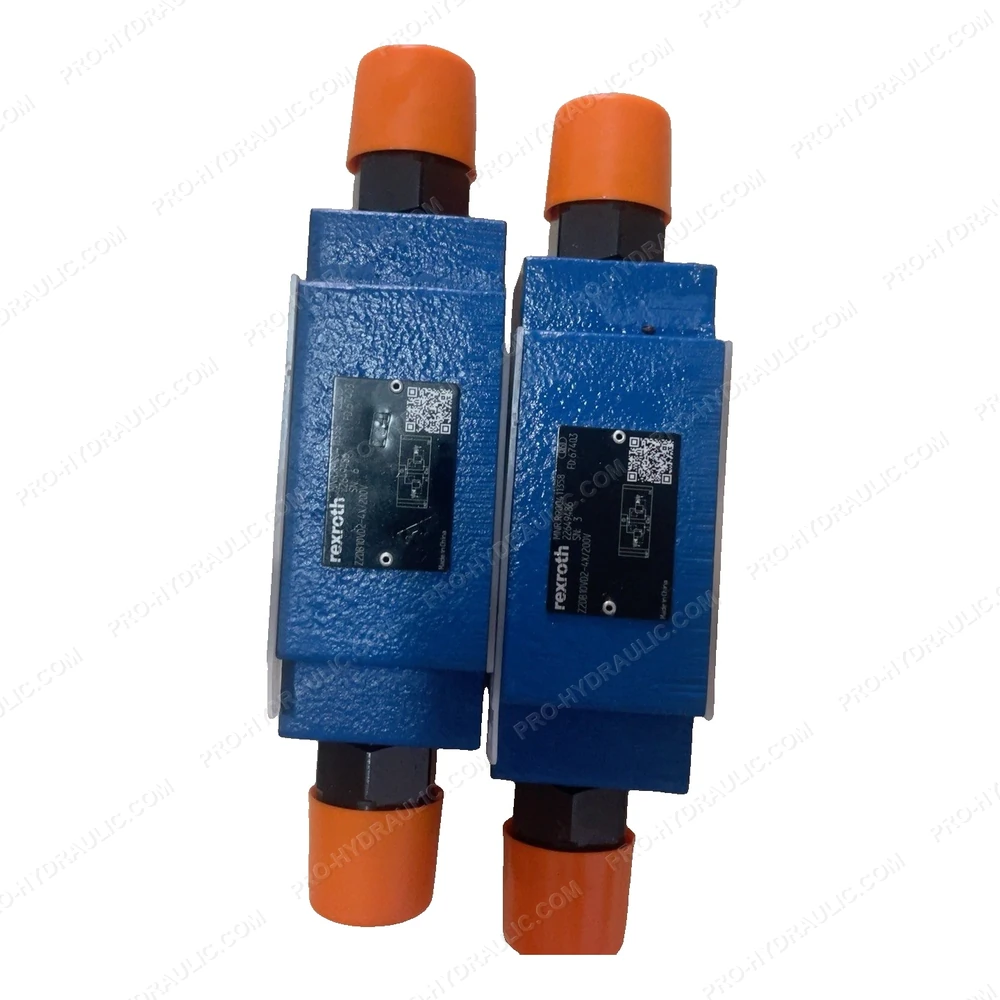

REXROTH Z2DB 10 VD2-41/200V / R900411358 Sandwich Plate Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z2DB 10 VD2-41/200V / R900411358 Pilot Operated Pressure Relief Valve. This German-made hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
