Product Overview
The Rexroth Z2S6-1-66/V/760J3 (Material No. R901429695) is a pilot operated check valve designed for leak-free load holding and controlled flow in hydraulic systems. As part of the Rexroth Z2S series, this valve is a modular sandwich plate component that blocks flow in one direction and permits free flow in the opposite direction when a pilot pressure is applied. The Z2S6-1-66/V/760J3 is engineered for reliable load holding, preventing actuator drift and uncontrolled movement in demanding industrial applications. Its modular design allows direct mounting between a directional control valve and a subplate, making it an ideal choice for compact hydraulic power units and manifold assemblies.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated Check Valve (Modular Sandwich Plate) |
| Model Designation | Z2S6-1-66/V/760J3 |
| Material Number | R901429695 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 315 bar (working pressure) |
| Cracking Pressure | Standard industrial grade (approx. 1.5 bar) |
| Pilot Ratio | Standard Rexroth pilot ratio for reliable opening |
| Mounting & Connection | Sandwich plate, ISO 4401-03-02-0-05 interface |
| Seal Material | NBR (Buna-N) standard; suitable for mineral oil based fluids |
| Fluid Temperature Range | -20°C to +80°C (standard seals) |
| Viscosity Range | 10 to 800 mm²/s (cSt) |
Engineering Features & Advantages
- Precision Performance: The pilot operated check valve provides zero-leak sealing in the blocked direction, ensuring precise load holding and preventing drift in actuator circuits. The pilot piston opens the poppet reliably even under high residual pressure.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The Z2S6-1-66/V/760J3 is engineered for reliable load holding, preventing actuator drift and uncontrolled movement in demanding industrial applications.
PRODUCT IMAGES

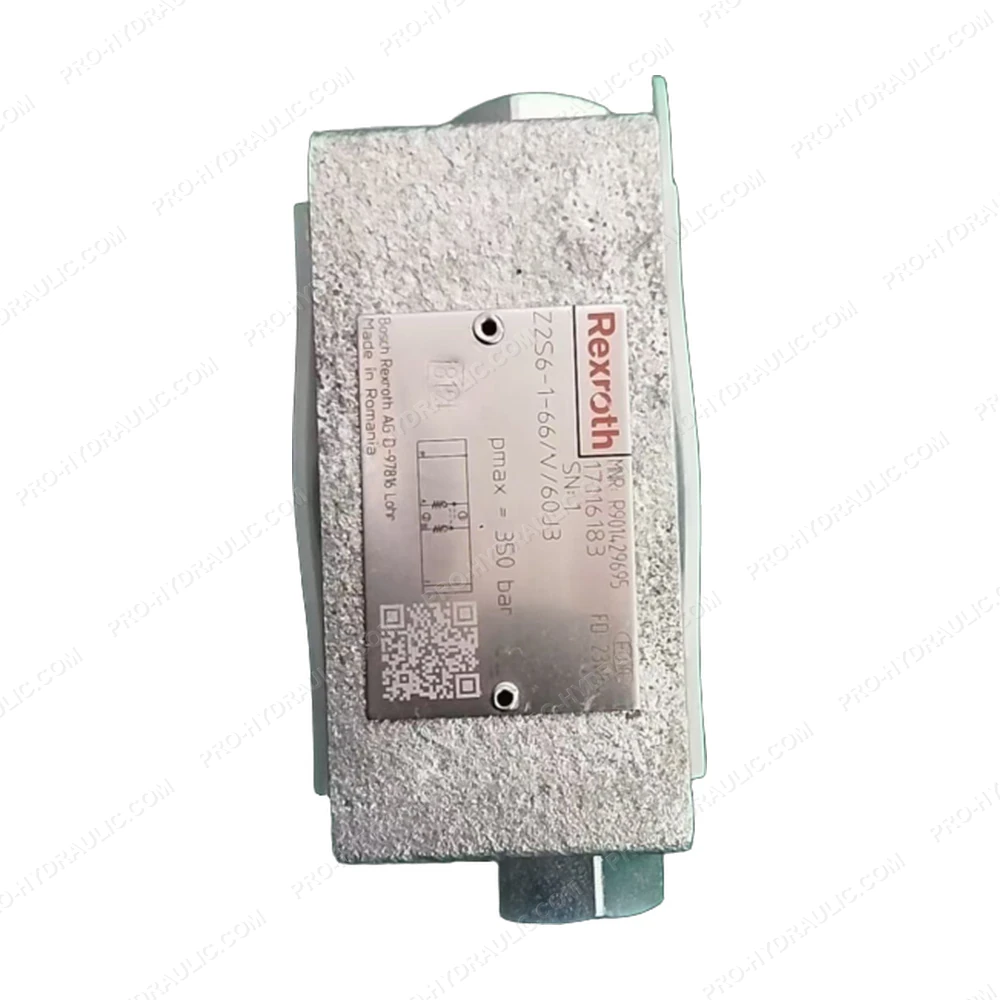

REXROTH Z2S6-1-66/V/760J3 / R901429695 Pilot Operated Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z2S6-1-66/V/760J3 / R901429695 Pilot Operated Check Valve. This Germany-made hydraulic component features a leak-free poppet design, delivering reliable fluid control for heavy-duty industrial systems.
