Product Overview
The Rexroth Z2SRK 10-1-11/V (Material No. R900564520) is a pilot operated check valve from the proven Rexroth Z2S series, supplied in a sandwich (modular) plate design for direct mounting between a directional control valve and its subplate. The valve blocks flow in one direction without leakage and permits free return flow only when a pilot pressure signal is applied to the internal control piston, which mechanically lifts the seated poppet off its seat. This leak-free load holding function makes the Z2SRK 10-1-11/V a critical safety and positioning component in hydraulic circuits where actuators must remain locked in position against gravity or external forces, and where uncontrolled load drift or dropping must be prevented during pump shutdown or directional valve neutral. The size 10 (NG10 / CETOP 5) interface, spring-loaded poppet design, and external pilot oil supply configuration allow precise integration into modular manifold stacks and standard industrial power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated Check Valve (Modular / Sandwich Plate Design) |
| Model Designation | Z2SRK 10-1-11/V |
| Material Number | R900564520 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Operating Pressure | Up to 315 bar (working pressure, standard industrial grade) |
| Pilot Pressure Ratio | Approx. 1:4.5 (pilot pressure to load pressure, dependent on spool variant) |
| Cracking / Pilot Actuation | External pilot oil supply, mechanically actuated poppet lift |
| Mounting & Connection | Sandwich plate, ISO 4401-05-05-0-05 interface, 4 x M6 mounting bolts |
| Sealing | NBR (Buna-N) standard; FKM available for elevated temperature service |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP, HLPD) per DIN 51524 |
Engineering Features & Advantages
- Leak-Free Load Holding: The seated poppet design provides zero-leakage blocking in the closed direction, ensuring actuators remain locked in position without drift even under sustained load or during pump shutdown.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The size 10 (NG10 / CETOP 5) interface, spring-loaded poppet design, and external pilot oil supply configuration allow precise integration into modular manifold stacks and standard industrial power units.
PRODUCT IMAGES

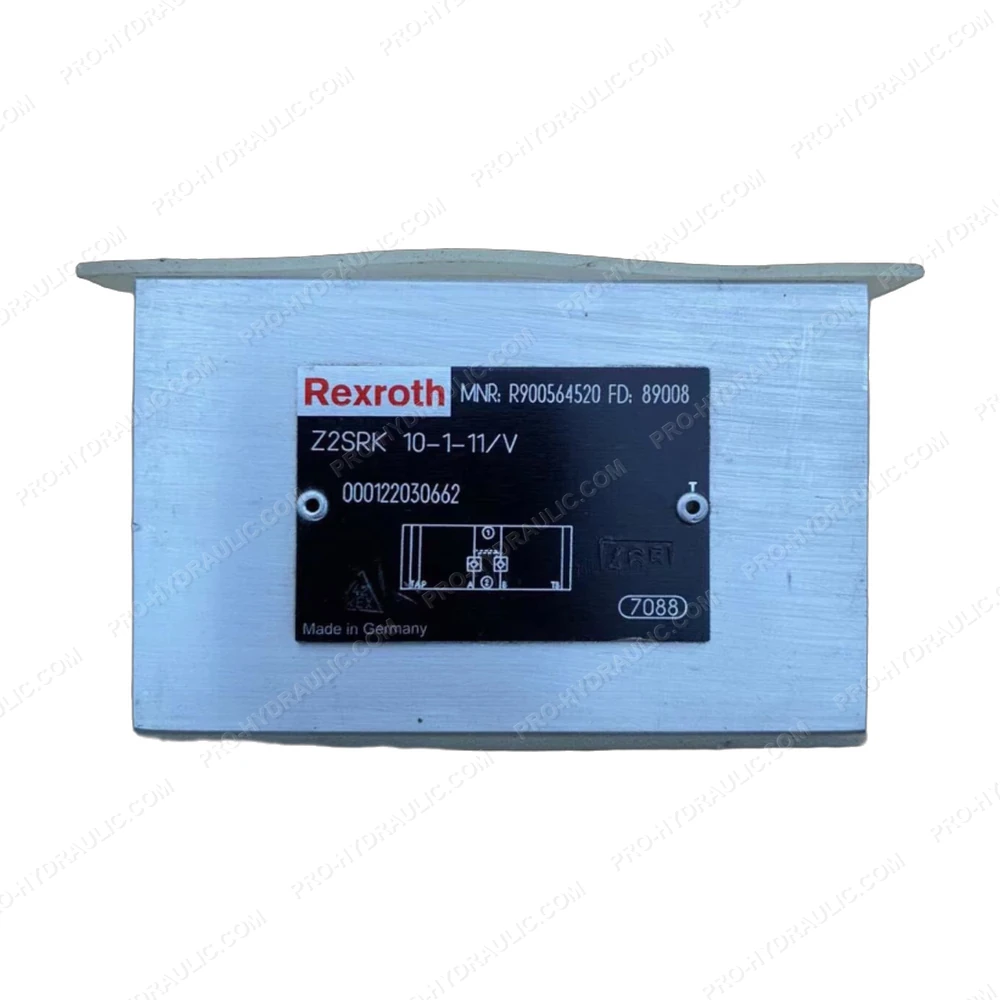

REXROTH Z2SRK 10-1-11/V / R900564520 Pilot Operated Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z2SRK 10-1-11/V / R900564520 Pilot Operated Check Valve. This Germany-made hydraulic component features a robust poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
