Product Overview
The Rexroth Z3DR 10 VP2-30/50YLG24K31/A1M (Material Number R900953085) is a high-performance, pilot-operated 3-way proportional pressure reducing valve manufactured by Bosch Rexroth. Engineered within the Z3DR series, this valve functions as a direct-operated, proportional pressure control component designed to reduce and regulate system pressure in hydraulic circuits with exceptional precision. The “3-way” spool design enables simultaneous control of both the inlet (P) and outlet (A) ports, allowing for rapid pressure relief and precise pressure modulation during dynamic load changes. The integrated proportional solenoid (designated by the “G24” code, indicating a 24 VDC supply) provides infinitely variable pressure adjustment proportional to the electrical command signal, making it ideal for applications requiring smooth, stepless pressure transitions. With a nominal size of NG10 (CETOP 5 / ISO 4401-05) and a maximum operating pressure of 315 bar, this valve is a critical control element in demanding industrial hydraulic systems where accurate pressure regulation, fast response, and high repeatability are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional 3-Way Pressure Reducing Valve |
| Model Designation | Z3DR 10 VP2-30/50YLG24K31/A1M |
| Material Number | R900953085 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Operating Pressure | Up to 315 bar (inlet P); Reduced pressure port A rated to 50 bar |
| Nominal Flow Rate | Up to 30 L/min (VP2 flow range) |
| Actuation Type | Proportional Solenoid, 24 VDC (G24) |
| Control Spool | 3-Way, pressure reducing with relief function |
| Mounting & Connection | Subplate mounting per ISO 4401-05 / CETOP 5; DIN 24 V connector |
| Seal Material | NBR (standard); FKM available on request |
| Fluid Compatibility | Mineral oil HL/HLP per DIN 51524; phosphate ester on request |
Engineering Features & Advantages
- Precision Performance: The proportional 3-way pressure reducing valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 30 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal size of NG10 (CETOP 5 / ISO 4401-05) and a maximum operating pressure of 315 bar, this valve is a critical control element in demanding industrial hydraulic systems where accurate pressure regulation, fast response, and high repeatability are essential.
PRODUCT IMAGES

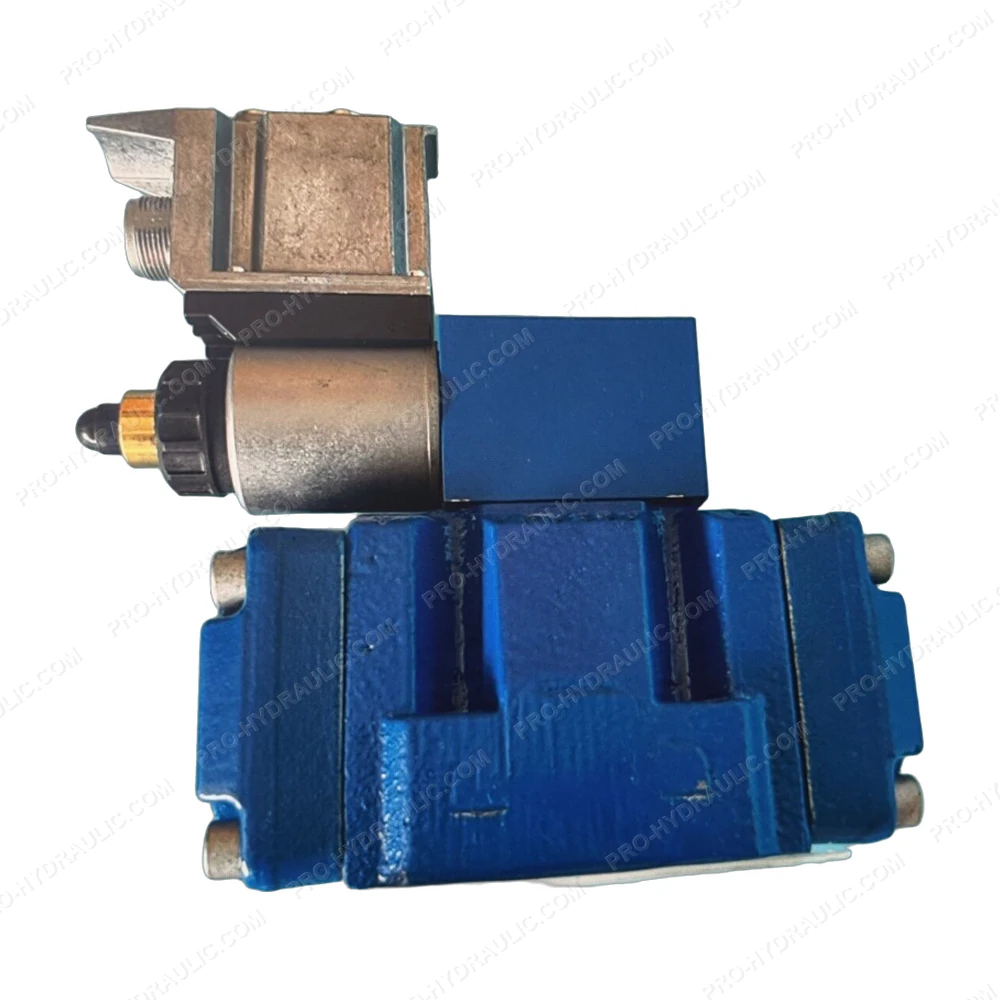

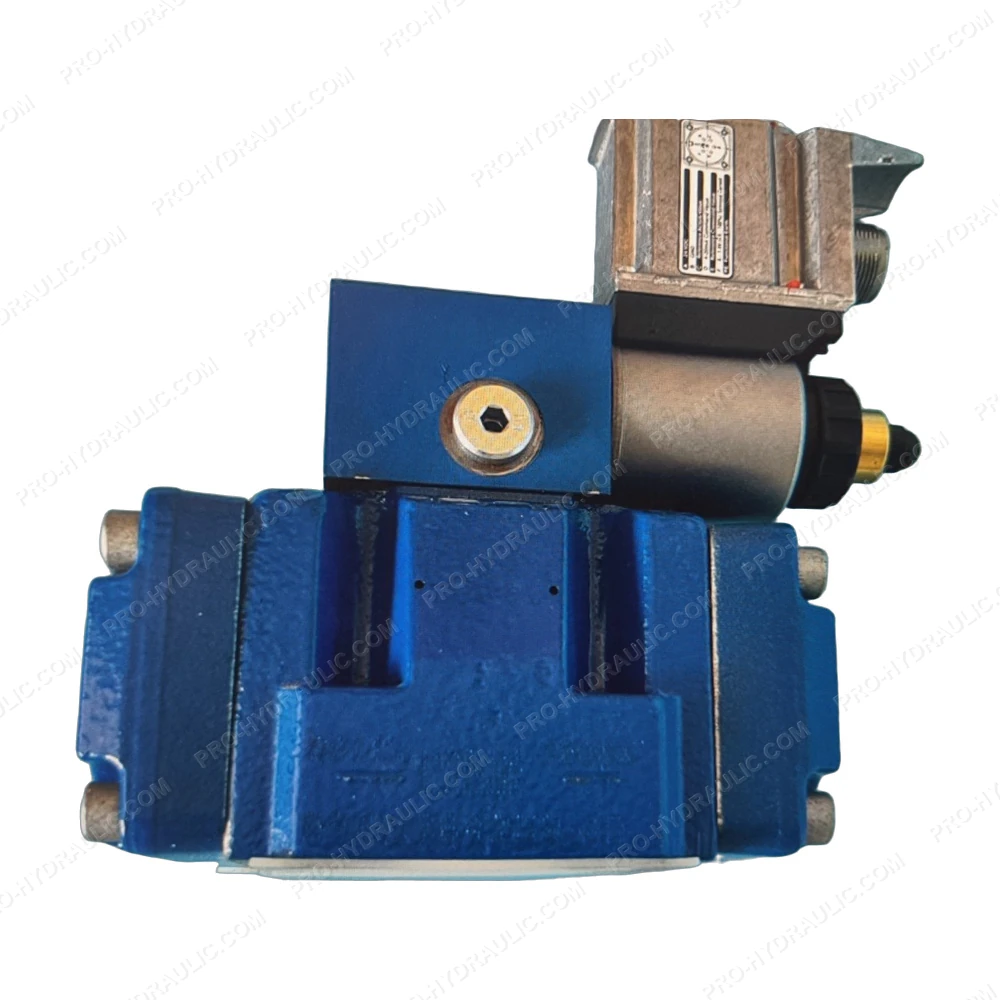

Rexroth Z3DR 10 VP2-30/50YLG24K31/A1M / R900953085 Proportional 3-Way Pressure Reducing Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z3DR 10 VP2-30/50YLG24K31/A1M / R900953085 Proportional Directional Valve. This Germany-made 24V DC hydraulic component features a direct-operated proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
