Product Overview
The Rexroth Z3DREE 10 VP2-1X/100XL024K31F1M (Material Number: R901381609) is a high-performance, direct-operated proportional pressure reducing valve designed for precise, infinitely variable pressure control in industrial hydraulic systems. Part of the renowned Rexroth Z3DREE series, this valve utilizes a proportional solenoid to modulate the pilot pressure, which in turn controls the main spool position to reduce the outlet pressure (Port A) proportionally to the electrical input signal. This 3-way pressure reducing valve is engineered for applications requiring excellent dynamic response, minimal hysteresis, and high repeatability. It serves as a critical control component in complex hydraulic circuits, ensuring stable pressure regulation even under varying flow and load conditions, thereby enhancing the efficiency and safety of automated machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Reducing Valve (3-Way) |
| Model Designation | Z3DREE 10 VP2-1X/100XL024K31F1M / R901381609 |
| Operating Pressure | Up to 315 bar (Inlet P), 100 bar (Reduced Outlet A) |
| Nominal Flow Rate | Up to 60 L/min (dependent on pressure differential) |
| Actuation Type | Proportional Solenoid with Integrated Electronics |
| Electrical Voltage | 24 V DC (Nominal) |
| Mounting & Connection | Subplate Mounting (ISO 4401-05 / CETOP 5) |
| Adjustment Range | 0 to 100 bar (Secondary Pressure) |
Engineering Features & Advantages
- Precision Performance: The valve features a high-resolution proportional solenoid and a precision-machined spool, delivering low hysteresis (< 1%) and excellent linearity for accurate pressure control in closed-loop systems.
- Integrated Electronics: Equipped with an integrated control amplifier (OBE), the valve ensures optimized signal conditioning, reducing wiring complexity and improving noise immunity in harsh industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the Z3DREE series offers robust construction with a high fatigue strength housing and wear-resistant spool and sleeve assembly.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring seamless integration into existing Rexroth hydraulic manifolds and systems.
- Fail-Safe Design: In the event of power loss, the valve automatically de-energizes, causing the outlet pressure to drop to a minimal residual level, ensuring system safety.
Typical Industrial Applications
This proportional pressure reducing valve is ideal for a wide range of heavy industrial scenarios, including plastic injection molding machines where precise clamping pressure is critical, metallurgical presses requiring accurate force control, CNC machine
PRODUCT IMAGES

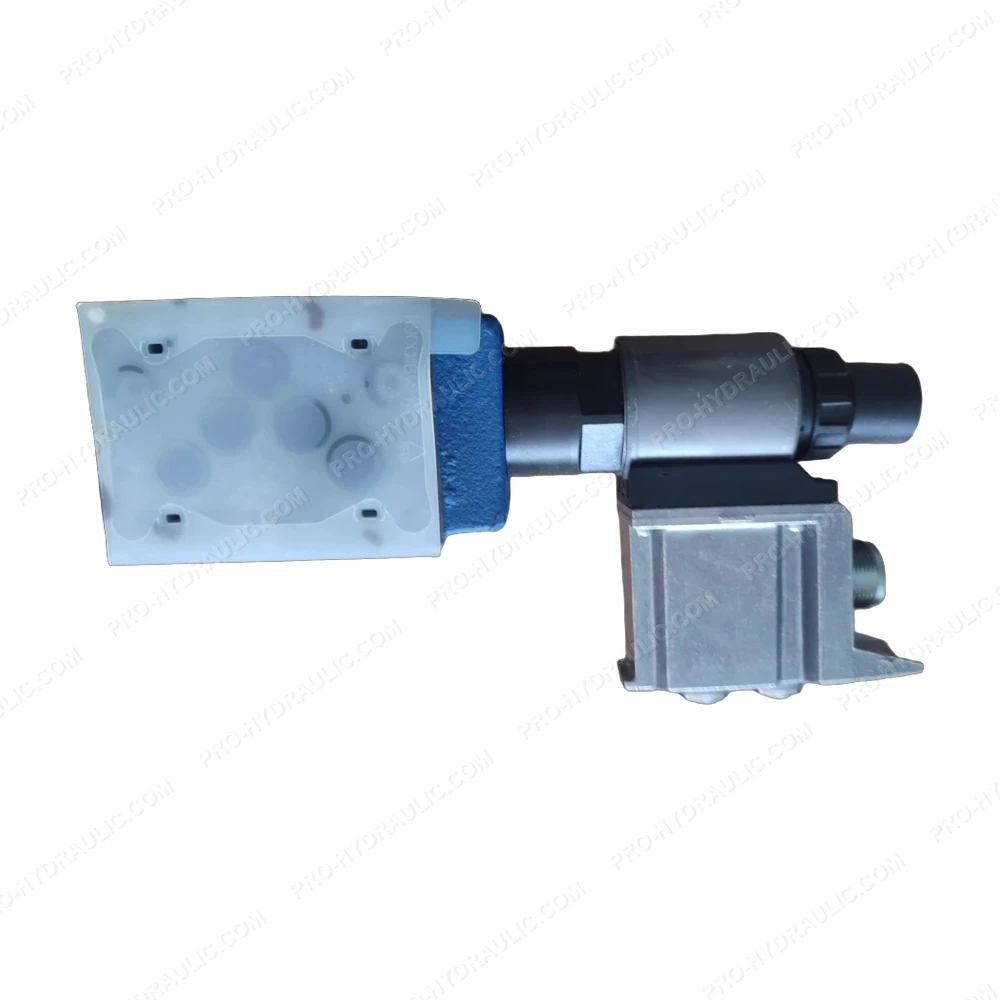

REXROTH Z3DREE 10 VP2-1X/100XL024K31F1M / R901381609 Proportional Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z3DREE 10 VP2-1X/100XL024K31F1M Solenoid Operated Directional Spool Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
