Product Overview
The Rexroth Z3DREE10VP2-10/100XLG24K31F1M (Material Number: R901483250) is a high-performance, direct-operated 3-way proportional pressure reducing valve designed for precise electro-hydraulic pressure control in demanding industrial systems. Manufactured by Bosch Rexroth, a global leader in drive and control technology, this valve operates on a proven proportional solenoid principle. It features a robust 3-way spool design that enables stepless pressure regulation and reliable pressure relief functions. The valve is engineered to convert an electrical input signal into a proportional hydraulic output pressure, ensuring exceptional dynamic response and repeatability. With a nominal size of 10 (NG10) and a maximum operating pressure of 100 bar, this component is ideal for applications requiring accurate force control, such as clamping circuits, test rigs, and injection molding machines. The integrated design allows for precise pressure reduction in one port while simultaneously relieving excess pressure to the tank, maintaining system stability and protecting downstream components from pressure spikes.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional 3-Way Pressure Reducing Valve |
| Model Designation | Z3DREE10VP2-10/100XLG24K31F1M / R901483250 |
| Nominal Size | NG10 (Size 10) |
| Operating Pressure | Up to 100 bar (Secondary Pressure Rating) |
| Actuation Type | Proportional Solenoid (24 V DC) |
| Mounting & Connection | Subplate Mounting (ISO 4401-05 / CETOP 5) |
| Electrical Connector | K31 (Component Plug, Standard Industrial) |
| Seal Material | F1 (FKM / Viton for High Temperature & Fluid Compatibility) |
Engineering Features & Advantages
- Precision Performance: The 3-way spool design provides accurate, stepless pressure reduction and simultaneous pressure relief, ensuring stable downstream pressure independent of flow fluctuations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, featuring a robust proportional solenoid and wear-resistant spool and sleeve assembly for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including the ISO 4401-05 mounting interface and K31 electrical connector, ensuring drop-in replacement without modification.
- Dynamic Response: Fast response times and high repeatability make it suitable for closed-loop control systems requiring precise force and pressure modulation.
- Fluid Compatibility: The F1 (FKM) seal kit ensures compatibility with a wide range of hydraulic fluids, including mineral oils, HFC, and HFD fluids, depending on system configuration.
Typical Industrial Applications
This proportional pressure reducing valve is widely used in heavy industrial scenarios
PRODUCT IMAGES

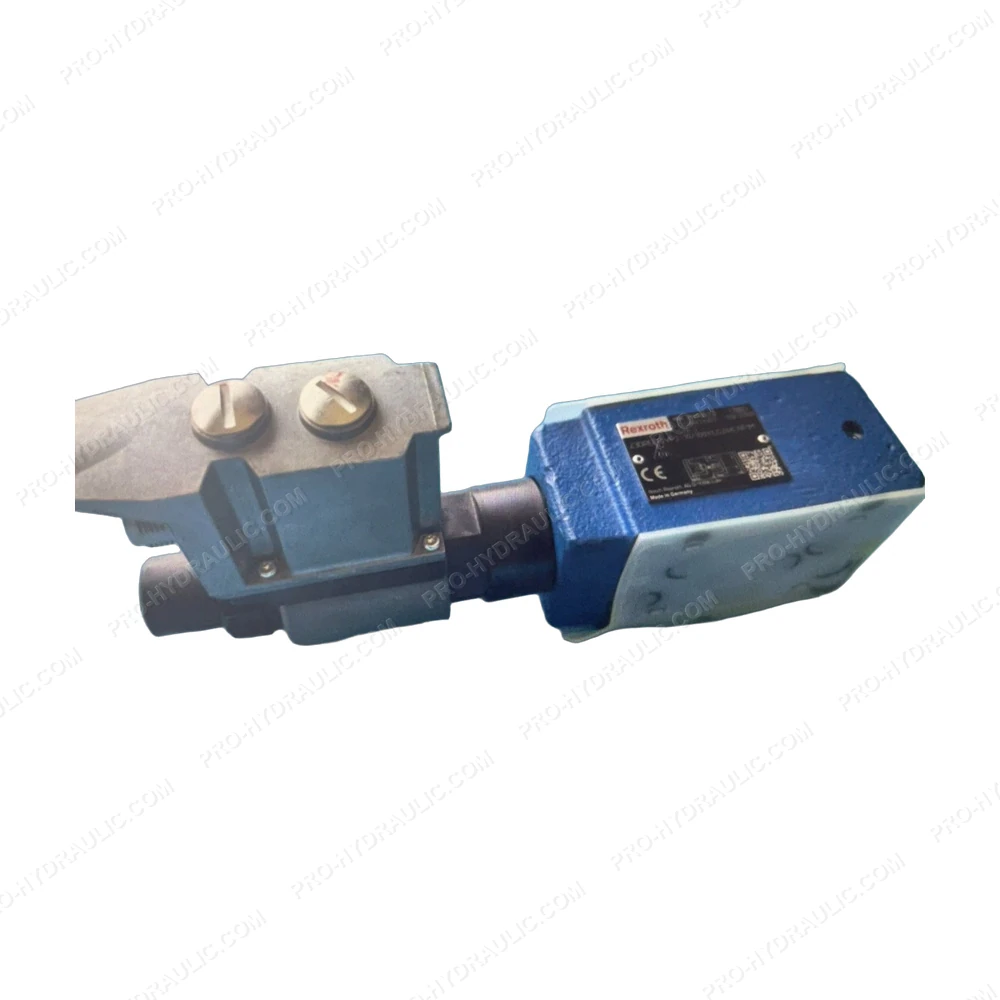

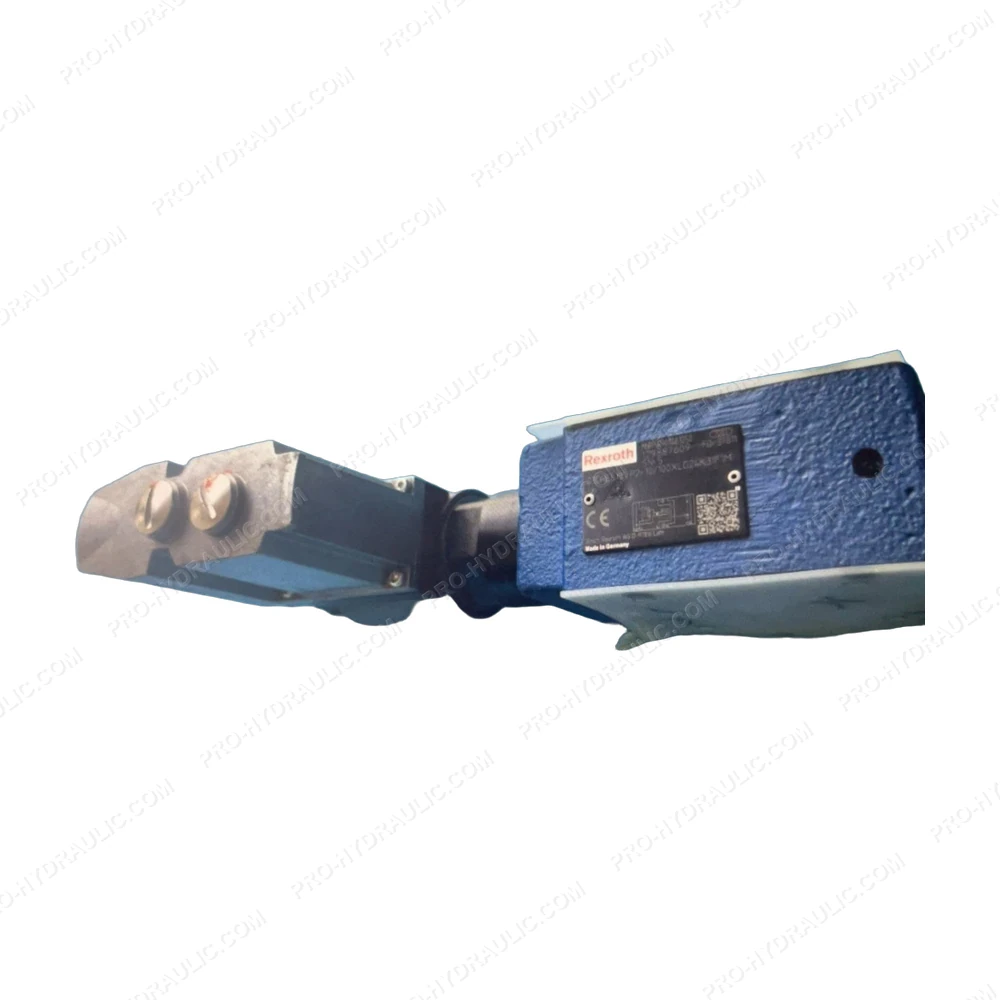

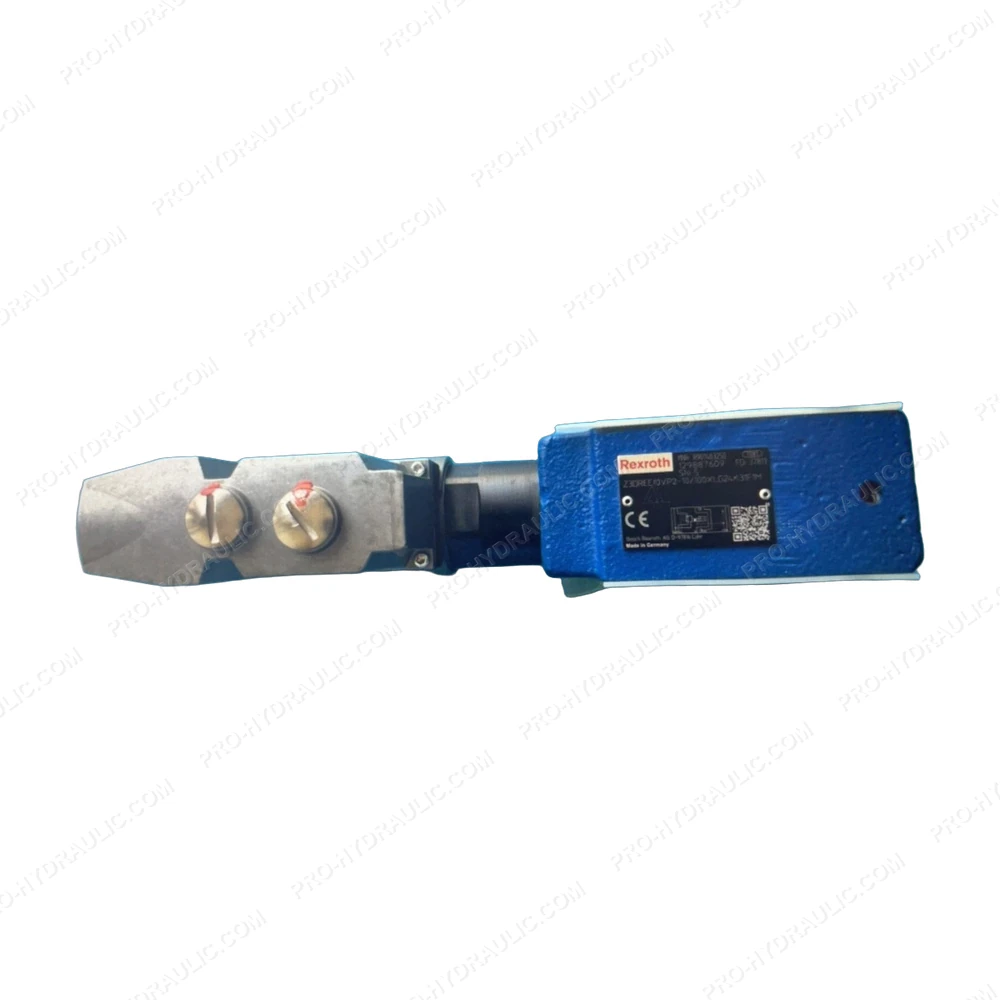

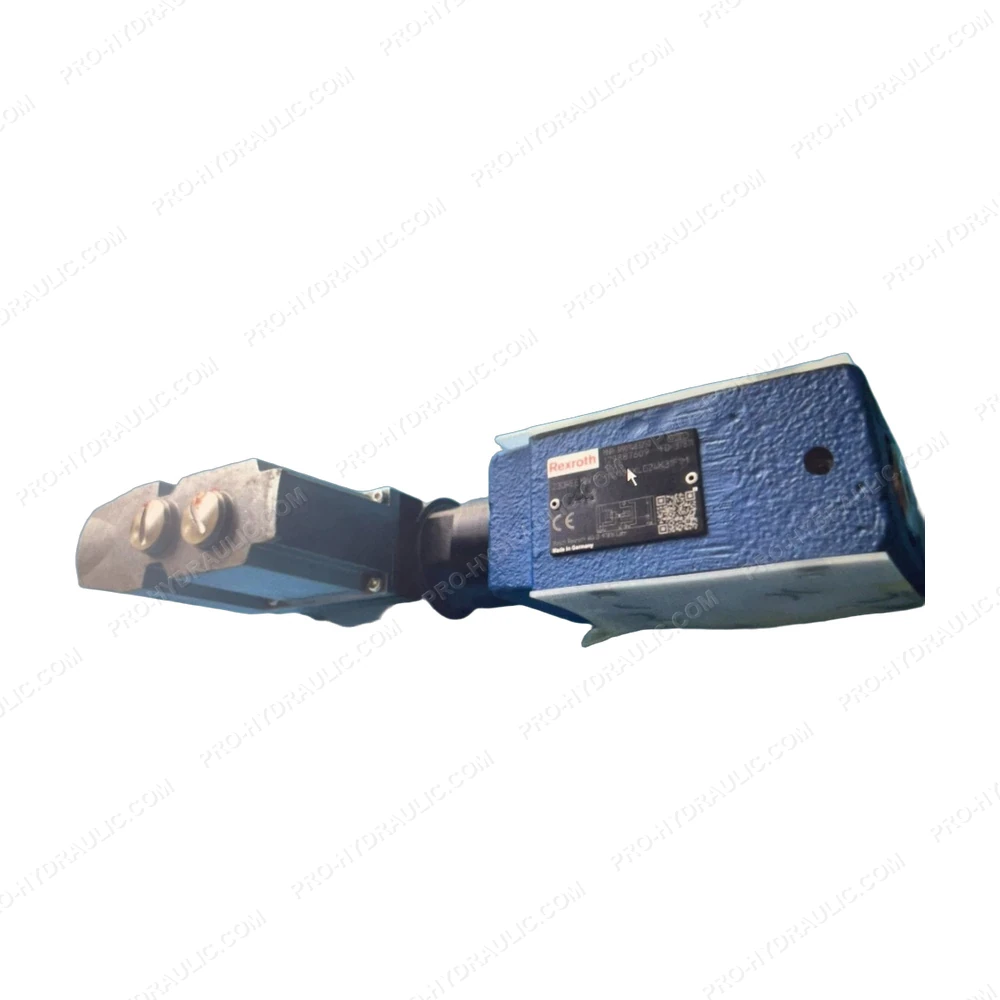

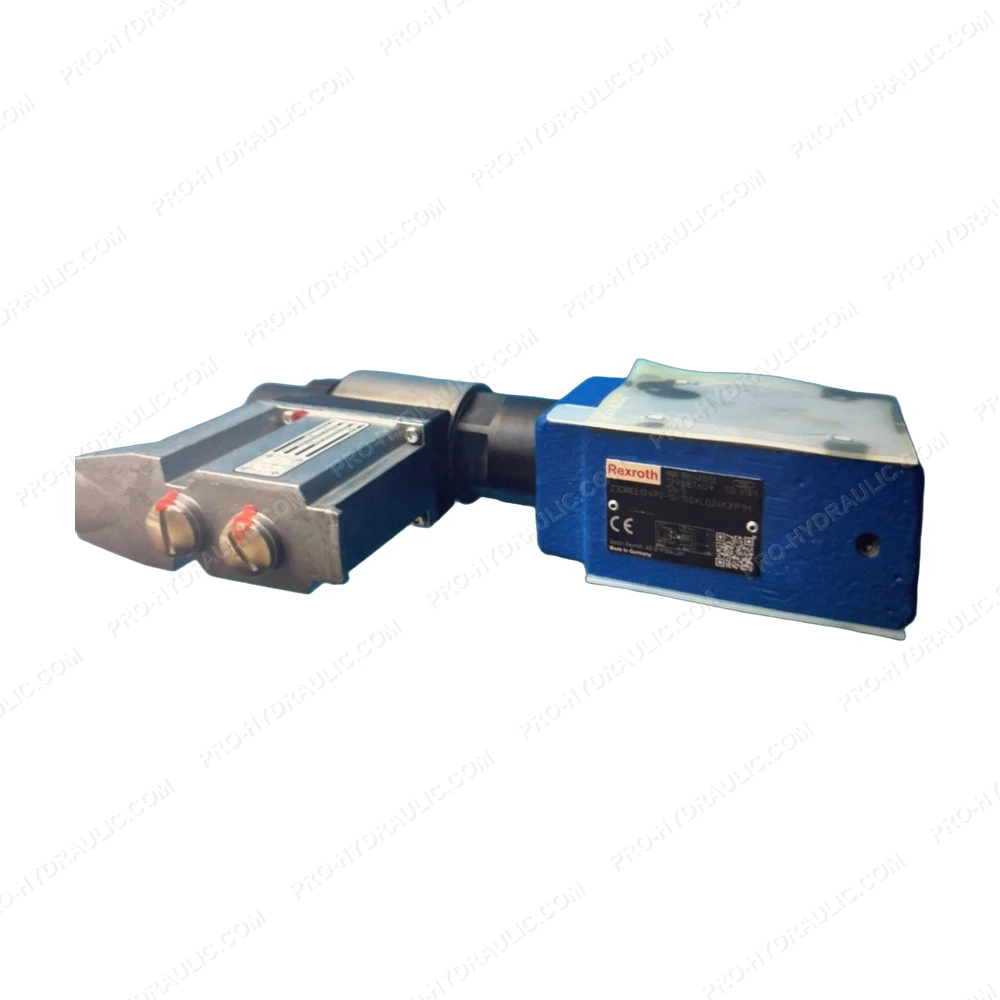

Rexroth Z3DREE10VP2-10/100XLG24K31F1M / R901483250 Proportional 3-Way Pressure Reducing Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth Z3DREE10VP2-10/100XLG24K31F1M / R901483250 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a direct-operated proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
