Product Overview
The Rexroth Z4WE 10 X250-10/CG24N9K4/304 (Material Number: R901291612) is a high-performance solenoid-actuated directional spool valve engineered for precise control of hydraulic fluid flow direction in industrial systems. As part of the proven Z4WE series, this direct-operated valve features a robust spool-in-housing design that enables reliable switching, holding, and load-holding functions within hydraulic circuits. The “X250” designation indicates a nominal flow capability of approximately 250 L/min at rated conditions, while the “CG24N9K4” configuration specifies a 24 V DC solenoid with a high-power wet-pin armature, a spring return (N9), and a standard electrical connection (K4). This valve is a direct-fit replacement for OEM Rexroth components, ensuring seamless integration into existing manifolds and control blocks without modification.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve |
| Model Designation | Z4WE 10 X250-10/CG24N9K4/304 |
| Material Number | R901291612 |
| Operating Pressure | Up to 350 bar (standard industrial grade) |
| Nominal Flow Rate | Approx. 250 L/min (X250 designation) |
| Solenoid Voltage | 24 V DC (CG24 configuration) |
| Spool Configuration | 4-way, 3-position (4WE 10 series) |
| Return Type | Spring return (N9) |
| Electrical Connection | K4 standard connector (DIN EN 175301-803) |
| Mounting & Connection | Standard ISO 4401 / CETOP 5 interface |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage and accurate flow direction control, even under high cyclic duty.
- High-Power Wet-Pin Solenoid: The CG24N9K4 solenoid delivers high switching force with low power consumption, providing fast response times and reliable actuation in demanding industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust housing and proven spring-return mechanism that ensures fail-safe return to the neutral position upon de-energization.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The Rexroth Z4WE 10 X250-10/CG24N9K4/304 (Material Number: R901291612) is a high-performance solenoid-actuated directional spool valve engineered for precise control of hydraulic fluid flow direction in industrial systems.
PRODUCT IMAGES

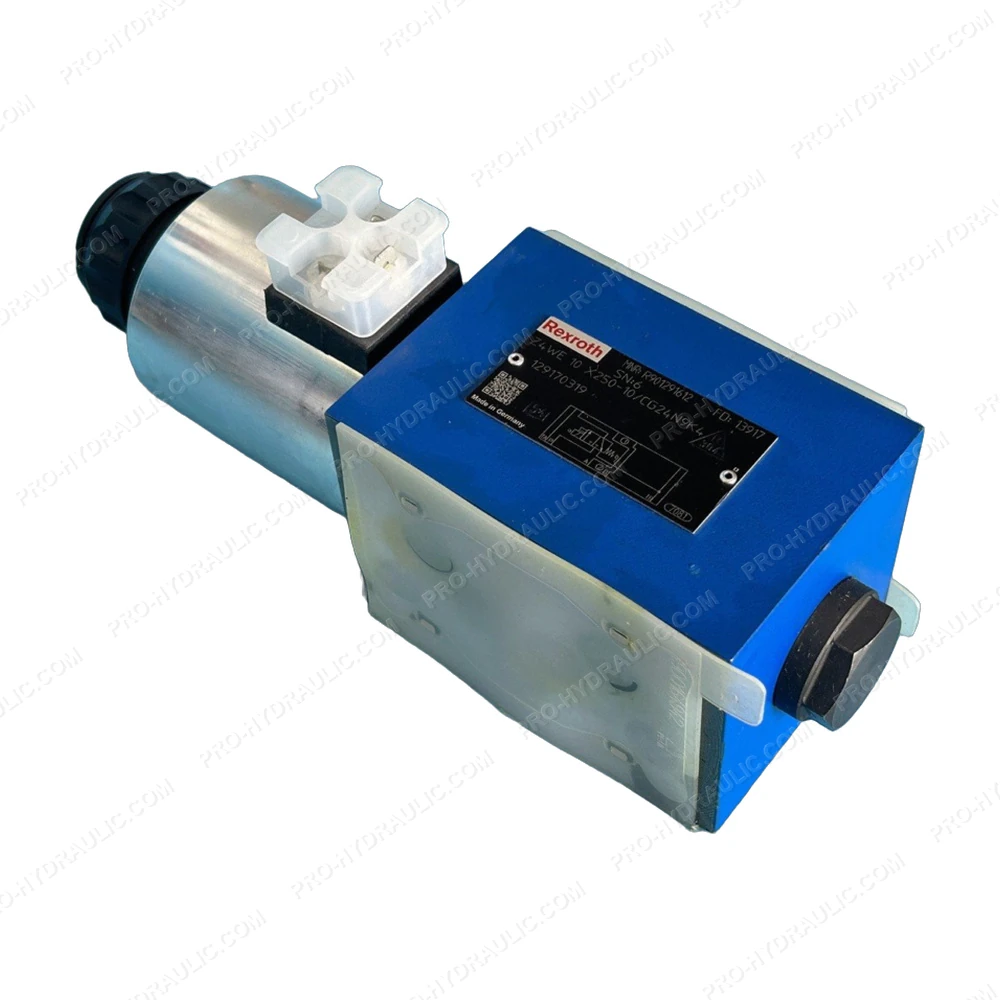

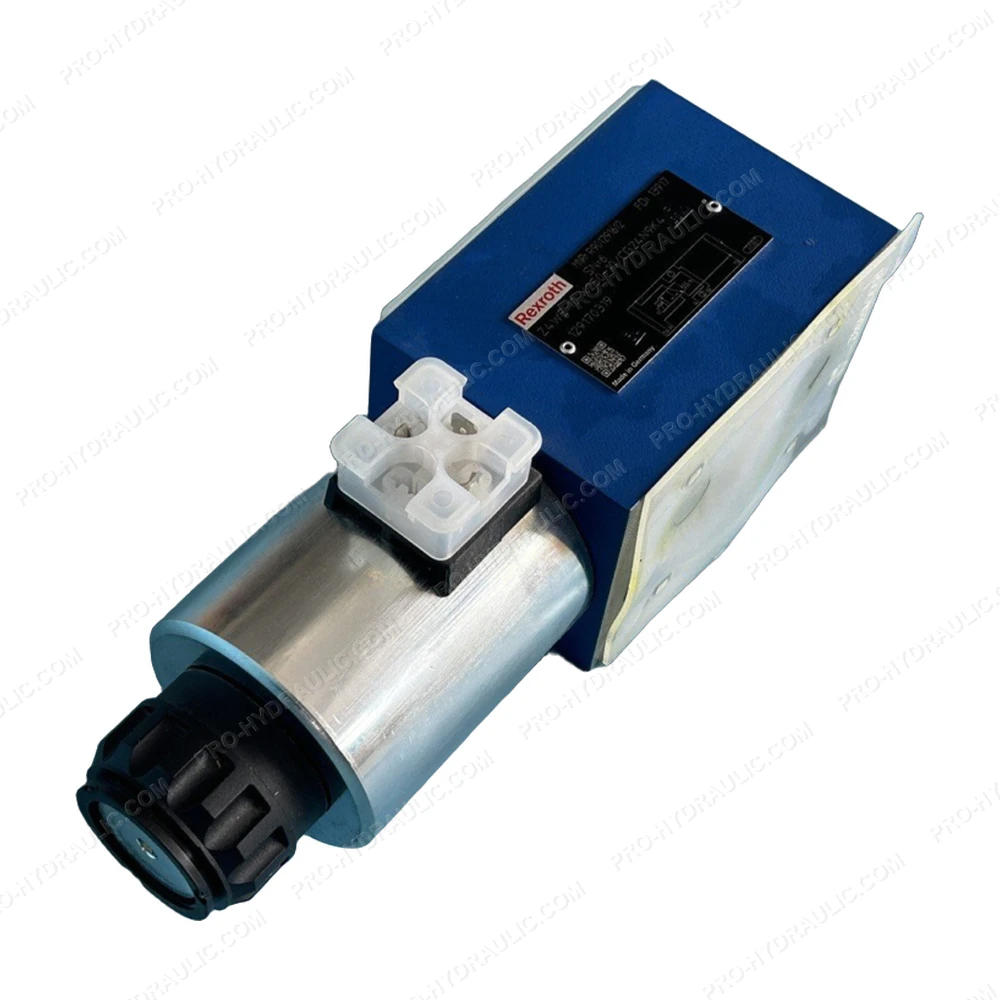

REXROTH Z4WE 10 X250-10/CG24N9K4/304 / R901291612 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z4WE 10 X250-10/CG24N9K4/304 / R901291612 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
