Product Overview
The Rexroth Z4WE 10 X250-10/CG24N9K4/V (material number R901291612) is a direct-operated, solenoid-actuated directional spool valve from the proven Rexroth WE-series platform. Designed around a robust 4-way, 3-position spool configuration (4WE designation), this valve controls the start, stop, and direction of hydraulic fluid flow in industrial power circuits. The “10” size code corresponds to NG10 (nominal size 10) with a CETOP 5 / ISO 4401-05 mounting pattern, making it a direct drop-in component for standard manifold and subplate installations. The “X250” pressure rating indicates a maximum working pressure of 250 bar at ports P, A, and B, while the “CG24N9K4” solenoid designation specifies a 24 V DC high-performance wet-pin solenoid with N9 (EN 175301-803, form A) electrical connection and K4 (manual override) feature. The “/V” suffix denotes FKM (Viton) seal material for compatibility with phosphate ester and high-temperature hydraulic fluids. This valve is engineered for precise directional control in demanding industrial hydraulic systems where reliability, fast response, and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (4-way, 3-position) |
| Model Designation | Z4WE 10 X250-10/CG24N9K4/V / R901291612 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Operating Pressure | Up to 250 bar (ports P, A, B); 160 bar max at port T |
| Nominal Flow Rate | Up to 80 L/min (dependent on spool type and pressure drop) |
| Solenoid Voltage | 24 V DC (high-performance wet-pin solenoid) |
| Electrical Connection | N9 — EN 175301-803, form A (DIN 43650) |
| Manual Override | K4 — concealed manual override (push-pin type) |
| Seal Material | FKM (Viton) — /V suffix |
| Mounting & Connection | Subplate mounting per ISO 4401-05 / CETOP 5 / NFPA T3.5.1 |
Engineering Features & Advantages
- Precision Performance: The solenoid directional spool valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 250 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is engineered for precise directional control in demanding industrial hydraulic systems where reliability, fast response, and long service life are critical.
PRODUCT IMAGES

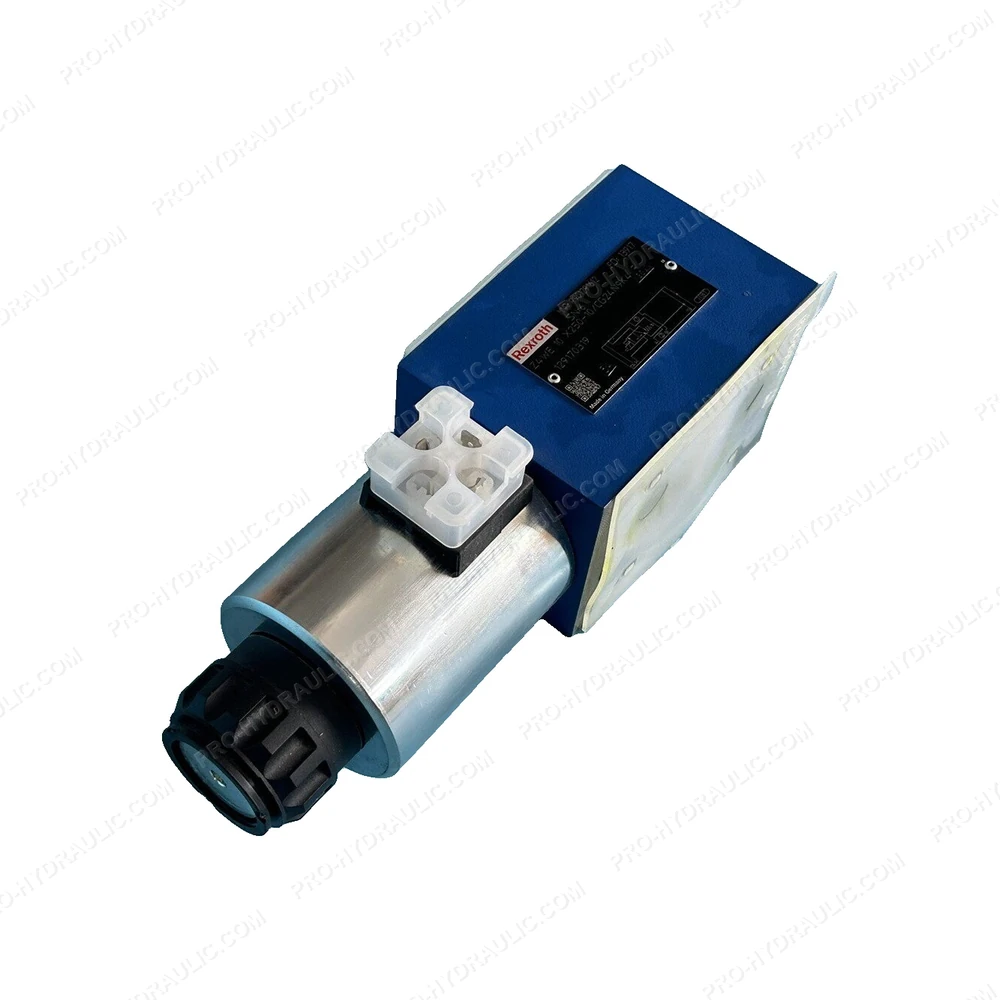

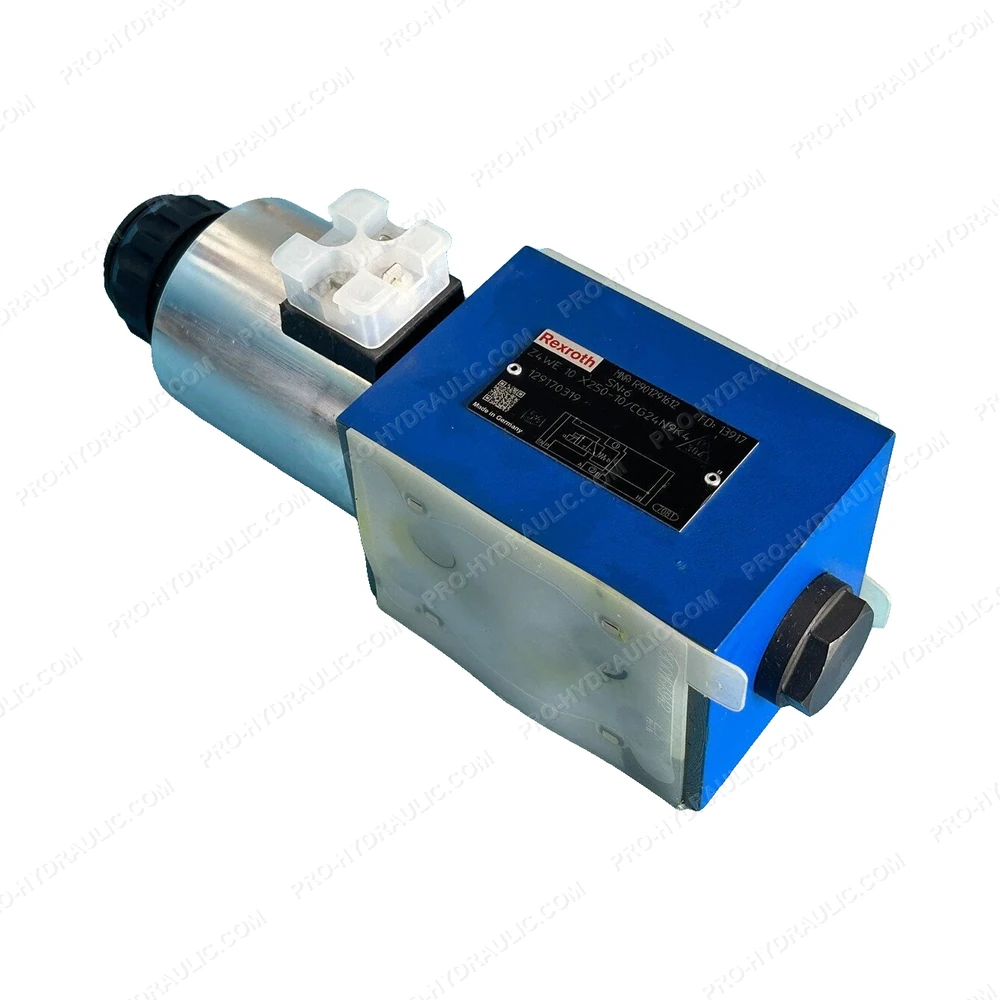

REXROTH Z4WE 10 X250-10/CG24N9K4/V / R901291612 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z4WE 10 X250-10/CG24N9K4/V / R901291612 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a 4-way, spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
