Product Overview
The Rexroth Z4WEH10X183-50/4KEG24ETK4 (Material Number: R900763298) is a high-performance electro-hydraulic directional spool valve from the renowned Rexroth WEH series. This valve is designed for controlling the start, stop, and direction of fluid flow in hydraulic systems, utilizing a pilot-operated solenoid actuation mechanism. It features a size 10 (NG10) interface and a 4-way, 3-position spool configuration with a “K” type spool (open center in neutral). The integrated electro-hydraulic piloting allows for high flow rates with minimal solenoid power, making it ideal for demanding industrial applications requiring precise directional control and reliable switching under high pressure.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Hydraulic Directional Spool Valve |
| Model Designation | Z4WEH10X183-50/4KEG24ETK4 / R900763298 |
| Size / Nominal Diameter | NG10 (Size 10) |
| Spool Type | 4-way, 3-position, “K” spool (open center) |
| Actuation | Electro-hydraulic pilot operated, solenoid controlled |
| Operating Pressure | Up to 350 bar (main valve); pilot pressure up to 315 bar |
| Nominal Flow Rate | Up to 120 L/min (dependent on pilot pressure and spool position) |
| Voltage / Solenoid | 24 V DC (EG24), with integrated rectifier and manual override |
| Mounting & Connection | Subplate mounting, ISO 4401-05 / CETOP 5 / NFPA D05 interface |
| Seal Material | NBR (Buna-N) standard; FKM available on request |
Engineering Features & Advantages
- Precision Performance: The pilot-operated design ensures fast, precise spool positioning with minimal pressure drop, enabling accurate control of high flows in complex hydraulic circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid construction and hardened spool and sleeve for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modifications to manifolds or piping.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The integrated electro-hydraulic piloting allows for high flow rates with minimal solenoid power, making it ideal for demanding industrial applications requiring precise directional control and reliable switching under high pressure.
PRODUCT IMAGES

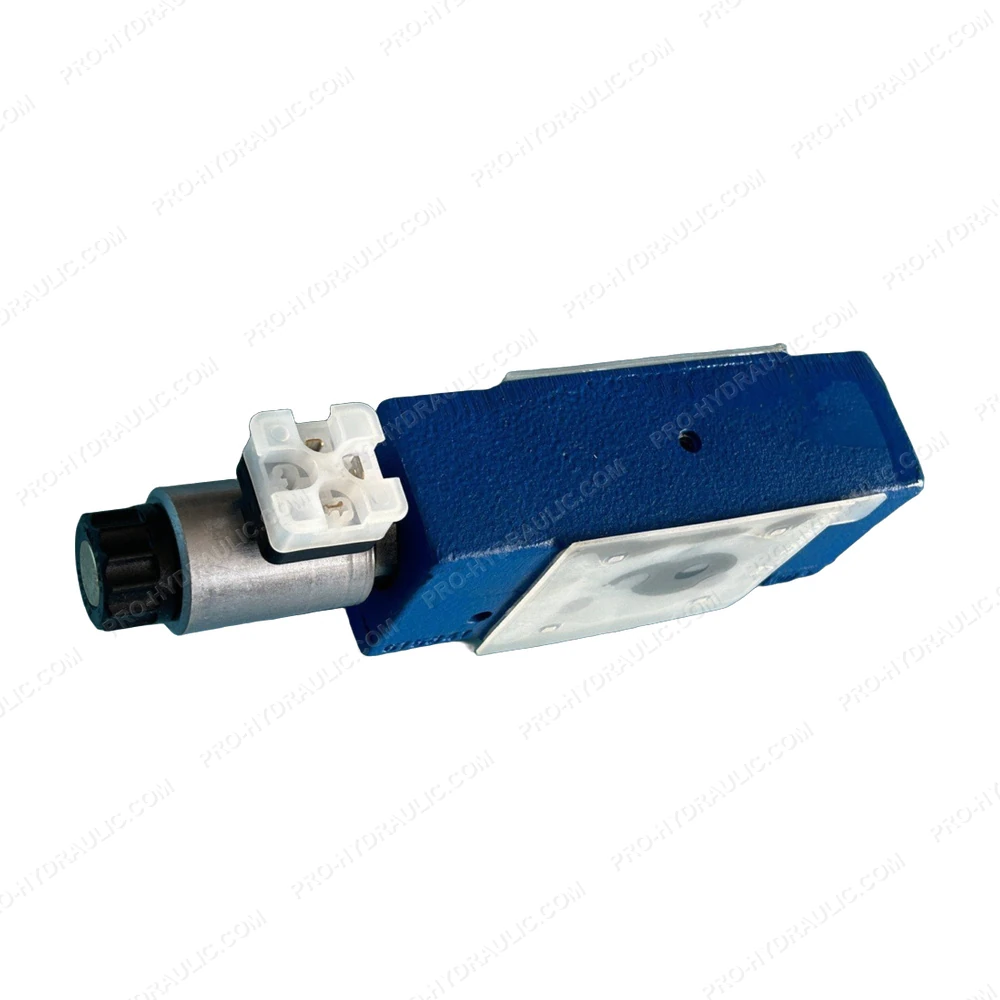

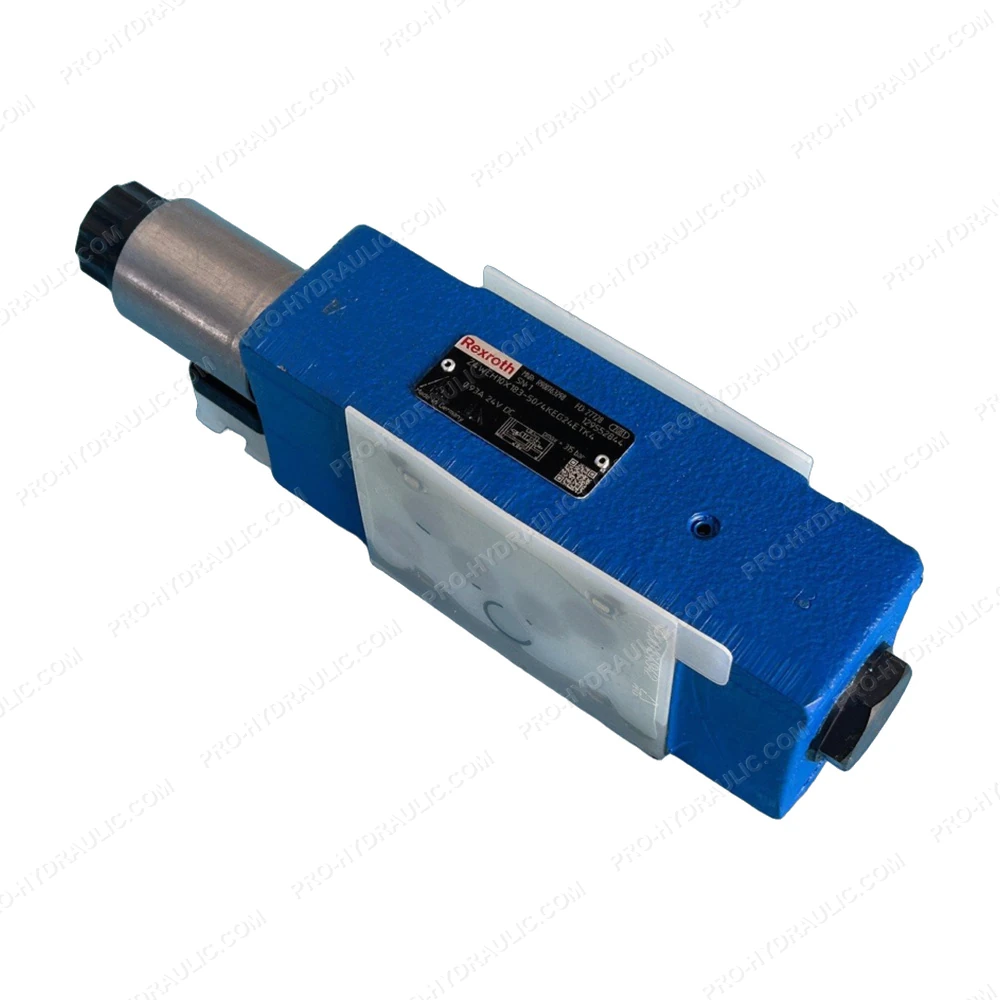

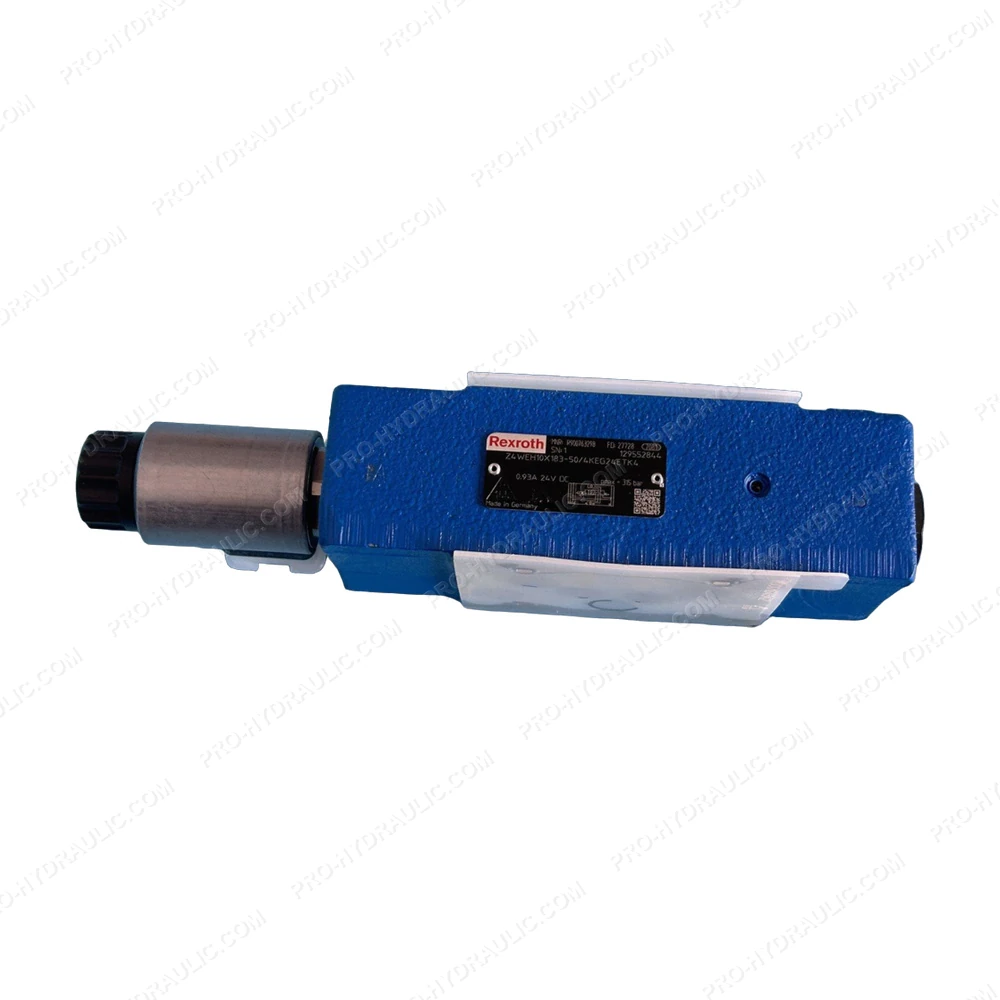

REXROTH Z4WEH10X183-50/4KEG24ETK4 / R900763298 Electro-Hydraulic Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH Z4WEH10X183-50/4KEG24ETK4 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a 4-way, pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
