Product Overview
The Rexroth ZDB 10 VP2-41/200V is a direct-operated pressure relief valve from the proven ZDB series, engineered by Bosch Rexroth for precise pressure limitation and system protection in industrial hydraulic circuits. As a pressure control valve, it functions by diverting excess hydraulic fluid back to tank once the preset cracking pressure is reached, thereby safeguarding downstream components against overpressure. The “VP2” designation indicates a screw-in cartridge style with a specific adjustment and porting configuration, while the “200V” suffix denotes a nominal pressure setting of 200 bar. This valve is widely deployed as a reliable, fast-responding safety and pressure-limiting element in manifold blocks and compact hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Control Valve (Pressure Relief Valve) |
| Model Designation | ZDB 10 VP2-41/200V |
| Manufacturer | Bosch Rexroth |
| Nominal Size | NG10 (Size 10) |
| Pressure Setting | 200 bar (nominal, adjustable) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Actuation Type | Direct-operated, spring-loaded poppet/spool |
| Mounting & Connection | Standard ISO / Manufacturer Interface (cartridge / subplate mounting) |
Engineering Features & Advantages
- Precision Performance: Direct-operated poppet design delivers fast response and accurate pressure limitation with minimal hysteresis, ensuring stable system pressure control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and robust spring assembly for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
- Compact Cartridge Design: The VP2 screw-in cartridge format enables space-saving integration into custom manifold blocks and compact hydraulic power units.
- Adjustable Pressure Setting: Field-adjustable spring preload allows fine-tuning of the cracking pressure to match specific circuit requirements.
Typical Industrial Applications
This pressure relief valve is commonly specified in plastic injection molding machines, metallurgical presses, CNC machine tools, and construction & marine hydraulic systems. It serves as a critical overpressure protection and pressure-limiting element in manifold blocks, hydraulic power units, and compact drive circuits where reliable, repeatable pressure control is essential.
PRODUCT IMAGES

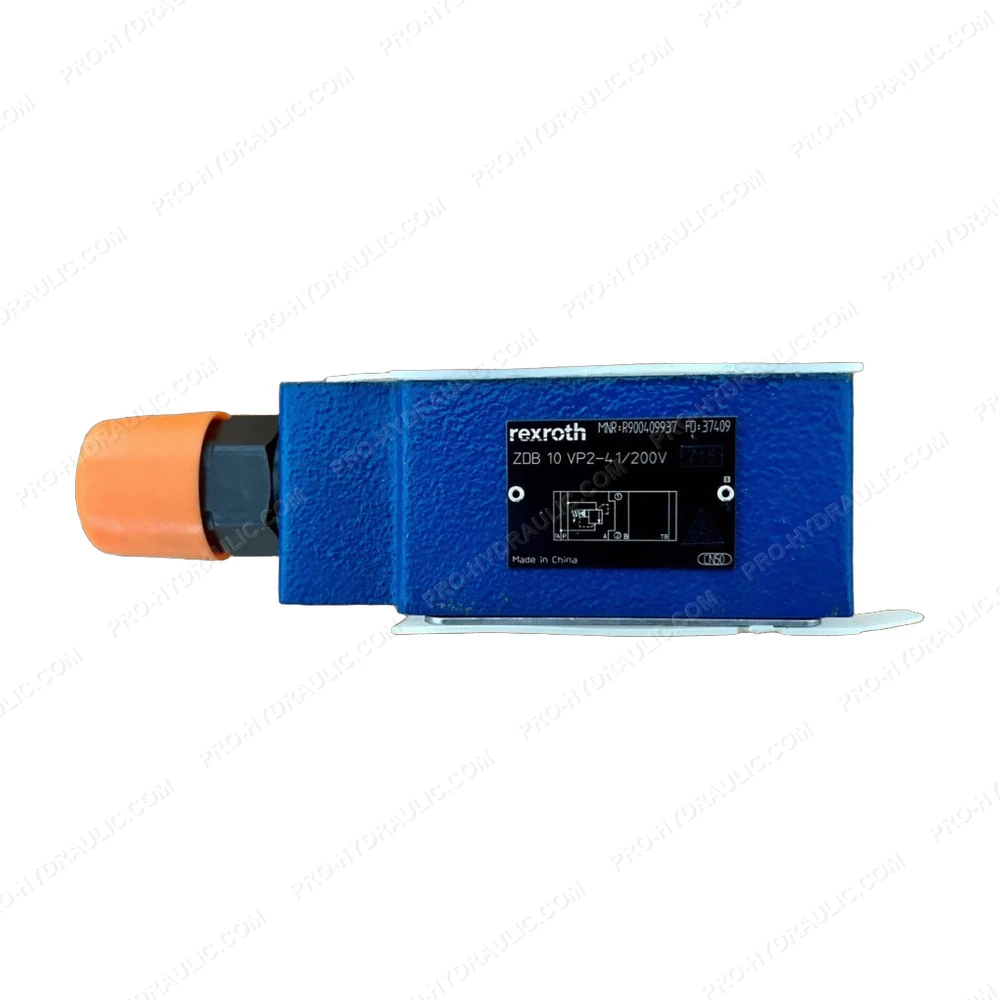

REXROTH ZDB 10 VP2-41/200V Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH ZDB 10 VP2-41/200V Pilot Operated Pressure Relief Valve. This German-made hydraulic component features a pilot-operated design, delivering precise pressure control and reliable system protection for heavy-duty industrial applications.
