Product Overview
The Rexroth ZDBK 6 VB2-11=210V (Material Number: R900702156) is a direct-operated sandwich plate pressure relief valve engineered for precise system pressure limitation and protection within industrial hydraulic circuits. As part of the Rexroth ZDBK series, this valve is designed for sandwich plate mounting (module connection) in accordance with ISO 4401 / DIN 24340 size 6 (NG6 / CETOP 3) interface standards. The valve operates on a spring-loaded poppet or ball seat principle, opening proportionally when inlet pressure exceeds the adjustable set value, thereby diverting excess flow to the tank port and safeguarding downstream components from overpressure. The “VB2” designation indicates the pressure adjustment range and adjustment type, while the “210V” suffix denotes a maximum pressure setting of 210 bar. This valve is a critical safety and control element in manifold-based hydraulic power units, machine tools, and industrial press systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Sandwich Plate Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | ZDBK 6 VB2-11=210V / R900702156 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 210 bar (maximum set pressure) |
| Pressure Adjustment Range | VB2 range (typically 25–210 bar, adjustable via set screw) |
| Mounting & Connection | Sandwich plate (module) mounting per ISO 4401 / DIN 24340, NG6 interface |
| Actuation Type | Direct-operated, spring-loaded poppet/ball seat |
| Adjustment Mechanism | Set screw with lock nut (manual adjustment) |
| Seal Material | NBR (standard industrial hydraulic fluid compatibility) |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP) per DIN 51524 |
Engineering Features & Advantages
- Precision Pressure Limiting: Direct-operated poppet design ensures fast response and accurate pressure control, protecting hydraulic components from damaging overpressure conditions.
- Sandwich Plate Modularity: The NG6 sandwich plate configuration enables space-saving integration into existing manifold stacks without additional piping, simplifying system design and maintenance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
This valve is a critical safety and control element in manifold-based hydraulic power units, machine tools, and industrial press systems.
PRODUCT IMAGES

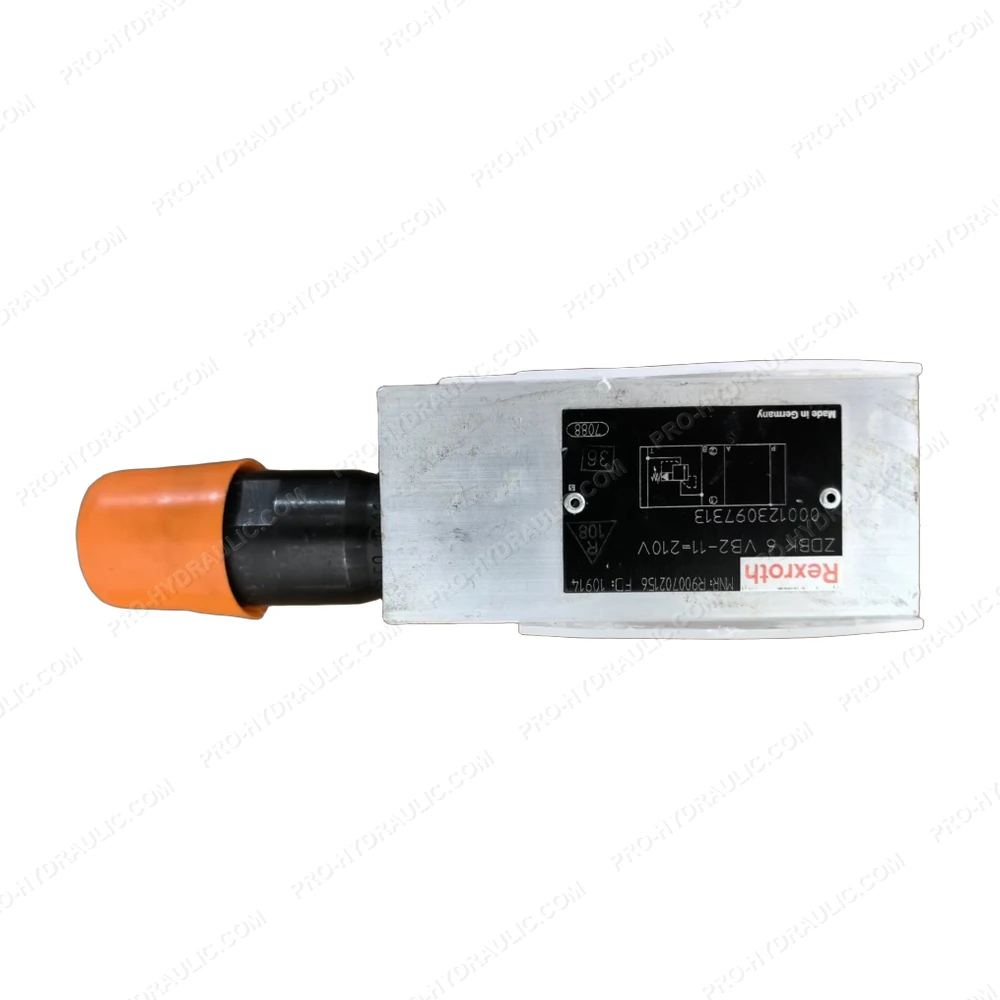

Rexroth ZDBK 6 VB2-11=210V / R900702156 Sandwich Plate Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH ZDBK 6 VB2-11=210V / R900702156 Pressure Reducing Valve. This Germany-made 210V hydraulic component features a direct-operated, spring-loaded design, delivering leak-free, reliable pressure control for heavy-duty industrial systems.
