Product Overview
The Rexroth ZDR10DA2-5X/150Y (Material No. R900410884) is a direct-operated, pilot-assisted pressure reducing valve from the proven ZDR10 series, engineered for precise secondary circuit pressure regulation in industrial hydraulic systems. Manufactured by Bosch Rexroth, this valve maintains a constant reduced outlet pressure regardless of fluctuations in the primary (inlet) pressure or changes in flow demand. The “DA” designation indicates a direct-operated pressure reducing function with a pressure relief capability on the secondary side, while the “150Y” specification denotes a 150 bar pressure rating with a specific adjustment and spring configuration. The valve is part of the 5X series (component series 50), ensuring long-term availability and compatibility with the global Rexroth modular valve platform. It is designed for subplate mounting in accordance with ISO 4401 and CETOP standards, making it a direct drop-in replacement for OEM installations in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Control Valve (Pressure Reducing Valve) |
| Model Designation | ZDR10DA2-5X/150Y |
| Material Number | R900410884 |
| Operating Pressure | Up to 150 bar (secondary pressure setting range) |
| Mounting & Connection | Subplate mounting per ISO 4401 / CETOP / DIN 24340 (NG10 / Size 10) |
| Actuation Type | Direct-operated, mechanically adjustable (spindle with hexagon and lock nut) |
| Adjustment Range | 150 bar maximum (Y spring variant) |
| Nominal Flow Rate | Up to 80 L/min (NG10 standard) |
| Hydraulic Fluid | Mineral oil based hydraulic fluids (HL, HLP) per DIN 51524 |
| Fluid Temperature Range | -20 °C to +80 °C (standard NBR seals) |
| Viscosity Range | 10 to 500 mm²/s (cSt) recommended |
| Component Series | 5X |
Engineering Features & Advantages
- Precision Performance: The pressure control valve (pressure reducing valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 150 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
It is designed for subplate mounting in accordance with ISO 4401 and CETOP standards, making it a direct drop-in replacement for OEM installations in demanding industrial environments.
PRODUCT IMAGES

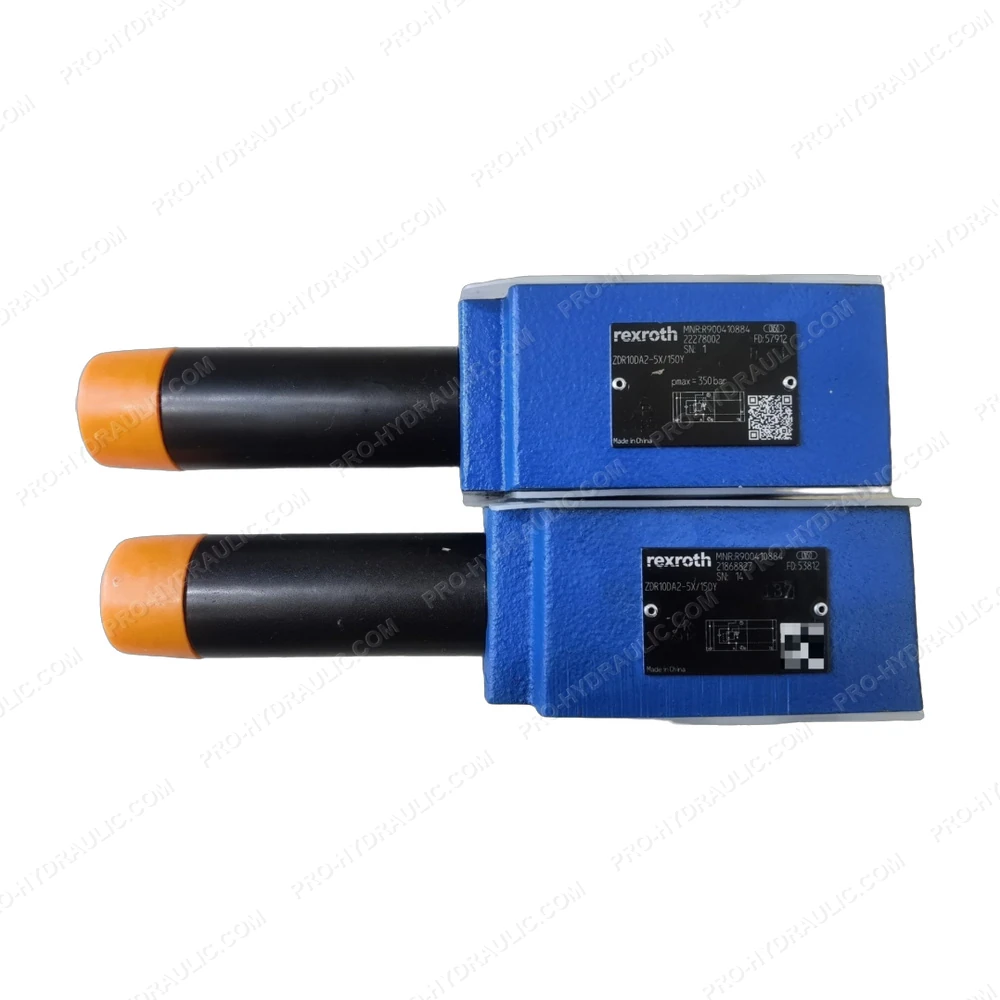

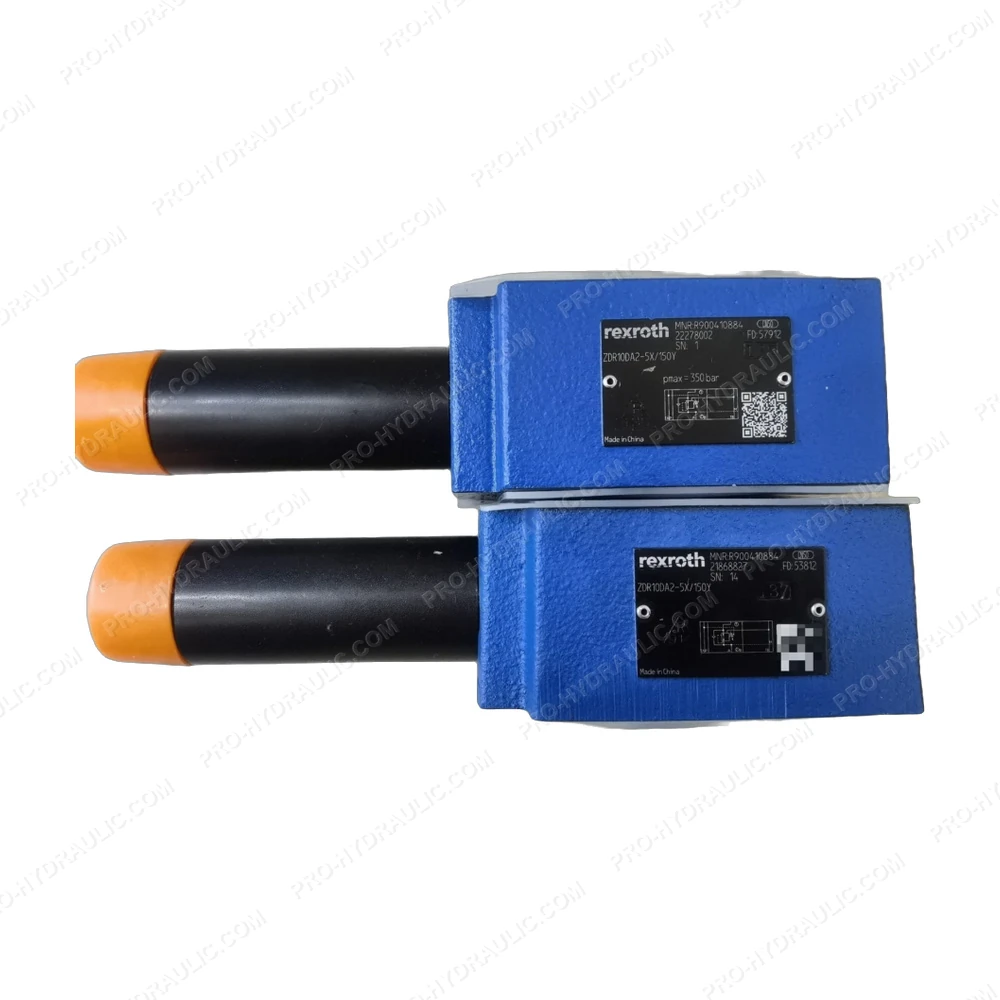

REXROTH ZDR10DA2-5X/150Y / R900410884 Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH ZDR10DA2-5X/150Y / R900410884 Pressure Reducing Valve. This German-made hydraulic component features a direct-acting design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
