Product Overview
The Rexroth ZDR10DP2-56/210YM (Material No. R900410876) is a direct-operated, pilot-assisted pressure reducing valve from the proven ZDR10 series, designed to maintain a constant reduced outlet pressure regardless of fluctuations in inlet pressure or changes in flow demand. As a sandwich plate (module) valve conforming to ISO 4401 / DIN 24340 size 10 (NG10 / CETOP 5), it regulates secondary circuit pressure by throttling flow across a precision control spool, with the spring-loaded spool continuously balancing against the adjusted set pressure. The valve is ideally suited for industrial hydraulic systems requiring a stable, reduced pressure branch — such as clamping circuits, pilot pressure supply, and actuator control loops — where downstream pressure must remain independent of main system pressure variations. The “210” designation indicates a pressure adjustment range up to 210 bar, and the “YM” suffix denotes the specific adjustment and seal configuration for this model variant.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Reducing Valve (Pressure Control Valve) |
| Model Designation | ZDR10DP2-56/210YM |
| Material Number | R900410876 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401 size 10) |
| Operating Pressure | Up to 210 bar (secondary/reduced pressure adjustment range) |
| Max. Inlet Pressure | Up to 315 bar (primary side, standard industrial grade) |
| Control Type | Direct-operated spool with spring-loaded pressure adjustment |
| Mounting & Connection | Sandwich plate, ISO 4401 / DIN 24340 NG10 interface |
| Adjustment Element | Set screw / adjustment spindle (YM variant configuration) |
| Hydraulic Fluid | Mineral oil based hydraulic fluid (HL, HLP per DIN 51524) |
Engineering Features & Advantages
- Precision Pressure Regulation: The direct-operated spool design delivers accurate, repeatable reduced pressure control with minimal hysteresis, ensuring stable downstream pressure even under varying flow and inlet pressure conditions.
- Sandwich Plate Construction: Compact NG10 module design allows direct stacking onto directional valve subplates, reducing piping complexity and leakage points in manifold-based systems.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The valve is ideally suited for industrial hydraulic systems requiring a stable, reduced pressure branch — such as clamping circuits, pilot pressure supply, and actuator control loops — where downstream pressure must remain independent of main system pressure variations.
PRODUCT IMAGES

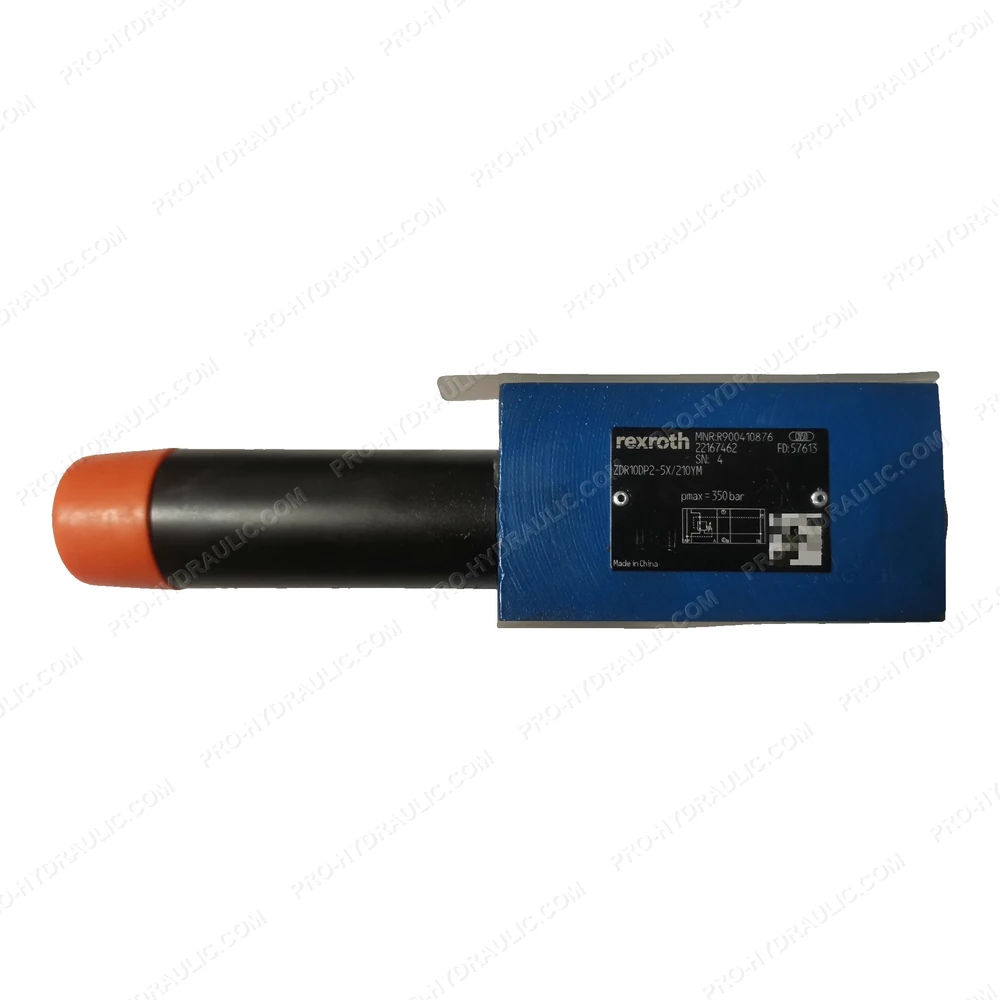

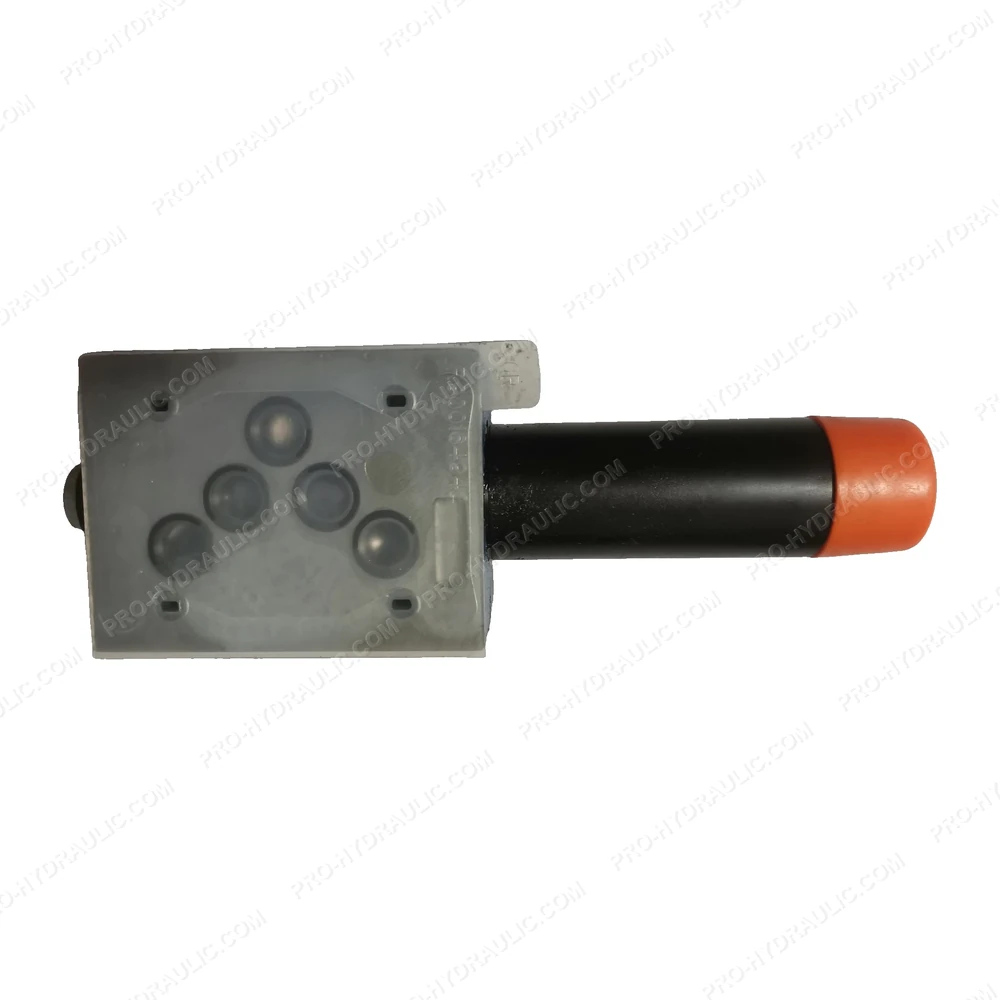

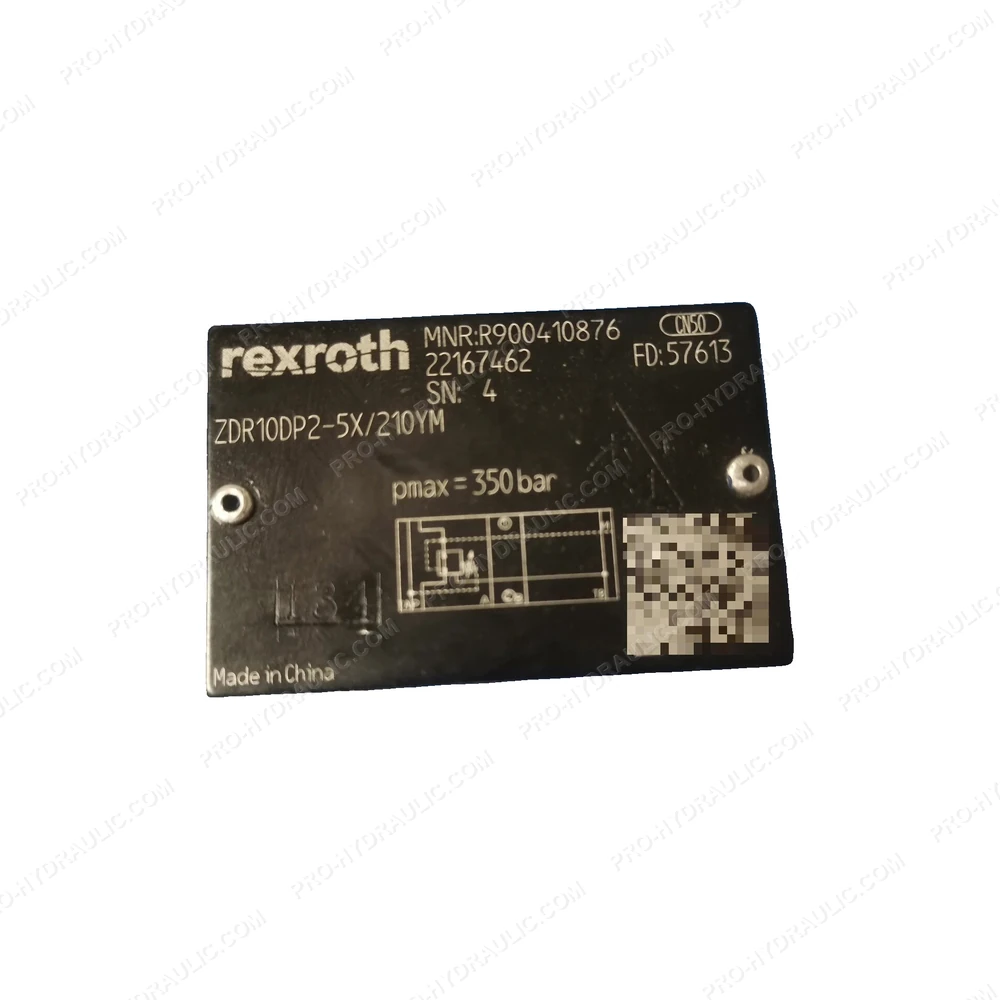

REXROTH ZDR10DP2-56/210YM / R900410876 Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH ZDR10DP2-56/210YM / R900410876 Pressure Reducing Valve. This Germany-made hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
