Product Overview
The Rexroth ZDR6DA2-4X/150YM is a direct-operated, three-way pressure reducing valve from the proven ZDR6 series (Series 4X), designed to maintain a constant reduced outlet pressure regardless of fluctuations in the inlet (primary) pressure or changes in flow demand. As a three-way design, it not only reduces pressure but also provides secondary-side pressure relief by venting excess pressure to the tank port, ensuring stable downstream pressure regulation in demanding hydraulic circuits. The valve is manufactured by Bosch Rexroth, a global benchmark in industrial hydraulics, and is widely deployed as a precision pressure control component in machine tools, presses, injection molding equipment, and general industrial power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Pressure Control Valve (Pressure Reducing Valve) |
| Model Designation | ZDR6DA2-4X/150YM |
| Series | ZDR6, Series 4X (Size 6 / NG6, CETOP 3 interface) |
| Valve Function | Three-way pressure reducing valve, direct-operated with pressure relief on secondary side |
| Pressure Adjustment | Adjustable via set screw (DA2 adjustment type), up to 150 bar secondary pressure |
| Operating Pressure | Standard Industrial Grade (up to 150 bar regulated outlet) |
| Mounting & Connection | Subplate mounting, ISO 4401 / CETOP 3 / NG6 interface |
| Seal Material | NBR (YM seal variant) — suitable for mineral oil based hydraulic fluids |
Engineering Features & Advantages
- Precision Pressure Regulation: The direct-operated spool design delivers accurate, repeatable reduced pressure control with minimal hysteresis, protecting sensitive downstream actuators and circuits from pressure spikes.
- Three-Way Relief Function: In addition to reducing inlet pressure, the valve relieves excess secondary-side pressure to the tank, preventing pressure build-up during load changes or thermal expansion.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust housing and hardened internal components for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement on CETOP 3 / NG6 subplates without modification.
Typical Industrial Applications
The Rexroth ZDR6DA2-4X/150YM is commonly specified in plastic injection molding machines, metallurgical and hydraulic presses, CNC machine tools, and general industrial power units where a stable, reduced secondary pressure is required for clamping, positioning, or pilot circuits. Its three-way relief capability also makes it suitable for accumulator charging circuits and systems subject to varying load-induced pressure fluctuations.
PRODUCT IMAGES

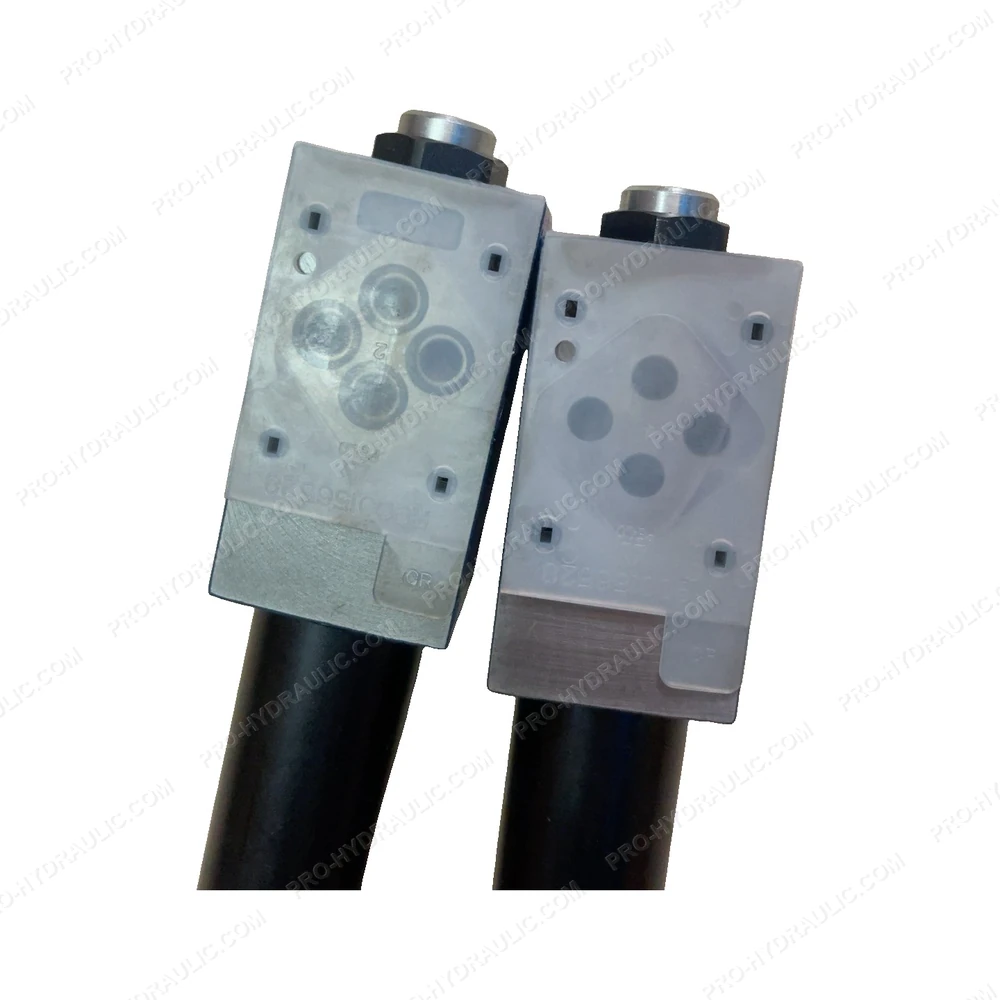

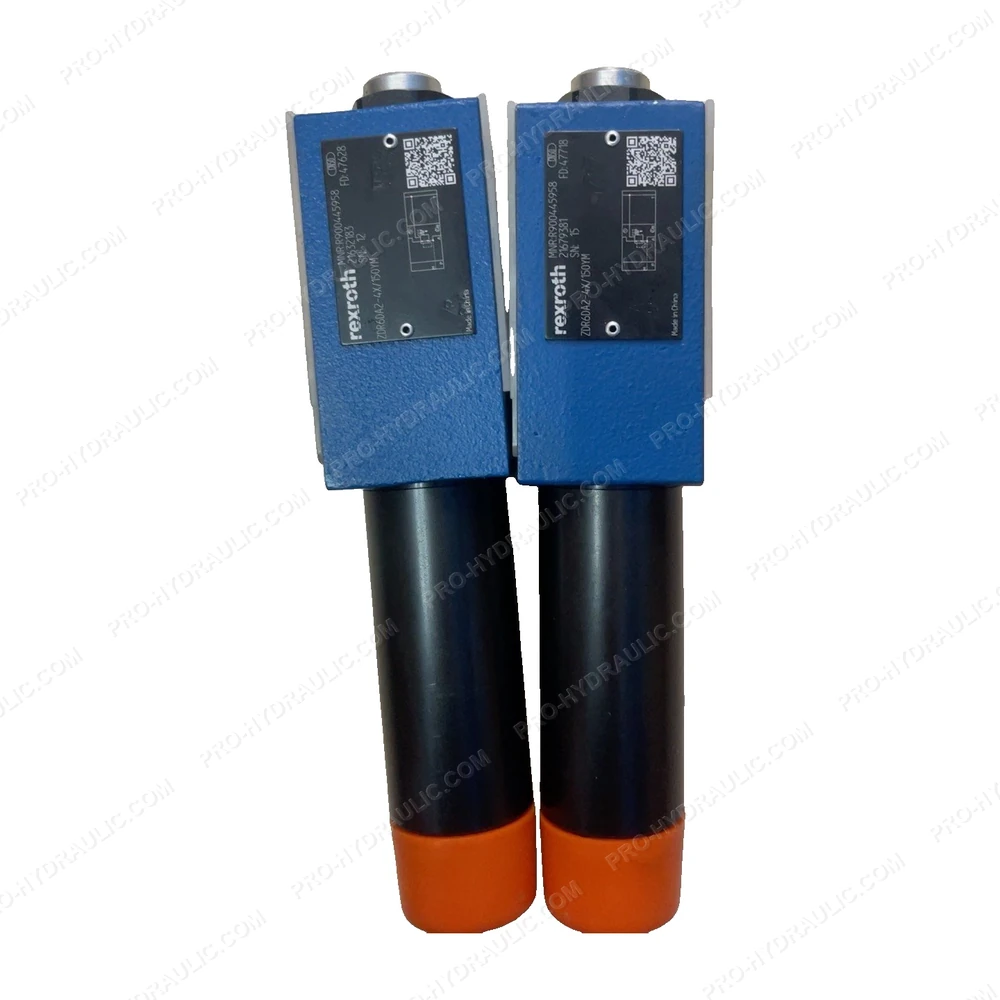

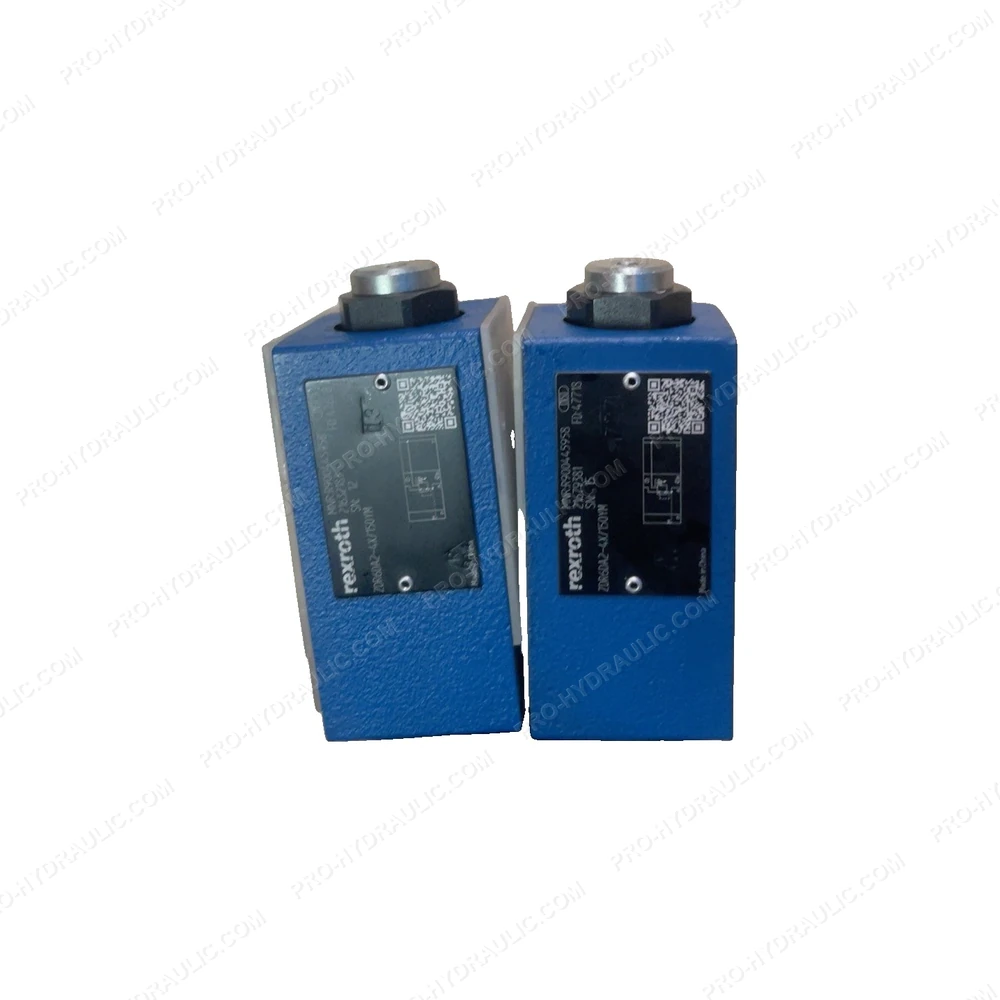

REXROTH ZDR6DA2-4X/150YM Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH ZDR6DA2-4X/150YM Pressure Relief Valve. This Germany-made hydraulic component features a direct-acting design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
