Product Overview
The Rexroth ZDRE6VP2-12/210MG24N9K4M (material number R901252630) is a pilot-operated proportional pressure reducing valve from the Bosch Rexroth ZDRE series, size 6 (NG6 / CETOP 3). It is designed to reduce a system supply pressure to a steplessly adjustable secondary pressure at port A, proportional to the electrical command signal applied to its proportional solenoid. The valve operates on a proven pilot-operated, three-way pressure reducing principle: the main spool is positioned by the pilot stage, which is controlled by a proportional solenoid with central spring return, while an integrated pressure compensator maintains the set outlet pressure independent of flow and inlet pressure fluctuations. This makes the ZDRE6VP2 ideally suited for applications requiring precise, electrically modulated pressure control in industrial hydraulic circuits, such as clamping, force control, and pressure-regulated actuation sequences.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Reducing Valve (pilot-operated, 3-way) |
| Model Designation | ZDRE6VP2-12/210MG24N9K4M |
| Material Number | R901252630 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Maximum Secondary Pressure | 210 bar (adjustment range, per model code “210”) |
| Solenoid Voltage | 24 V DC (MG24 proportional solenoid) |
| Electrical Connection | Connector per DIN EN 175301-803 (K4M) |
| Operating Pressure | Standard Industrial Grade (up to rated 210 bar secondary) |
| Mounting & Connection | Subplate mounting, ISO 4401-03 / CETOP 3 interface |
| Control Principle | Proportional solenoid with central spring return, pilot-operated main stage |
Engineering Features & Advantages
- Precision Proportional Control: Stepless pressure adjustment proportional to the electrical command signal, enabling accurate, repeatable pressure regulation in closed-loop and open-loop industrial circuits.
- Load-Independent Pressure Regulation: The pilot-operated, three-way design with integrated pressure compensation maintains the set outlet pressure largely independent of flow rate and inlet pressure variations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
This makes the ZDRE6VP2 ideally suited for applications requiring precise, electrically modulated pressure control in industrial hydraulic circuits, such as clamping, force control, and pressure-regulated actuation sequences.
PRODUCT IMAGES

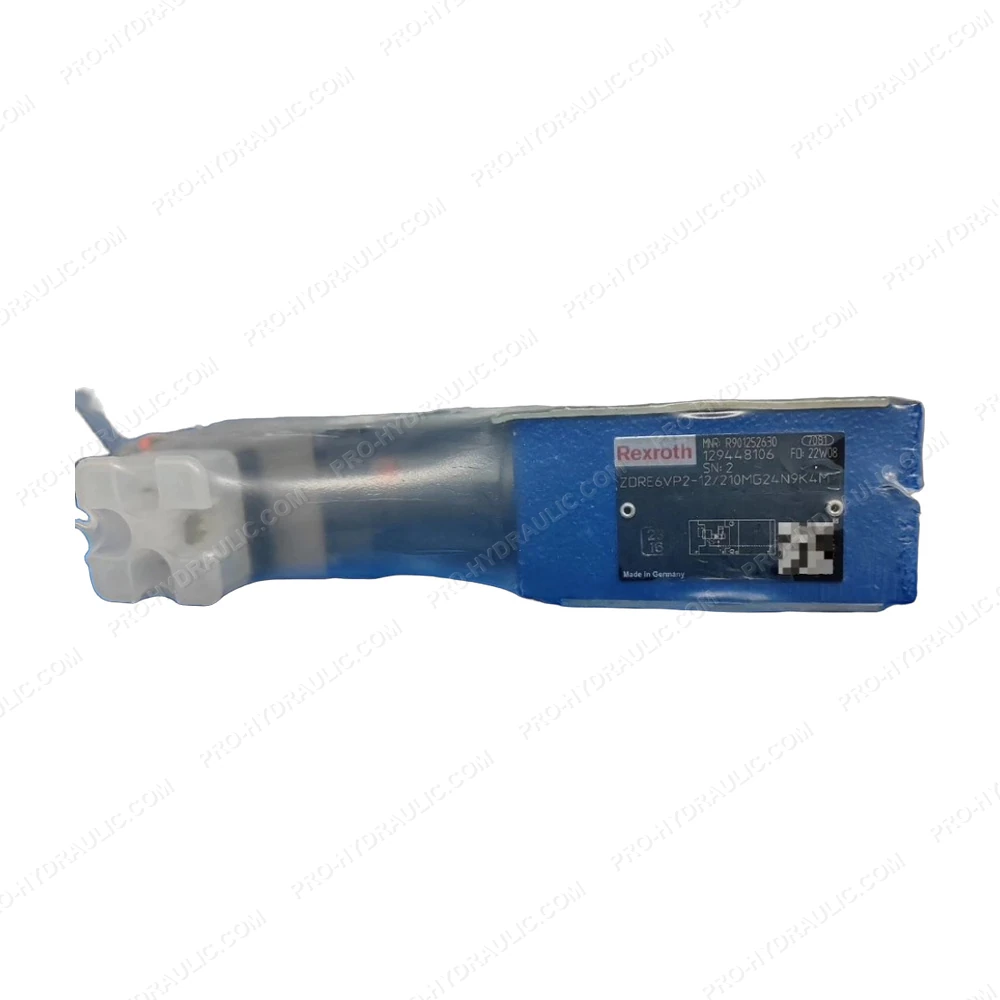

Rexroth ZDRE6VP2-12/210MG24N9K4M / R901252630 Proportional Pressure Reducing Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth ZDRE6VP2-12/210MG24N9K4M / R901252630 Proportional Pressure Reducing Valve. This Germany-made 24V DC hydraulic component features a piloted design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
