Product Overview
The Rexroth ZDRY 10 VA6-11/315YV (Material No. 0811145190) is a direct-operated sandwich plate pressure reducing valve designed for precise secondary circuit pressure control in industrial hydraulic systems. Manufactured by Bosch Rexroth, this valve is part of the proven ZDR series and is engineered to maintain a constant reduced outlet pressure regardless of fluctuations in the primary system pressure or flow. The sandwich plate (sandwichplatte) design allows direct stacking between a directional control valve and its subplate, eliminating the need for additional piping and reducing installation footprint. The “YV” designation indicates an integrated pressure relief function on the secondary side, protecting the reduced pressure circuit from overpressure. With a nominal size of NG10 (CETOP 5 / ISO 4401-05) and a maximum primary pressure rating of 315 bar, this valve is ideally suited for demanding industrial applications requiring reliable, repeatable pressure reduction.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Sandwich Plate Pressure Reducing Valve (Pressure Control Valve) |
| Model Designation | ZDRY 10 VA6-11/315YV |
| Material Number | 0811145190 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Maximum Primary Pressure | 315 bar (rated inlet pressure) |
| Secondary Pressure Adjustment | Adjustable via set screw (VA6 adjustment type) |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar primary) |
| Mounting & Connection | Sandwich plate mounting per ISO 4401-05 / CETOP 5 interface |
| Secondary Relief Function | Integrated (YV designation) — protects reduced pressure circuit |
| Hydraulic Fluid | Mineral oil based hydraulic fluid per DIN 51524 |
| Seal Material | NBR (standard); FKM available on request |
Engineering Features & Advantages
- Precision Pressure Reduction: Direct-operated spool design maintains a constant reduced outlet pressure with minimal hysteresis and excellent repeatability, ensuring stable actuator performance in secondary circuits.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a nominal size of NG10 (CETOP 5 / ISO 4401-05) and a maximum primary pressure rating of 315 bar, this valve is ideally suited for demanding industrial applications requiring reliable, repeatable pressure reduction.
PRODUCT IMAGES

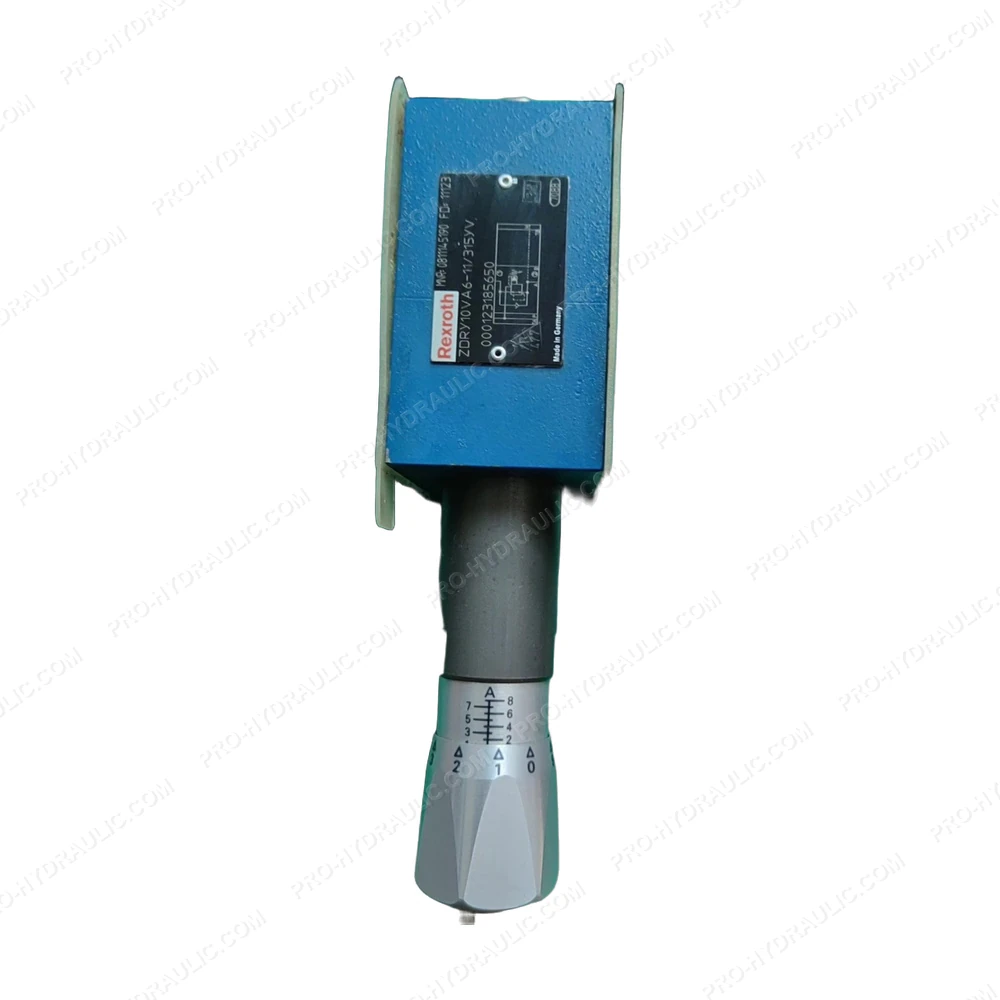

Rexroth ZDRY 10 VA6-11/315YV / 0811145190 Sandwich Plate Pressure Reducing Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth ZDRY 10 VA6-11/315YV / 0811145190 Pressure Reducing Valve. This Germany-made hydraulic component features a direct-operated, spring-loaded design, delivering leak-free, reliable pressure control for heavy-duty industrial systems.
