Product Overview
The Rexroth ZURE 10VP3X-10/250YMG24-8Z4M-6 (Material Number: 0811402174) is a high-performance pilot-operated proportional pressure relief valve engineered for precise, infinitely variable pressure control in demanding industrial hydraulic systems. As part of the Rexroth ZURE series, this valve functions as a direct-operated, solenoid-actuated pressure limiting device that proportionally converts an electrical input signal into a corresponding hydraulic pressure setpoint. Unlike fixed pressure relief valves, the ZURE 10VP3X allows continuous electronic modulation of system pressure, enabling smooth ramping, load-holding, and overload protection within a single integrated component. The valve is designed for subplate mounting in accordance with ISO 6264 and is widely deployed in applications requiring accurate pressure regulation, rapid response, and long-term operational stability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Pilot-Operated) |
| Model Designation | ZURE 10VP3X-10/250YMG24-8Z4M-6 |
| Material Number | 0811402174 |
| Nominal Size | NG10 (Size 10) |
| Maximum Operating Pressure | 250 bar (pressure setting range) |
| Actuation Type | Proportional Solenoid with Integrated Position Feedback |
| Solenoid Voltage | 24 VDC (YMG24 designation) |
| Electrical Connection | Component plug, 6-pin (8Z4M-6 configuration) |
| Mounting & Connection | Subplate mounting per ISO 6264, NG10 interface |
| Control Signal Range | Proportional current control (0–800 mA nominal) |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HLP, HLVP per DIN 51524) |
| Seal Material | NBR (standard industrial) |
Engineering Features & Advantages
- Precision Performance: The proportional pressure relief valve (pilot-operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The valve is designed for subplate mounting in accordance with ISO 6264 and is widely deployed in applications requiring accurate pressure regulation, rapid response, and long-term operational stability.
PRODUCT IMAGES

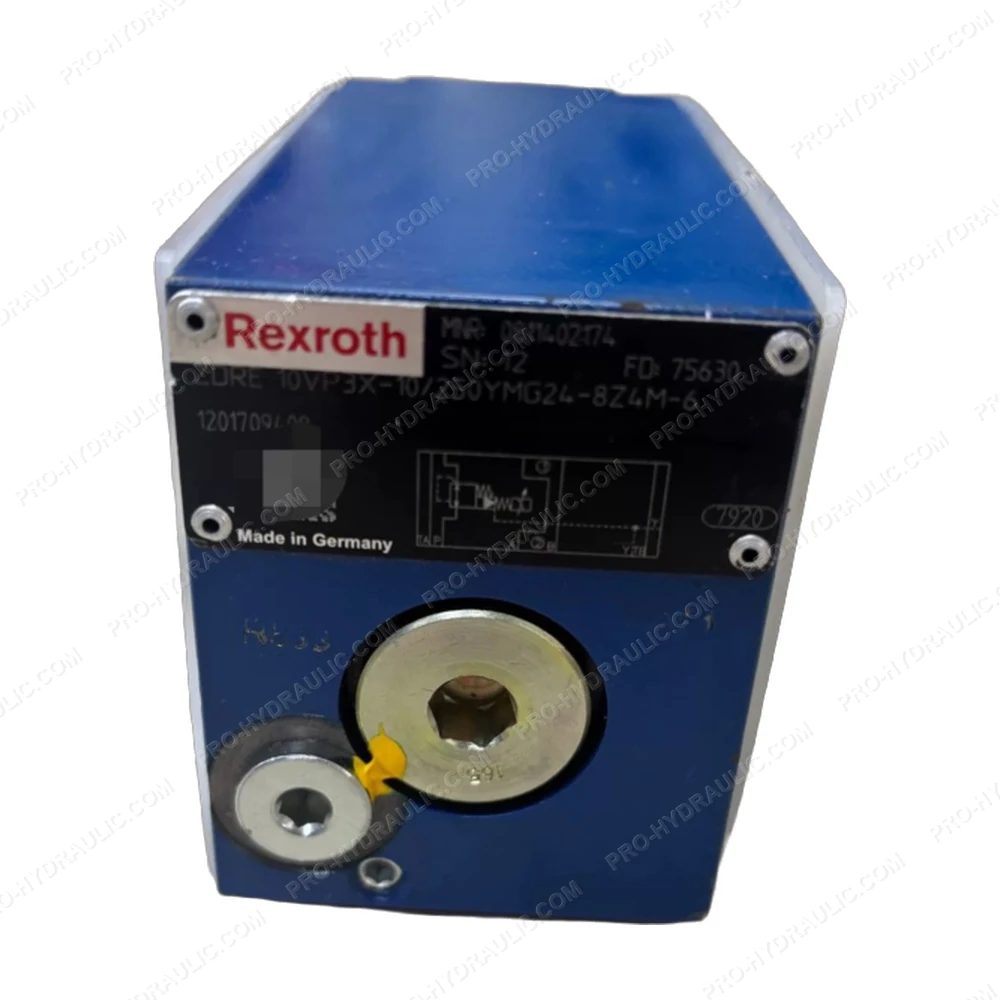

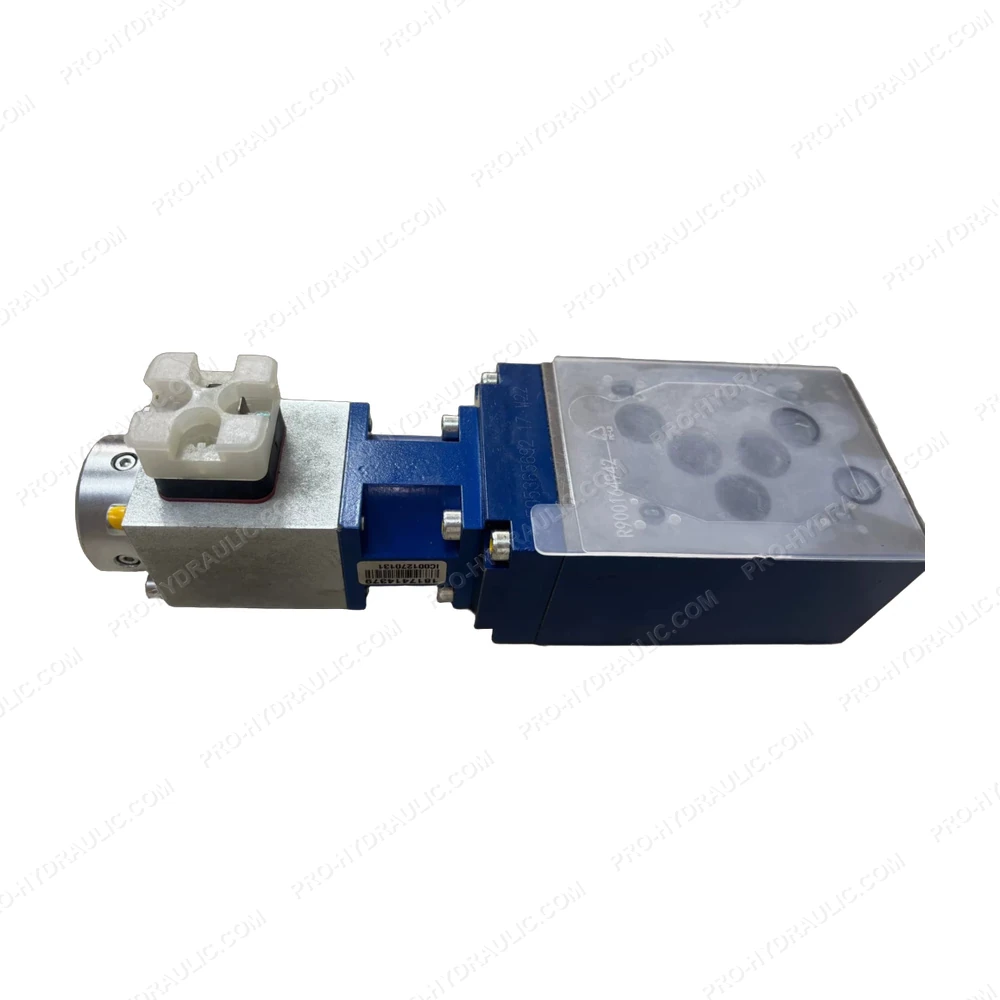

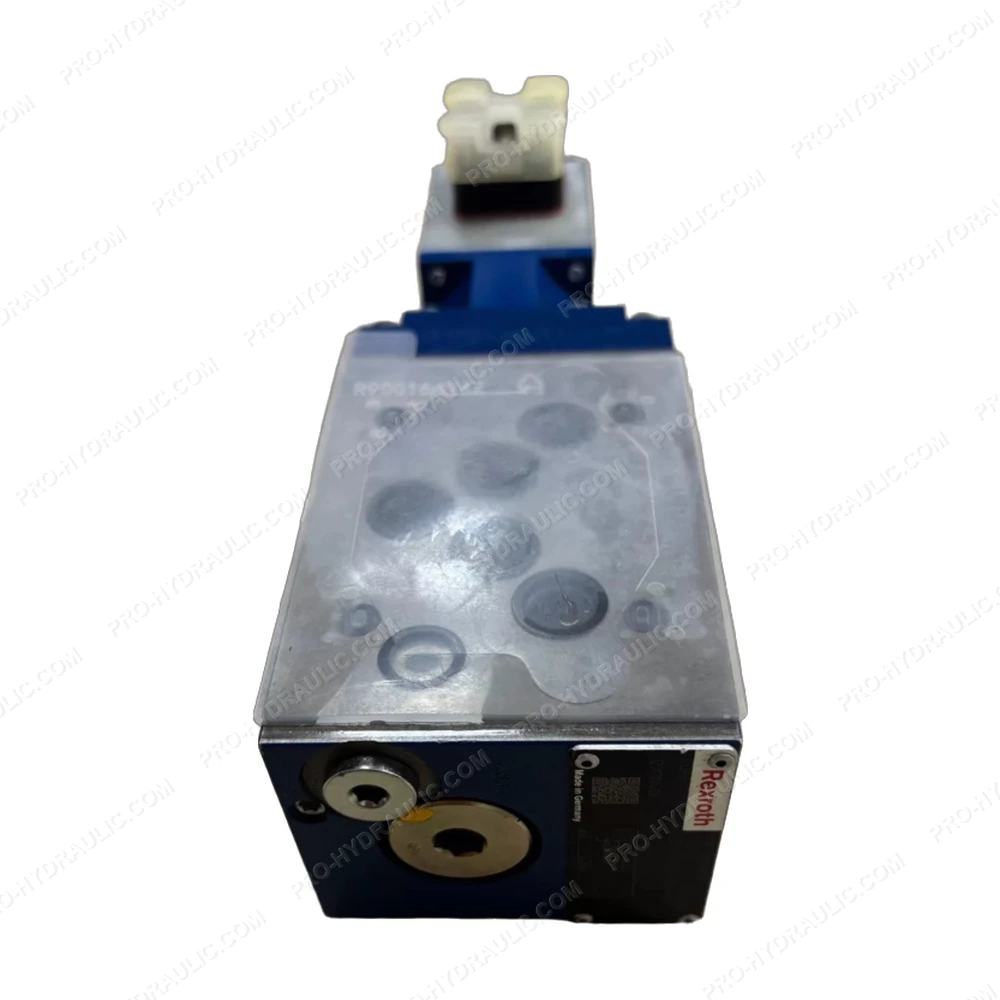

REXROTH ZURE 10VP3X-10/250YMG24-8Z4M-6 / 0811402174 Proportional Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH ZURE 10VP3X-10/250YMG24-8Z4M-6 / 0811402174 Solenoid Operated Directional Spool Valve. This German-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
