Product Overview
The S-LOK SDB1FA-14BBN-R12BBN-S6-TE is a precision-engineered instrumentation double block and bleed (DBB) valve designed for critical isolation, venting, and verification duties in high-purity and high-pressure process systems. Manufactured by S-LOK, a recognized name in instrumentation-grade fluid control components, this valve integrates two independent isolation paths and a single bleed/vent port within a single compact body, eliminating the need for multiple discrete valves and reducing potential leak points. The working principle relies on a dual ball or needle-style isolation mechanism that permits primary and secondary block functions, while the integrated bleed port allows controlled venting of trapped fluid between the two isolation seats. This configuration is essential for safe maintenance, instrument calibration, and positive isolation in hydraulic, pneumatic, and process instrumentation circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Instrumentation Double Block and Bleed Valve |
| Model Designation | SDB1FA-14BBN-R12BBN-S6-TE |
| Operating Pressure | Standard Industrial Grade (Up to 6000 psi / 413 bar depending on seat and end connection) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (1/4 in. and 1/2 in. tube or pipe ends per model code) |
| Valve Configuration | Double block (two isolation valves) with single bleed/vent port |
| Body Material | Stainless Steel 316 / 316L (corrosion-resistant instrumentation grade) |
| Seat / Seal Material | PTFE / PEEK / Graphite (dependent on temperature and media compatibility) |
| Temperature Range | -20 °C to +200 °C (standard); higher with optional seat materials |
| Actuation | Manual (hand-operated bonnet/lever); pneumatic and electric actuation available on request |
Engineering Features & Advantages
- Precision Performance: Dual isolation seats provide verified bubble-tight shutoff, while the integrated bleed port enables safe depressurization and instrument verification without disturbing primary process connections.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust stainless steel body and high-cycle seat design that resists wear, galling, and corrosive media.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including S-LOK tube and pipe end connections, ensuring drop-in replacement without system modification.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original S-LOK standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The S-LOK SDB1FA-14BBN-R12BBN-S6-TE is a precision-engineered instrumentation double block and bleed (DBB) valve designed for critical isolation, venting, and verification duties in high-purity and high-pressure process systems.
PRODUCT IMAGES

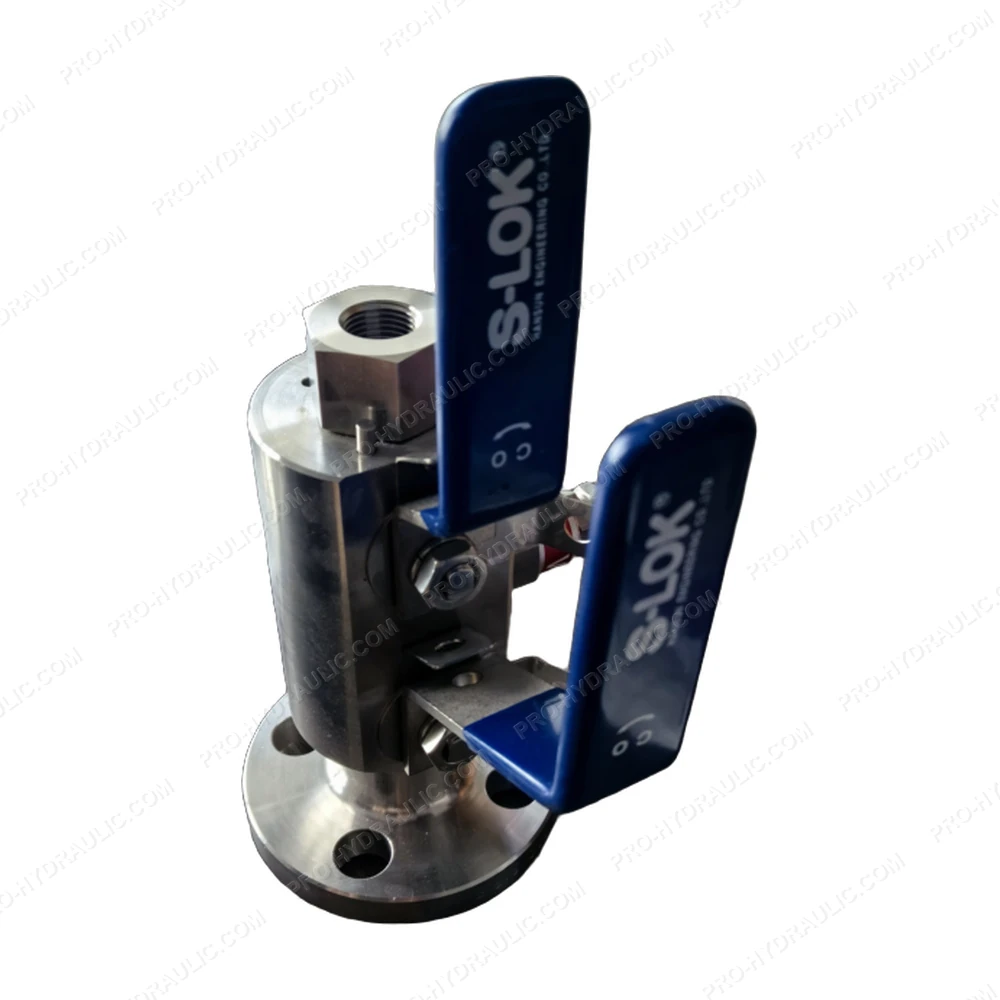

S-LOK SDB1FA-14BBN-R12BBN-S6-TE Instrumentation Double Block and Bleed Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine S-LOK SDB1FA-14BBN-R12BBN-S6-TE Solenoid Directional Valve. This USA-made 12V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
