Product Overview
The SAGINOMIYA SEV-502BXF is a normally closed (NC), direct-acting refrigeration solenoid valve engineered for precise on/off control of refrigerant flow in commercial and industrial refrigeration circuits. Manufactured by Saginomiya, a recognized leader in refrigeration and air conditioning control components, the SEV series utilizes a direct-acting plunger design that permits reliable operation independent of system pressure differential, ensuring positive shut-off even at low pressure conditions. The valve serves as a critical flow control element in liquid line, suction line, and hot gas bypass applications, providing dependable isolation and flow regulation within refrigeration and process cooling systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Refrigeration Solenoid Valve (Direct-Acting, Normally Closed) |
| Model Designation | SEV-502BXF |
| Manufacturer | Saginomiya |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Valve Action | Direct-acting plunger, spring return to closed position |
| Compatible Media | HFC, HCFC, and CFC refrigerants and compatible oils |
Engineering Features & Advantages
- Precision Performance: Direct-acting solenoid mechanism delivers reliable open/close actuation independent of line pressure differential, ensuring consistent flow control across the full operating envelope.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil and seal construction resistant to refrigerant and oil exposure.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without system modification.
- Positive Shut-Off: Normally closed configuration provides fail-safe isolation of refrigerant flow upon de-energization, protecting downstream components.
Typical Industrial Applications
Commonly deployed in commercial refrigeration racks, industrial process cooling systems, cold storage and blast freezing installations, and HVAC chiller circuits. The SEV-502BXF is also suited for liquid line injection, suction line isolation, and hot gas defrost control in food processing, pharmaceutical, and chemical process refrigeration plants.
PRODUCT IMAGES

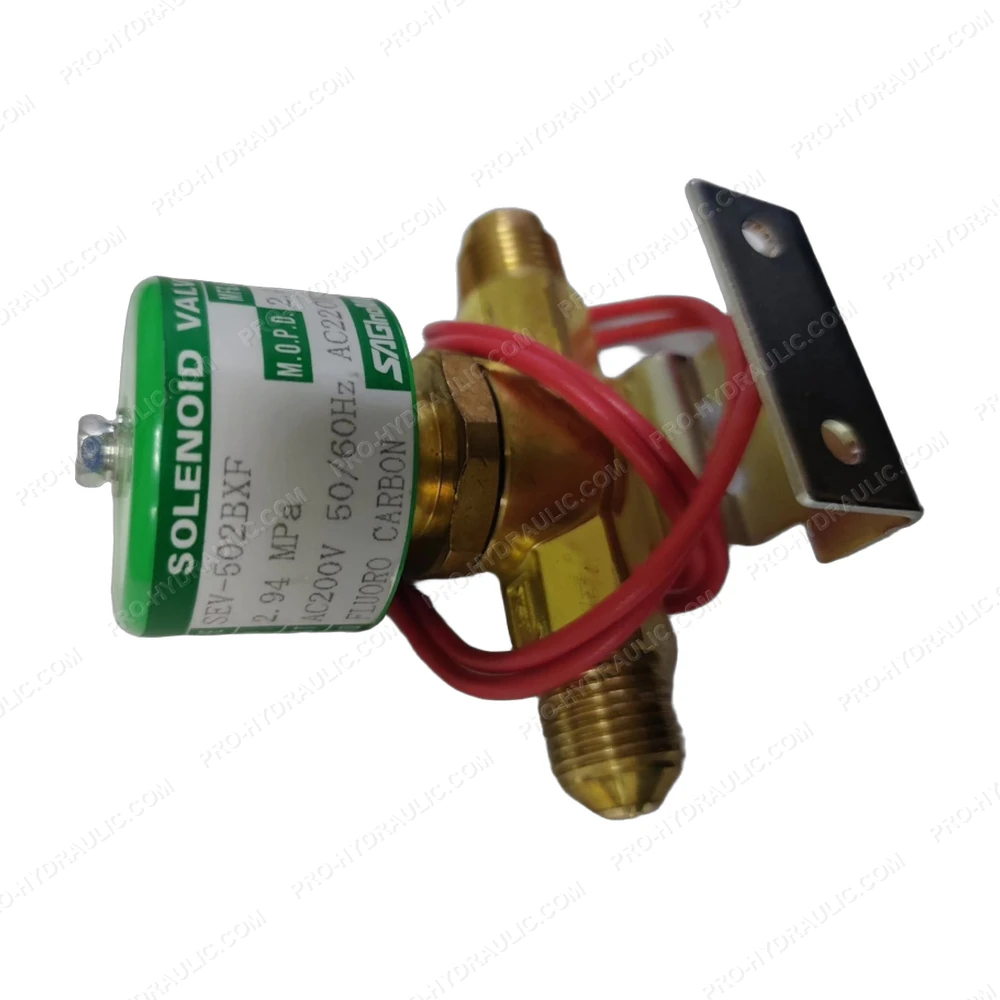

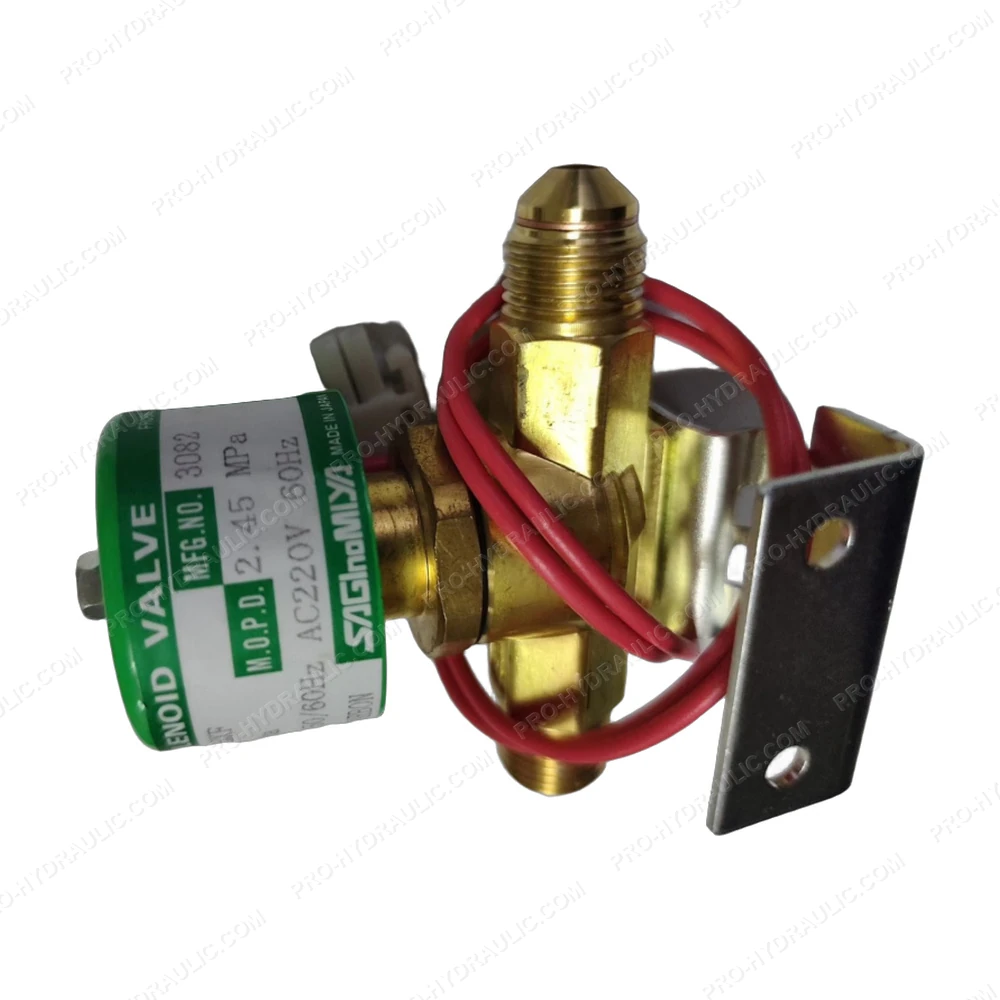

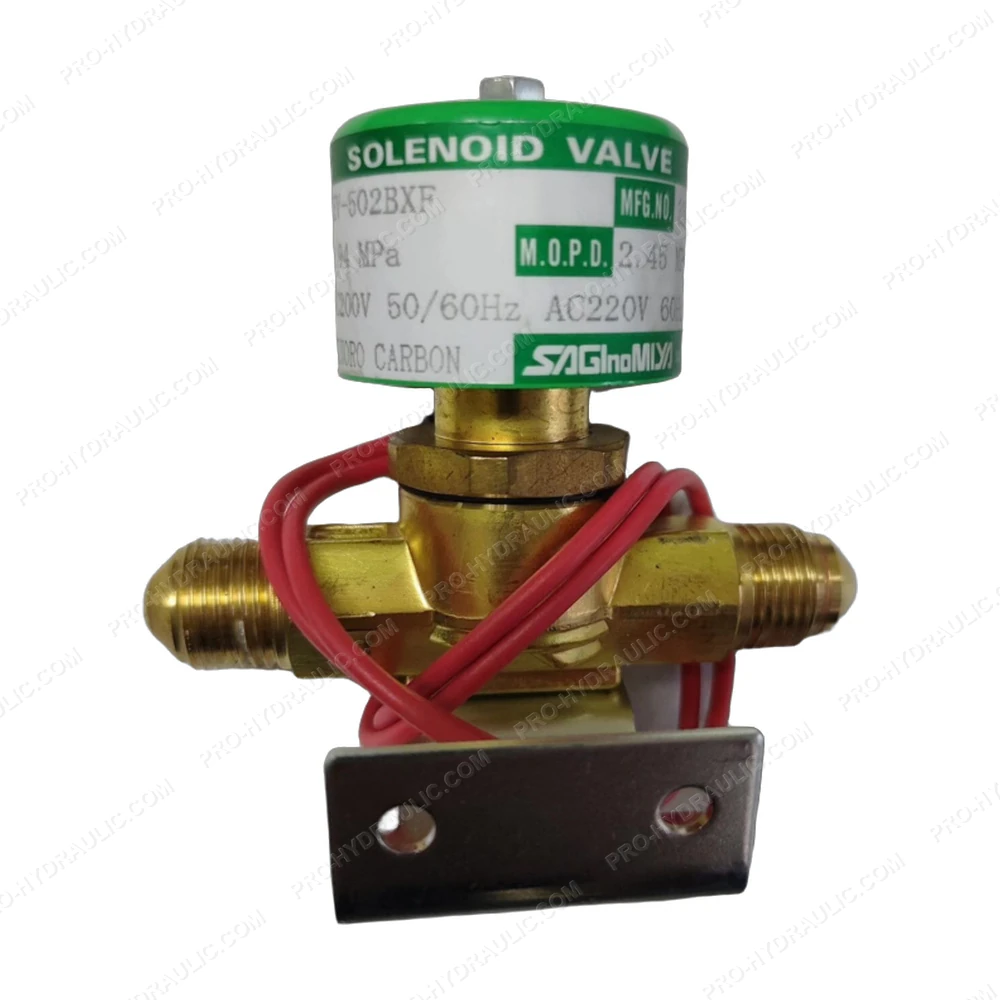

SAGINOMIYA SEV-502BXF Refrigeration Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SAGINOMIYA SEV-502BXF Solenoid Valve. This Japan-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
