Product Overview
The SAMSON 3241 / 3271 / 3730-3 is a high-performance pneumatic globe control valve assembly engineered for precise throttling and on/off control of process fluids in industrial pipelines. The system combines a SAMSON Type 3241 or Type 3271 globe valve body with the Type 3730-3 electropneumatic valve positioner, forming a complete closed-loop control unit. The valve operates on a pneumatic diaphragm actuator principle, where a signal pressure from the positioner modulates the plug position relative to the seat to achieve accurate flow regulation. The Type 3730-3 positioner provides advanced digital communication capabilities, including HART protocol, enabling seamless integration with modern distributed control systems (DCS). This assembly is widely deployed in process industries requiring reliable pressure, temperature, flow, and level control of steam, gases, and liquids.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Globe Control Valve with Electropneumatic Positioner |
| Model Designation | SAMSON 3241 / 3271 / 3730-3 |
| Valve Body Type | Type 3241 (straight-through) / Type 3271 (angle body) |
| Positioner Type | Type 3730-3 Electropneumatic with HART Communication |
| Actuator Type | Pneumatic Diaphragm Actuator (spring-return) |
| Operating Pressure | Standard Industrial Grade (up to PN 40 / Class 300 rated) |
| Supply Air Pressure | 1.4 to 6 bar (20 to 90 psi) |
| Input Signal | 4–20 mA with HART digital communication |
| Mounting & Connection | Flanged per DIN / ANSI, ISO 60534 face-to-face dimensions |
| Characteristic | Linear or equal percentage (selectable) |
| Rangeability | Up to 50:1 |
Engineering Features & Advantages
- Precision Performance: The pneumatic globe control valve with electropneumatic positioner delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original SAMSON specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 1.4 to 6 bar (20 to 90 psi), supporting stable operation across the full working range.
Typical Industrial Applications
This assembly is widely deployed in process industries requiring reliable pressure, temperature, flow, and level control of steam, gases, and liquids.
PRODUCT IMAGES

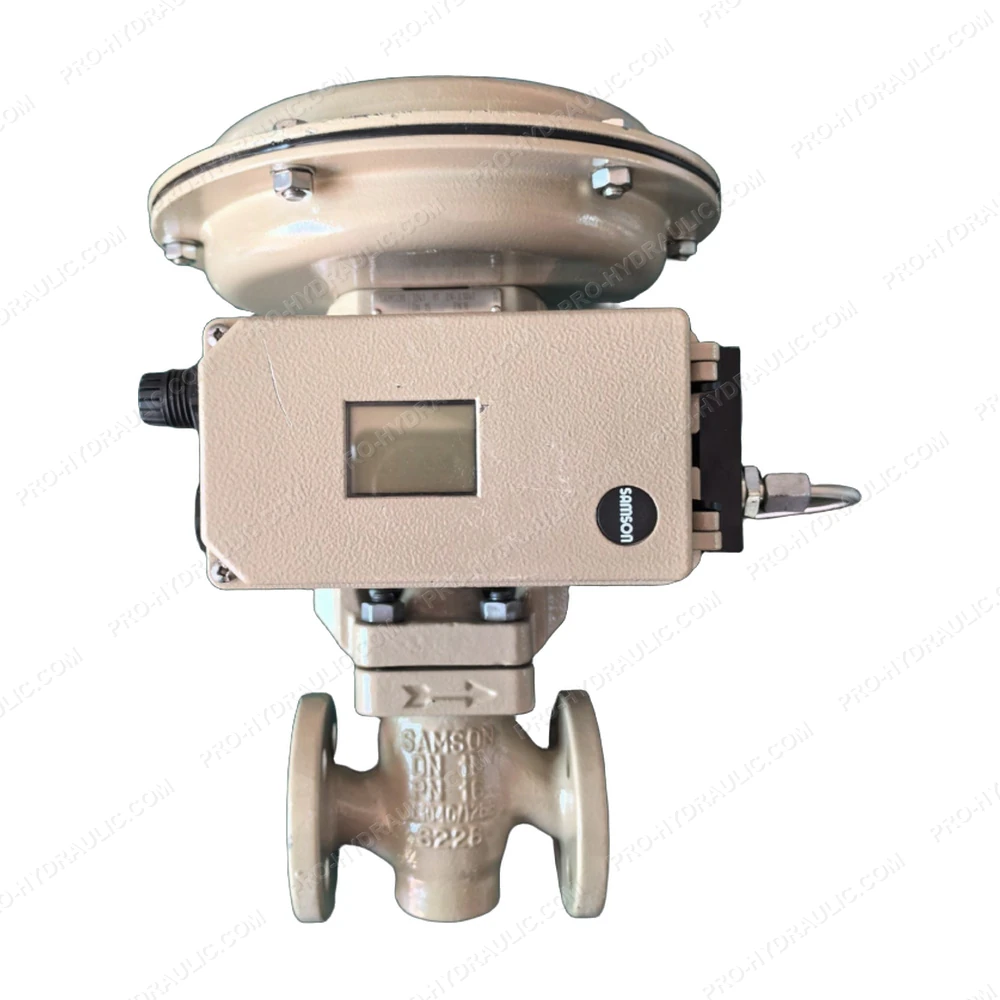

SAMSON 3241 / 3271 / 3730-3 Pneumatic Globe Control Valve with Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SAMSON 3241 / 3271 / 3730-3 Pneumatic Control Valve with Electropneumatic Positioner. This Germany-made 24 VDC hydraulic component features a globe valve with digital positioner, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
