Product Overview
The SAMSON 3241 / 3277 / 3730-2 is a high-precision pneumatic globe control valve assembly engineered for demanding process control applications. Manufactured by SAMSON AG, a global leader in control valve technology, this assembly combines a Type 3241 globe valve body, a Type 3277 pneumatic diaphragm actuator, and a Type 3730-2 digital electropneumatic positioner. The valve operates on a linear globe valve principle, where a plug stem modulates flow through a contoured seat to precisely regulate pressure, flow rate, temperature, or level in industrial process loops. The integrated Type 3730-2 positioner provides accurate stem positioning via a 4–20 mA input signal, ensuring tight control, fast response, and reliable performance in continuous process operations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Globe Control Valve with Positioner |
| Model Designation | SAMSON 3241 / 3277 / 3730-2 |
| Valve Body Type | Type 3241 Globe Valve, straight-through or angle pattern |
| Actuator Type | Type 3277 Pneumatic Diaphragm Actuator (spring-return) |
| Positioner Type | Type 3730-2 Digital Electropneumatic Positioner |
| Input Signal | 4–20 mA (HART communication compatible) |
| Supply Air Pressure | Up to 6 bar (standard industrial instrument air) |
| Operating Pressure | Standard Industrial Grade (dependent on body rating and trim selection) |
| Characteristic | Linear or equal-percentage plug characteristic |
| Mounting & Connection | Flanged (DIN / ANSI), threaded, or welded ends per manufacturer interface |
Engineering Features & Advantages
- Precision Performance: The Type 3730-2 digital positioner delivers high-resolution stem positioning with minimal dead band, ensuring accurate flow control and rapid response to process deviations.
- Integrated Diagnostics: The 3730-2 positioner supports HART communication and advanced valve diagnostics, enabling predictive maintenance and reduced downtime.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust diaphragm actuator and durable globe valve body construction.
- Direct Fit Replacement: Precision-manufactured to original SAMSON specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The valve operates on a linear globe valve principle, where a plug stem modulates flow through a contoured seat to precisely regulate pressure, flow rate, temperature, or level in industrial process loops.
PRODUCT IMAGES

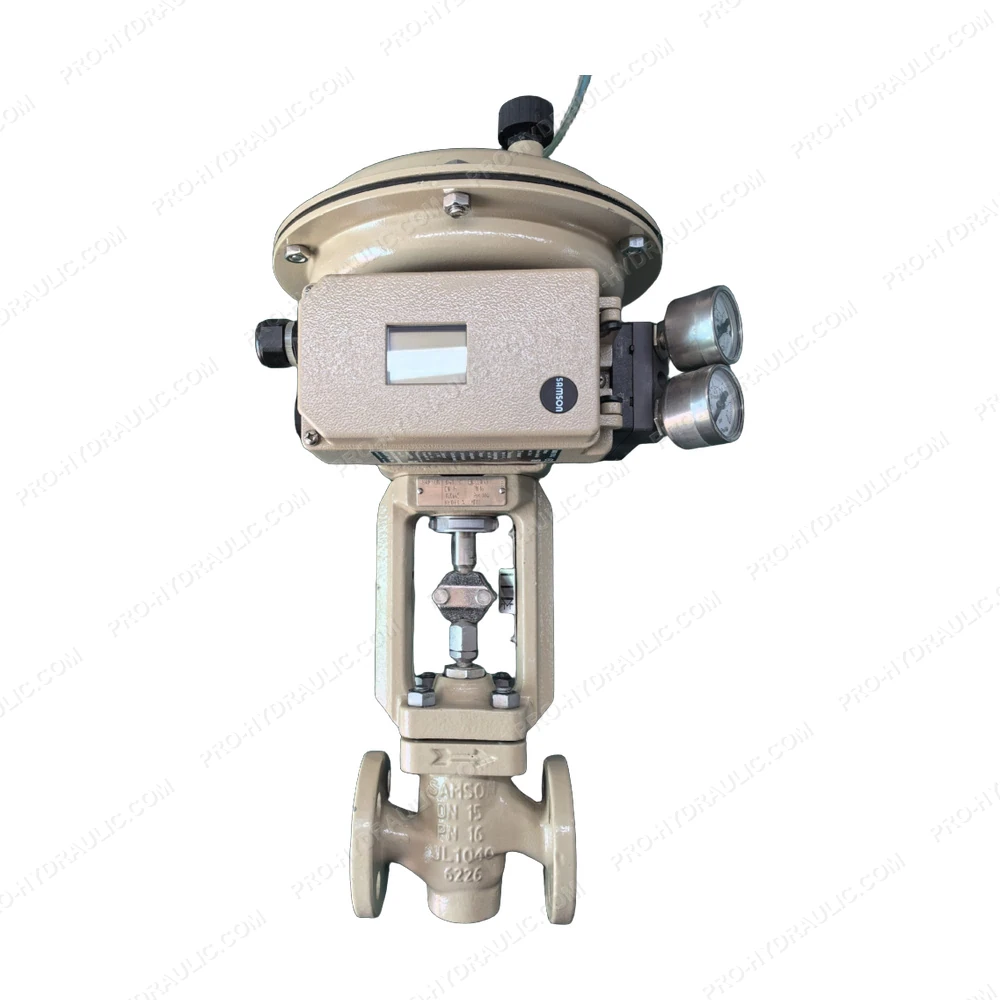

SAMSON 3241 / 3277 / 3730-2 Pneumatic Globe Control Valve with Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine SAMSON 3241 / 3277 / 3730-2 Pneumatic Control Valve with Positioner. This Germany-made 24 V DC hydraulic component features a globe valve with integrated positioner, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
